High quality Tungsten Carbide CCMT060204-HM YBC251 Insert Titanium Coated Carbide Cutter
High quality Tungsten Carbide CCMT060204-HM YBC251 Insert Titanium Coated Carbide Cutter
Features Gallery Product Description Request A Quote
Basic Infomation
Place of Origin: Zhuzhou--Carbide City
Brand Name: Whitout Brand
Certification: ISO9001, SGS
Model Number: As your requirements
High Light:

tungsten cutting tools


tungsten carbide cutting tools

Payment & Shipping Terms
Packaging Details: 1PCS in a plastic tube, 10 PCS per group
Delivery Time: 15-25 work days
Supply Ability: 50000pcs/Month
Material: Carbide
Coating: TiAIN
Type: Tungsten Carbide Milling Tool For Steel
Hrc: 45/55/60/65 HRC
Usage: General High Speed Cutting,metal Processing
Application: Milling Machining,Stainless Steel Cast Iron Allumimum Copper,steel And Aluminum,CNC Process
Suitable For: Carbon Steel,Stainless Steel,copper,Aluminum,Cast Iron
Precision: High Precision
Processing Type: Metal Cutting Tools
Machine Type: Milling Maching
Controlling Mode: CNC Tooling System,CNC
Delivery Time: 15-25 Days
Product Description


Model: CCMT09T304 VP15TF
Material: Metal Ceramics
Size: 14mm
Quantity: 10pcs
Suitable For: Normal processing stainless steel and ordinary, such as steel 45 steel, A3 steel, stainless steel and other soft materials 201,304

-Blade has high strength, high toughness, stable and durable.
-For high hardness materials and cast iron.
-Metal surface finishing, good wear resistance.
-Mainly used for general steel machining.

Packing Included:
10pcs x Blade



Product Show:

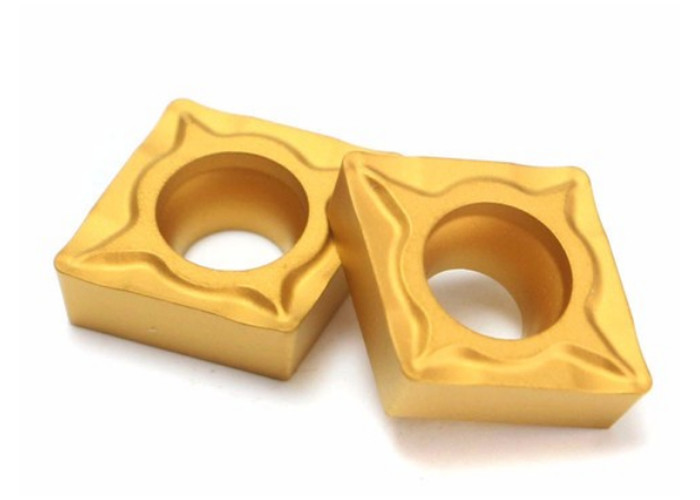

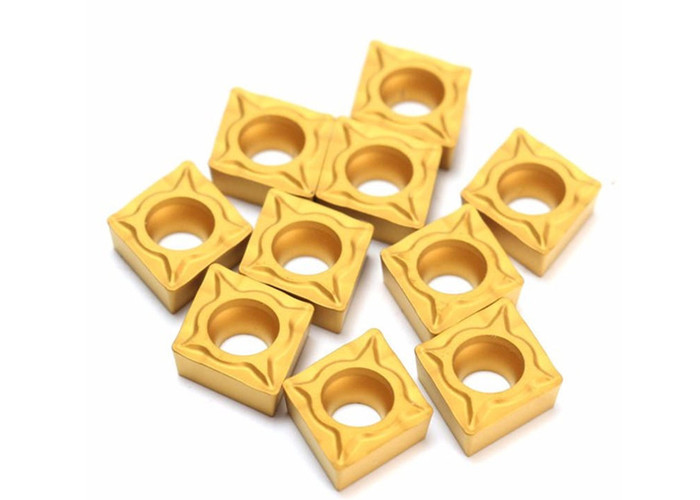

High quality Tungsten Carbide CCMT060204-HM YBC251 Insert Titanium Coated Carbide Cutter 0

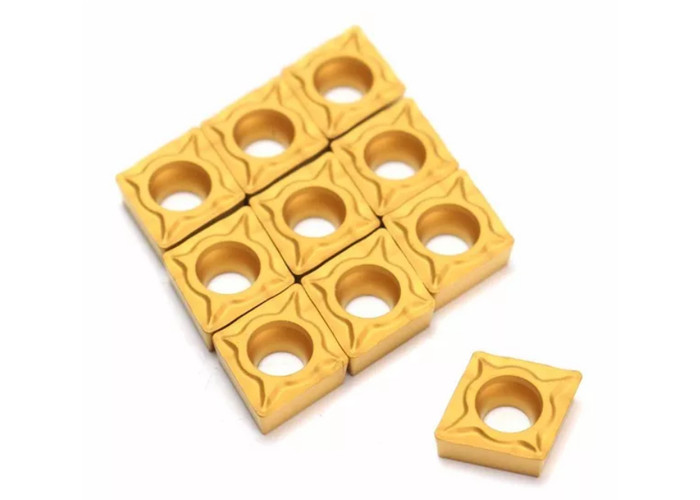

High quality Tungsten Carbide CCMT060204-HM YBC251 Insert Titanium Coated Carbide Cutter 1

Product Size:




TYPE Dimension ( mm )
L I.C S d r
60202 21.5 6.4 6.35 2.38 2.8 0.2
60204 21.51 6.4 6.35 2.38 2.8 0.4
09T304 32.51 9.7 9.525 3.97 4.4 0.4
09T308 32.52 9.7 9.525 3.97 4.4 0.8
120404 431 12.9 12.7 4.76 5.5 0.4
120408 432 12.9 12.7 4.76 5.5 0.8

Material properties:

The cemented carbide blade is mainly made of the whole cemented carbide as the base material, which is processed through a number of production processes.

Cemented carbide, also known as tungsten steel, is made of high-quality tungsten carbide + cobalt powder by pressing and sintering after mixing the formula. It has high hardness, high strength, high wear resistance and high elastic modulus. It belongs to powder metallurgy industry. As the teeth of modern industry, cemented carbide cutting tools play a fundamental role in promoting the development of manufacturing industry.

The cemented carbides can be divided into ordinary cemented carbides, fine-grained cemented carbides and sub-fine and ultra-fine-grained cemented carbides according to the grain size, and the newly developed double-crystal cemented carbides. According to the main chemical composition, it can be divided into tungsten carbide-based cemented carbide and titanium carbide-based cemented carbide. Tungsten carbide-based cemented carbides include tungsten-cobalt (YG), tungsten-cobalt-titanium (YT) and rare carbides (YW). They have their own advantages and disadvantages. The main components are tungsten carbide (WC), titanium carbide (Tic), niobium carbide (NbC), and other commonly used metal bonding phases are Co. TiC-based cemented carbide is a kind of cemented carbide with Tic as its main component. The commonly used metal bonding phases are Mo and Ni. Cemented carbide has the characteristics of high hardness (86-93 HRA, equivalent to 69-81 HRC), second only to diamond, good thermal hardness (up to 900-1000 C, maintaining 60 HRC), high flexural strength (MPa5100), good impact toughness and chemical inertia with high corrosion resistance.



Grewin carbide waiting for your kindly iqnuiry.
