H6 Precision Cemented Carbide Rods Tools For End Mills Router Bits
10pcs
MOQ
H6 Precision Cemented Carbide Rods Tools For End Mills Router Bits
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: Zhuzhou--Carbide City
Brand Name: Whitout Brand
Certification: ISO9001, SGS
Model Number: As your requirements
High Light:

Co Cemented Carbide Rods

,

WC Cemented Carbide Rods

,

H6 precision carbide tools

Payment & Shipping Terms
Packaging Details: 1PCS in a plastic tube, 10 PCS per group
Delivery Time: 15-25 work days
Payment Terms: T/T, PAYPAL, WESTERN UNION
Supply Ability: 50000pcs/Month
Specifications
Type: Cemented Tungsten Carbide Rods
Material: Tungsten Carbide WC+Co
Application: End Mills/drills/reamers/pcb Tools
Grade: YL10.2,YG10X,YG6
Surface: Polished Or Unground
Size: OEM Accepted,Drawing Provided,Customized
Usage: For Carbide Endmills/ Router Bits/ Drills
Diameter: From 1mm To 32mm
Commodity Name: Tungsten Carbide Rod
Tolerance: H6
Grades: YG6X,YG10X,yl10.2 Etc
Hardness: 91.5- 92.5 HRA
Product Description

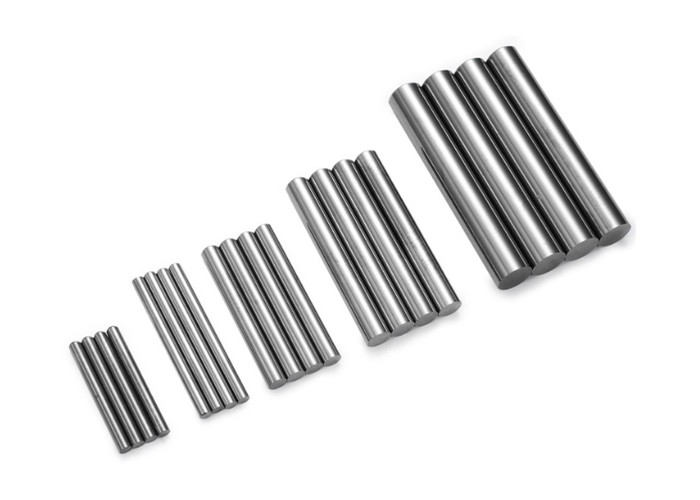

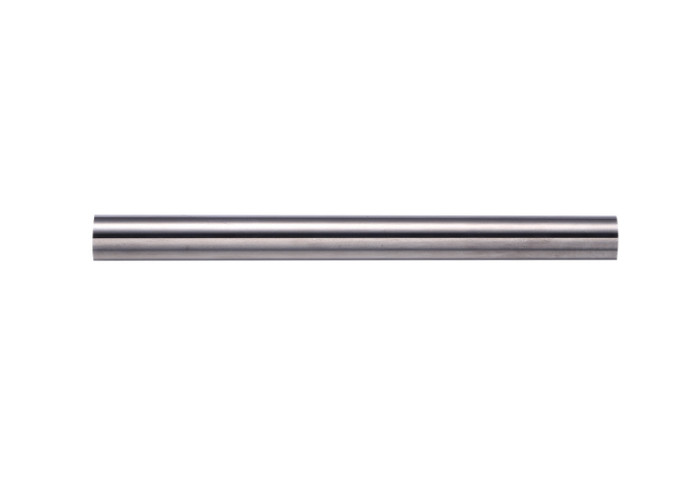

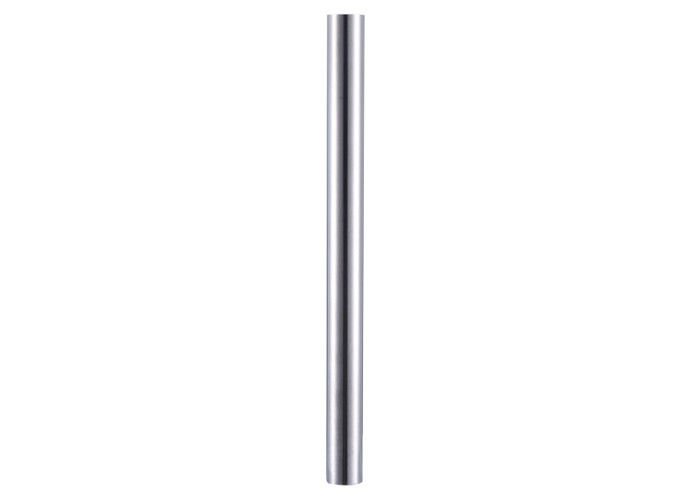

  • H6 Precision Cemented Carbide Rods For Making Carbide End Mills / Router Bits
  • Standard sizes: Dia.3,4,5,6,8,10,12,14,16,18,20x330mmL
  • Surface: precision grounded in h6 tolerance or customized
  • Grade: ISO K10, K20, K30, K40/YG6, YG6X, YG8, YL10.2, YU12
  • Application: for endmill, drills, reamers making
  • Product description: We are direct manufacturer for precision solid carbide rods in h6 or other required tolerance with strict control of straightness, roundness and run-out.

Solid carbide rod is mainly made of tungsten carbide, binder metal cobalt and some other functional ingredients added as formula requires, through materials mixture, extruding, pre-sinter, shape modification producing process then sintered in low pressure. With characters of high hardness, high strength, chemical stable, low expansion coefficient, electric and heat conducting, the sintered tungsten carbide rods are widely applied in industrial manufacture area, for example, to make micro drill in PCB industry, electrode bar in optical community industry, drill, drill stock, tip, pusher, wear resistant precision parts, CNC reamer and blades with coolant hole in machining industry.

Dia. Ø mm Tolerance.(mm) Length(mm) Tol.(mm) Dia.Ø(mm) Tolerance.(mm) Length(mm) Tol.(mm)
2.0 +0.30/+0.15 330 1.5 16.5 +0.8/+0.3 330 1.5
2.5 +0.30/+0.15 330 1.5 17.0 +0.8/+0.3 330 1.5
3.0 +0.50/+0.30 330 1.5 17.5 +0.8/+0.3 330 1.5
3.5 +0.50/+0.30 330 1.5 18.0 +0.8/+0.3 330 1.5
4.0 +0.50/+0.30 330 1.5 18.5 +0.8/+0.3 330 1.5
4.5 +0.50/+0.30 330 1.5 19.0 +0.8/+0.3 330 1.5
5.0 +0.50/+0.30 330 1.5 19.5 +0.8/+0.3 330 1.5
5.5 +0.50/+0.30 330 1.5 20.0 +0.8/+0.3 330 1.5
6.0 +0.50/+0.30 330 1.5 20.5 +0.8/+0.3 330 1.5
6.5 +0.50/+0.30 330 1.5 21.0 +0.8/+0.3 330 1.5
7.0 +0.50/+0.30 330 1.5 21.5 +0.8/+0.3 330 1.5
7.5 +0.50/+0.30 330 1.5 22.0 +0.8/+0.3 330 1.5
8.0 +0.50/+0.30 330 1.5 22.5 +0.8/+0.3 330 1.5
8.5 +0.50/+0.30 330 1.5 23.0 +0.8/+0.3 330 1.5
9.0 +0.60/+0.30 330 1.5 23.5 +0.8/+0.3 330 1.5
9.5 +0.60/+0.30 330 1.5 24.0 +0.8/+0.3 330 1.5
10.0 +0.60/+0.30 330 1.5 24.5 +0.8/+0.3 330 1.5
10.5 +0.60/+0.30 330 1.5 25.0 +0.8/+0.3 330 1.5
11.0 +0.60/+0.30 330 1.5 25.5 +0.8/+0.3 330 1.5
11.5 +0.60/+0.30 330 1.5 26.0 +0.8/+0.3 330 1.5
12.0 +0.60/+0.30 330 1.5 26.5 +0.8/+0.3 330 1.5
12.5 +0.60/+0.30 330 1.5 27.0 +0.8/+0.3 330 1.5
13.0 +0.60/+0.30 330 1.5 27.5 +0.8/+0.3 330 1.5
13.5 +0.60/+0.30 330 1.5 28.0 +0.8/+0.3 330 1.5
14.0 +0.70/+0.30 330 1.5 28.5 +0.8/+0.3 330 1.5
14.5 +0.70/+0.30 330 1.5 29.0 +0.8/+0.3 330 1.5



H6 Precision Cemented Carbide Rods Tools For End Mills Router Bits 0H6 Precision Cemented Carbide Rods Tools For End Mills Router Bits 1
