Thread milling cutters. In thread milling, the thread is produced by doing a helical interpolation. The cuttingprocess enables the production of threads from a nominal diameter of 1 mm (single profile), with multi-profile from M2. Some tools are also equipped with countersinkers and/or face cutters.
Size list
M3*0.5-D2.3*6*D4 |
M3.5*0.6-D2.7*7*D4 |
M4*0.7-D3*8*D4 |
M4.5*0.75-D3.4*9*D4 |
M5*0.8-D4*10*D4 |
M6*0.5-D4*10*D4 |
M6*1-D4.8*16*D6 |
M8*1-D6*16*D6 |
M8*1.25-D6*16*D6 |
M10*0.5-D6*13*D6 |
M10*1-D8*20*D8 |
M10*1.5-D7.8*20*D8 |
M12*0.75-D8*20*D8 |
M12*1-D10*22*D10 |
M12*1.25-D10*25*D10 |
M12*1.5-D10*28*D10 |
M12*1.75-D9.8*30*D10 |
M14*1.5-D12*28*D12 |
M14*2-D11.2*30*D12 |
M16*1-D12*22*D12 |
M18-M20*2.5-D14*36*D14 |
M20*1-D16*30*D16 |
M20*1.5-D16*30*D16 |
D20*2-D16*34*D16 |
M20-M80*2-D16*40*D16 |
M20-M80*2.5-D16*40*D16 |
M24*3-D16*42*D16 |
M30*1.5-D20*30*D20 |

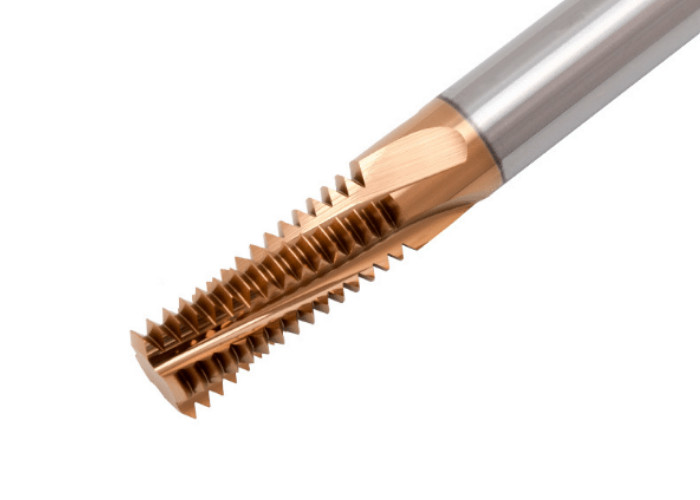

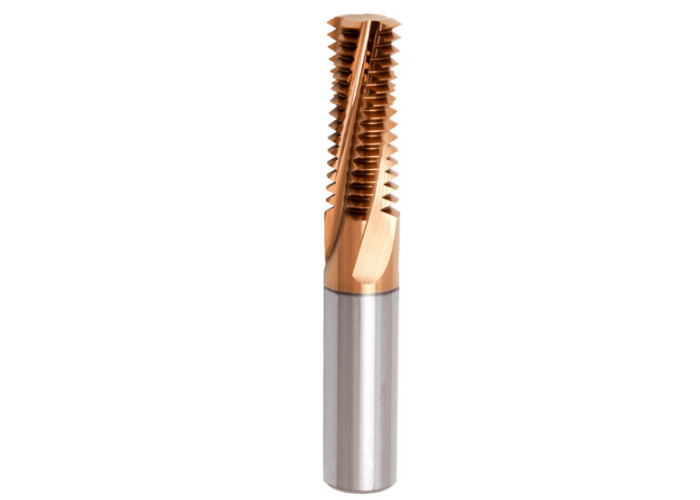

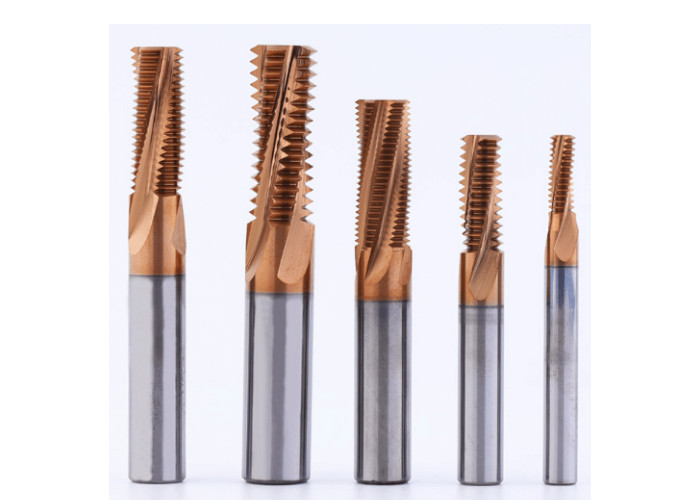

Product show
Welcome for your inquiry!
