Compression End Mill Cnc Router Bits For Hard Wood Plastic SGS
10pcs
MOQ
negotiable
Price
Compression End Mill Cnc Router Bits For Hard Wood Plastic SGS
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: Zhuzhou--Carbide City
Brand Name: Whitout Brand
Certification: ISO9001, SGS
Model Number: As your requirements
High Light:

tisin End Mill Cnc Router Bits

,

Plastic End Mill Cnc Router Bits

,

SGS Compression Router Bit

Payment & Shipping Terms
Packaging Details: 1PCS in a plastic tube, 10 PCS per group
Delivery Time: 15-25 work days
Payment Terms: T/T, PAYPAL, WESTERN UNION
Supply Ability: 50000pcs/Month
Specifications
Flute Number: 1/2
Package: 1 PCS In A Plastic Tube, 10 PCS Per Group
Sample: Free
Production Period: 7-10 Days
Cutting Form: Ball Nose, Corner Radius, Square
Usage: General High Speed Cutting
Coating: Blue Nano Coating/diamond/tisin
Flute Diameter: 0.5mm-25mm,Customized
Product Description
Application
Carbon Steel
Alloy Steel
Pre-harden steel High-hardened Stainless Steel Copper Alloy Aluminum Alloy
45HRC 50HRC 55HRC 60HRC 65HRC

Tolerances
Flute Diameter Flute Diameter Tolerance Shank Diameter Tolerance
Φ1.0-Φ2.9 0~-0.02 H6
Φ3-Φ6 -0.01~-0.03
Φ6-Φ10 -0.01~-0.035
Φ10.0-Φ18.0 -0.01~-0.04
Φ18.0-Φ20.0 -0.015~-0.045
Recommended Parameters
Material Carbon Steel,Alloy Steel,S45C,FC,FCD,SCM,S50C,SKS... Alloy Steel,Tool Steel SCR,SNCM,SKD11,SKD61.NAK80 Hard Steel,SKD11
Hardness HRC30 HRC50 HRC60
Diameter Cutting speed(VC) (mm-1) Feed(F) (mm-min) Cutting speed(VC) (mm-1) Feed(F) (mm-min) Cutting speed(VC) (mm-1) Feed(F) (mm-min)
1mm 22000 400 18000 200 9000 140
1.5mm 12000 500 11000 280 5200 150
2mm 10000 550 10000 280 4600 170
3mm 9000 600 5500 310 3500 220
4mm 6000 750 5000 400 2200 220
5mm 4800 800 4000 400 1700 240
6mm 4500 820 3800 420 1600 300
8mm 3500 820 2800 420 1000 300
10mm 3000 820 1800 420 900 300
12mm 2000 820 1600 350 800 300
16mm 1500 650 1000 300 500 150
20mm 1200 650 900 300 400 150

Application

Used for cutting Carbon steel, Tool steel, Mould steel, Stainless steel, Titanium alloy, Copper, Cast Iron and Aluminium, etc.





Packing

Brand Laser printed on cutter shank, 1 pcs in a plastic tube, 10 pcs a group




Products Show

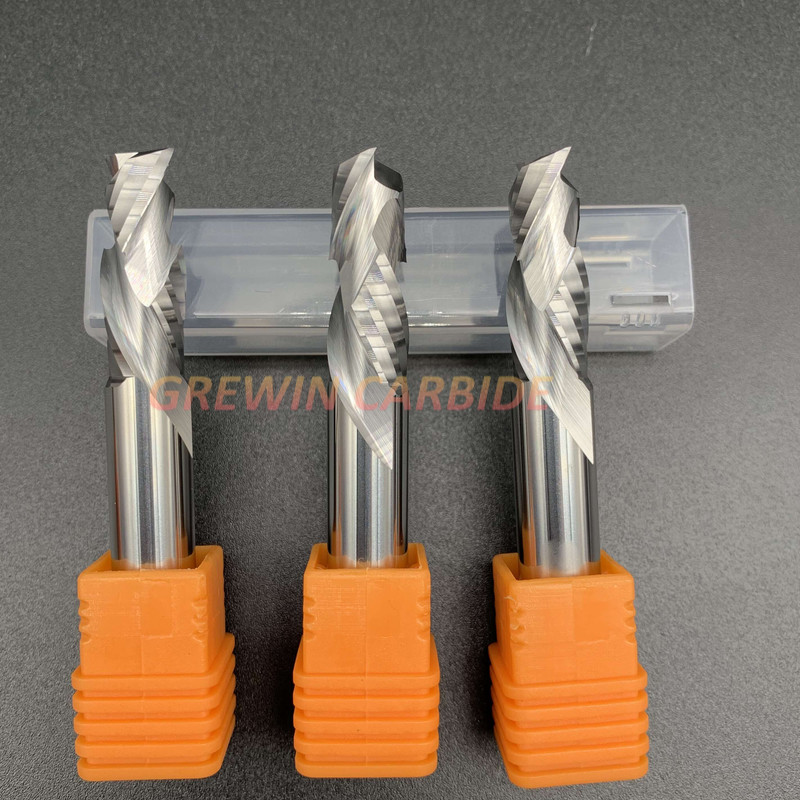

Compression End Mill Cnc Router Bits For Hard Wood Plastic SGS 0

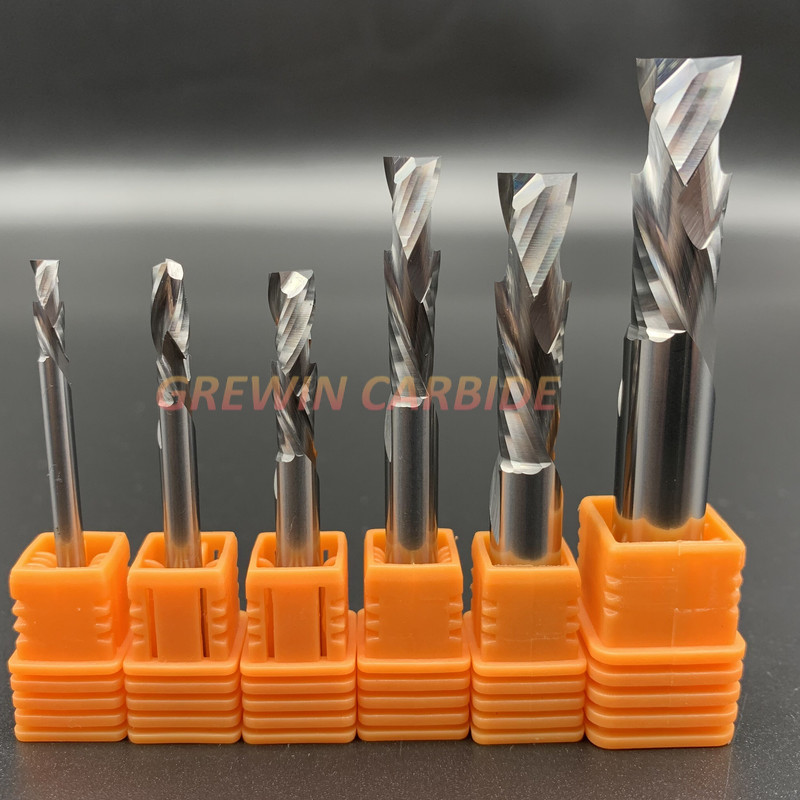

Compression End Mill Cnc Router Bits For Hard Wood Plastic SGS 1
