3 Flute Aluminum Cutting End Mills Cutter Tungsten Carbide 50-150mm
10pcs
MOQ
negotiable
Price
3 Flute Aluminum Cutting End Mills Cutter Tungsten Carbide 50-150mm
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: Zhuzhou--Carbide City
Brand Name: Whitout Brand
Certification: ISO9001, SGS
Model Number: As your requirements
High Light:

Tungsten Carbide Aluminum Cutting End Mills

,

150mm Aluminum Cutting End Mills

,

3 flute aluminum end mill

Payment & Shipping Terms
Packaging Details: 1PCS in a plastic tube, 10 PCS per group
Delivery Time: 15-25 work days
Payment Terms: T/T, PAYPAL, WESTERN UNION
Supply Ability: 50000pcs/Month
Specifications
Diameter: 1-20mm
Overall Length: 50-150mm
Usage: General High Speed Cutting
Size: Customers Requirements
Suitable For: Carbon Steel
Work Piece: Aluminum
Flutes Number: 3
Cutting Form: Flat, Ball Nose, Corner Radius, Roughing
Material: Tungsten Carbide
Product Description





Tungsten Carbide Aluminum End Mills

Introduction of the carbide materials of the End mill

Carbide Grade Technical Details of tungsten carbide rod
10U Co:10% WC 89% rare element: 1% HRA: 90.5°Grain Size: 0.75um
12U Co:12% WC 85% rare element: 3% HRA: 92.5°Grain Size: 0.4um
K40 Co:12% WC 84% rare element: 4% HRA: 93°Grain Size: 0.4um
K44 Co:12% WC 84% rare element: 4% HRA: 93.5°Grain Size: 0.4um



​3 Flutes Flat End Mill

HRC choice: HRC38-45, HRC50-55
Without polishing with polishing
Materials to be cut: Aluminum

Code No. Diamter
d
Cutting length
l
Total length
L
Shank
D
Flutes
Z
3GW1-01003050 1 3 50 4 3
3GW1-01504050 1.5 4 50 4 3
3GW1-02050500 2 5 50 4 3
3GW1-02507050 2.5 7 50 4 3
3GW1-03008050 3 8 50 4 3
3GW1-04010050 4 10 50 4 3
3GW1-04015075 4 15 75 4 3
3GW1-04020100 4 20 100 4 3
3GW1-05013050 5 13 50 6 3
3GW1-06015050 6 15 50 6 3
3GW1-06020075 6 20 75 6 3
3GW1-06030100 6 30 100 6 3
3GW1-06020060 8 20 60 8 3
3GW1-08025075 8 25 75 8 3
3GW1-08035100 8 35 100 8 3
3GW1-010025075 10 25 75 10 3
3GW1-010040100 10 40 100 10 3
3GW1-012030075 12 30 75 12 3
3GW1-012040100 12 40 100 12 3
3GW1-014030080 14 30 80 14 3
3GW1-014100100 14 40 100 14 3
3GW1-016040100 16 40 100 16 3
3GW1-018040100 18 40 100 18 3
3GW1-020040100 20 40 100 20 3
3GW1-06040150 6 40 150 6 3
3GW1-08050150 8 50 150 8 3
3GW1-010050150 10 50 150 10 3
3GW1-012050150 12 50 150 12 3
3GW1-014060150 14 60 150 14 3
3GW1-016060150 16 60 150 16 3
3GW1-018060150 18 60 150 18 3
3GW1-020060150 20 60 150 20 3







Super Coating
  AlTiN TiAIN TiSiN Nano
Hardness(HV) 3200 2800 3600 42(GPA)
Thickness(μm) 2.5-3 2.5-3 3 3
Oxidation Temp(ºC) 900 800 1000 1200
Friction Coeffient 0.3 0.3 0.45 0.4
Color Black Violet Copper Blue

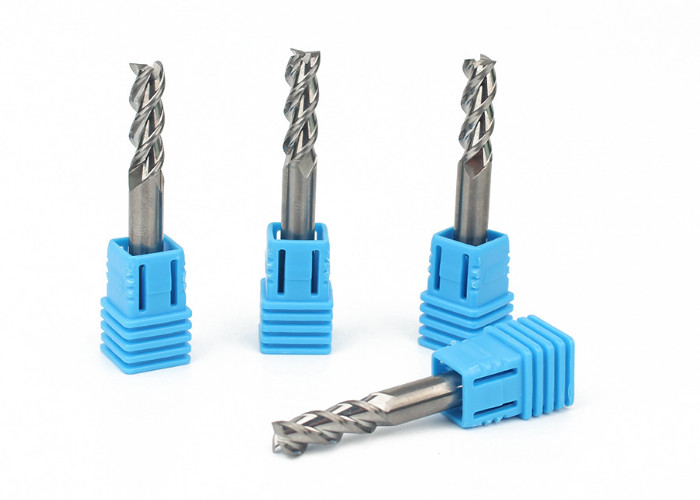

Product pictures

3 Flute Aluminum Cutting End Mills Cutter Tungsten Carbide 50-150mm 03 Flute Aluminum Cutting End Mills Cutter Tungsten Carbide 50-150mm 1



Our Services
More than 2000 products are available. Assembly line production, high standard and strict requirements.?
OEM Services Offered
Customized Tools Offered
Free laser marking on tools and boxes Offered
Fast delivery time and Convenient Transportations. We have discount on shipping cost from our courier companies, such as FedEx, DHL, TNT, UPS etc.

Waiting for your kindly inquiry !
