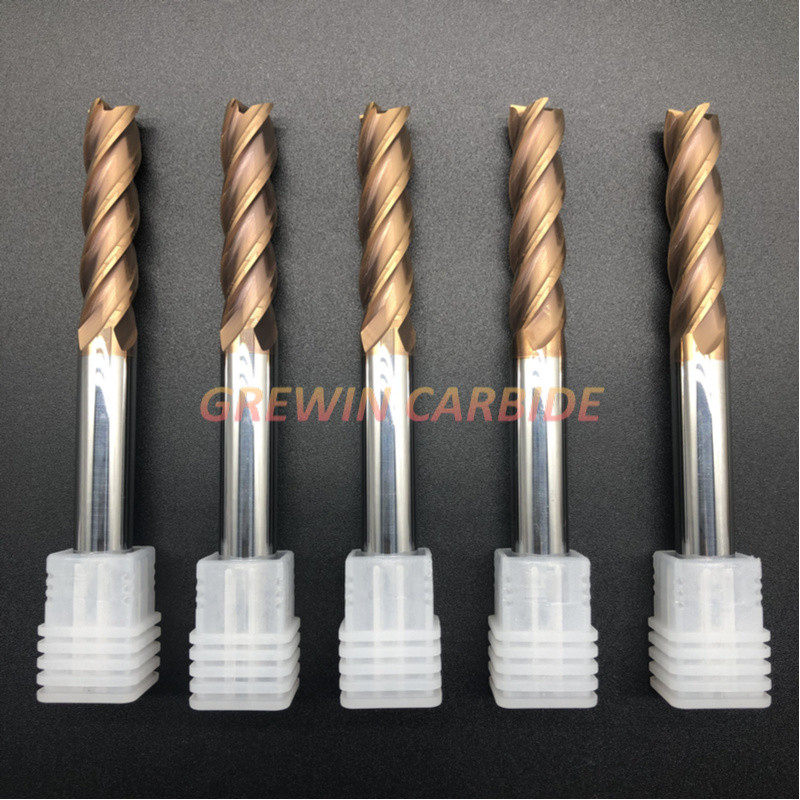

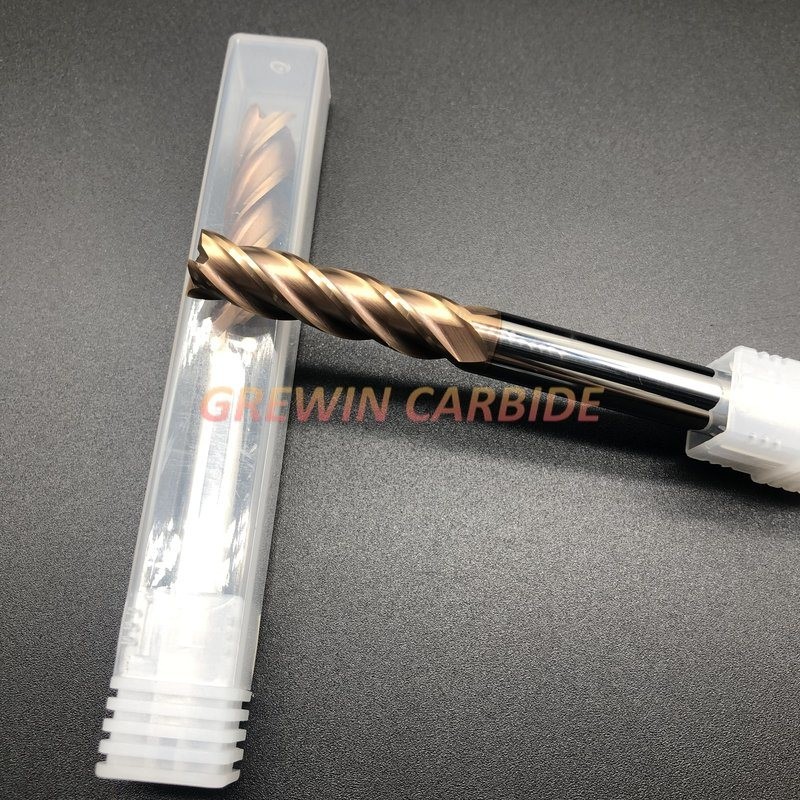

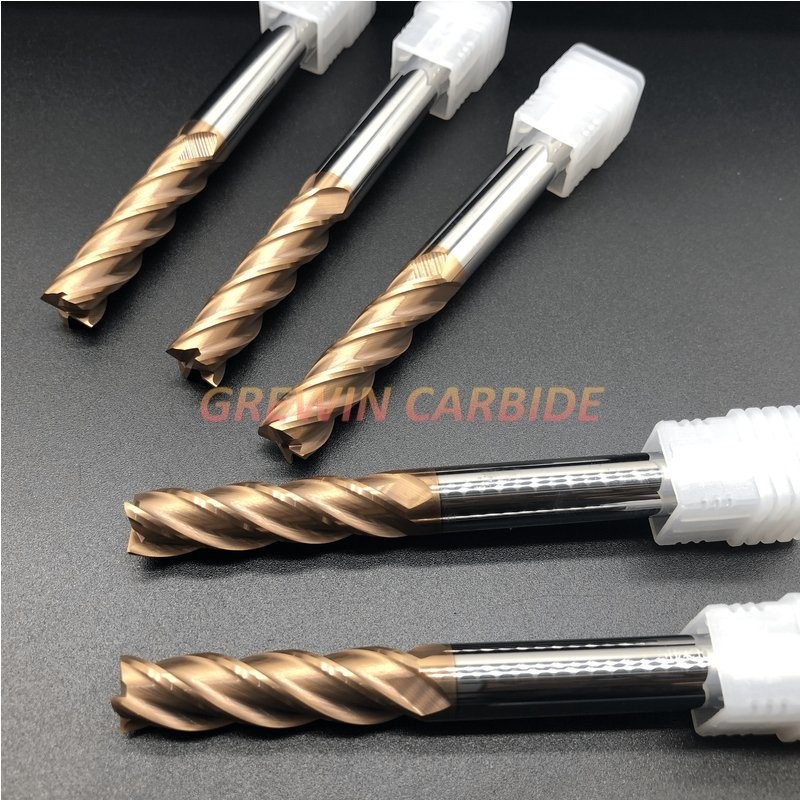

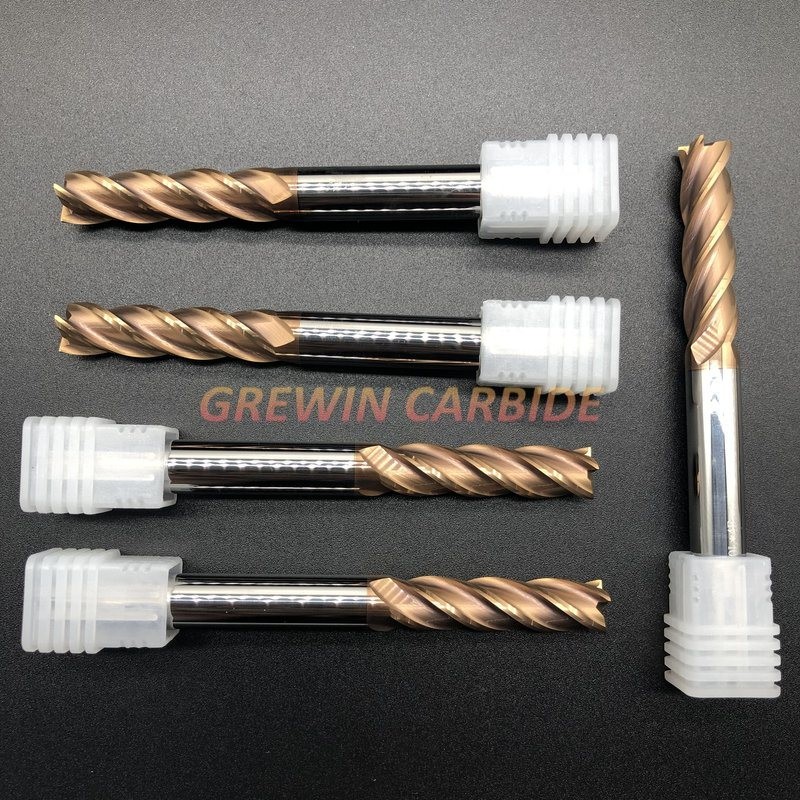

Tungsten Carbide 2/4 Flute Tisin Coating End Mill
1. Products Description
Micro grain raw material
Grain size: 0.4-0.6μm
Co 10%, 12%
TRS >3600 N/mm2
Hardness HRA 91.8-92.5
Work piece HRC45-50 HRC55-60 HRC65 HRC68
Helix angle 30°-45 °
Diameter of cutting edge 0.2-0.9 mm; 1-20 mm
Diameter of rods 4-20 mm
Length 50-100 mm
Cutting Form Flat, Square, Ball nose, Corner Radius, Taper Flute, etc
Flutes No. 1-7
| HRC45 | HRC55 | HRC60 | HRC65 |
| Grain Size: 0.6um Co: 10 % Flexural strength: 3350N/mm2 |
Grain Size: 0.6um Co: 10 % Flexural strength: 4000N/mm2 |
Grain Size: 0.5um Co: 12 % Flexural strength: 4300N/mm2 |
Grain Size: 0.4um Co: 12.5 % Flexural strength: 4300N/mm2 |
Introduction of the carbide materials of the End mill
| Carbide Grade | Technical Details of tungsten carbide rod |
| 10U | Co:10% WC 89% rare element: 1% HRA: 90.5°Grain Size: 0.75um |
| 12U | Co:12% WC 85% rare element: 3% HRA: 92.5°Grain Size: 0.4um |
| K40 | Co:12% WC 84% rare element: 4% HRA: 93°Grain Size: 0.4um |
| K44 | Co:12% WC 84% rare element: 4% HRA: 93.5°Grain Size: 0.4um |
The materials to be cut
| Carbide Grade | HRC of End mill | Materials to be cut |
| 10U | HRC45-50 | For cutting the materials under HRC35 |
| 12U | HRC55-58 | For cutting the materials under HRC50 |
| K40 | HRC60-62 | For cutting the materials under HRC55 |
| K44 | HRC65-70 | For cutting the materials under HRC63 |
Corresponding Coating
| Carbide Grade | HRC of End mill | Corresponding Coating |
| 10U | HRC45-50 | AlTiN |
| 12U | HRC55-58 | TiAlN |
| K40 | HRC60-62 | TiSlN |
| K44 | HRC65-70 | Nano |
Introduction of carbide materials of the End mill
| AlTiN | TiAlN | TiSlN | Nano | |
| Hardness(HV) | 3200 | 2800 | 3600 | 42(GPA) |
| Thickness(UM) | 2.5-3 | 2.5-3 | 3 | 3 |
| Oxidation Temp(°) | 900 | 800 | 1000 | 1200 |
| Friction Coefficient | 0.3 | 0.3 | 0.45 | 0.4 |
| Color | Black | Violet | Copper | Blue |
