Gw Carbide - Solid Carbide Rod for End Mill / Drills

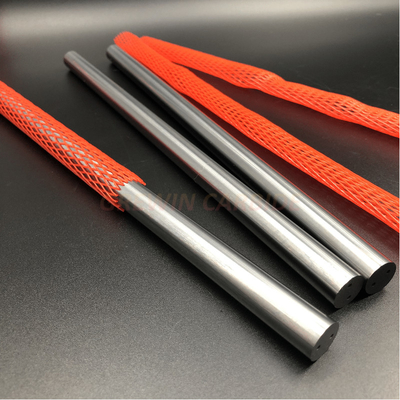

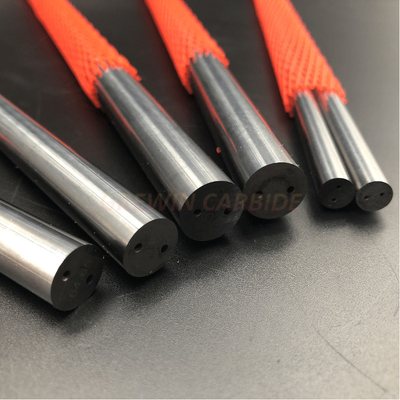

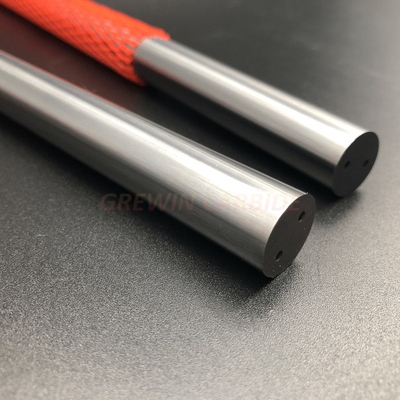

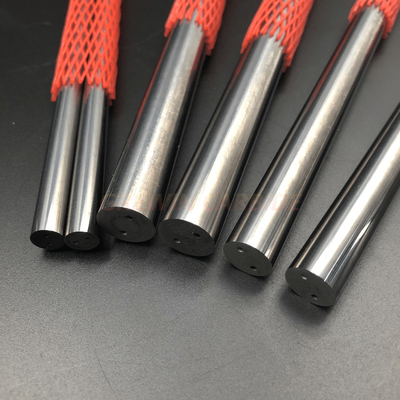

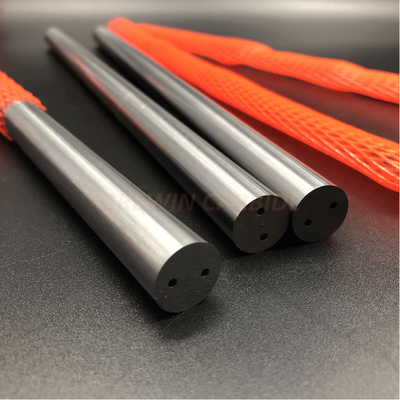

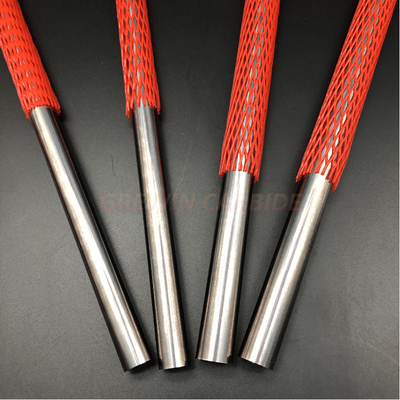

Tungsten carbide rod
Diameter: 0.5mm-50mm (HIP Extrusion)
Standard Length: cut to length, length from 50-1000mm,
Widely used in endmills, drills, PCB drills, PCB routers etc.
Advantages of our carbide products:
1. high quality durable tungsten carbide rods/cemented rods for milling for router bits made from 100% virgin raw material.
2. produced with advanced equipments and process.
3. all products go through in-process and final inspection.
4. free online technical service available.
5. stable and continuous production ability.
Grade:
Grade | ISO range | Cobalt % | Density g/cm3 |
Hardness HRA |
TRS N/mm2 |
YG8 | K30 | 8 | 14.80 | 89.5 | 2200 |
YG6 | K20 | 6 | 14.95 | 90.5 | 1900 |
YG6X | K10 | 6 | 14.95 | 91.5 | 1800 |
YL10.2 | K30 | 10 | 14.50 | 91.8 | 2400 |
YG13X | K30-K40 | 13 | 14.30 | 89.5 | 2600 |
YG15 | K40 | 15 | 14.00 | 87.5 | 2800 |
Product size:
D(mm) | Tol(mm) | d(mm) | Tol(mm) | TK(mm) | Tol(mm) | L(mm) | Tol(mm) | A(mm) |
6.3 | 0~+0.3 | 1 | ±0.10 | 3 | -0.2 | 330 | 0~+5.0 | 0.15 |
8.3 | 0~+0.3 | 1 | ±0.15 | 4 | -0.3 | 330 | 0~+5.0 | 0.15 |
10.3 | 0~+0.3 | 1.4 | ±0.15 | 5 | -0.3 | 330 | 0~+5.0 | 0.2 |
12.3 | 0~+0.4 | 1.75 | ±0.15 | 6 | -0.5 | 330 | 0~+5.0 | 0.3 |
14.3 | 0~+0.4 | 1.75 | ±0.15 | 7 | -0.5 | 330 | 0~+5.0 | 0.37 |
16.3 | 0~+0.4 | 2 | ±0.20 | 8 | -0.5 | 330 | 0~+5.0 | 0.4 |
18.3 | 0~+0.5 | 2 | ±0.20 | 9 | -0.8 | 330 | 0~+5.0 | 0.5 |
20.4 | 0~+0.5 | 2.5 | ±0.20 | 10 | -0.8 | 330 | 0~+5.0 | 0.5 |
Who we are?
We are Zhuzhou Grewin Tungsten Carbide Tools Co., Ltd, it is located in hometown of Chinese carbide industry - Zhuzhou city. The company has more than 10 years’ experience in manufacture, design and sale of various kinds of carbide products, main products include: carbide end mills, carbide rods, indexable inserts, brazed inserts, wire drawing dies, forging dies, wood working tools, saw tips, mining buttons, etc.
The company has passed ISO 9001: 2008 quality system, possesses advanced production equipments, complete testing instruments, strong R&D center and QC teams.
