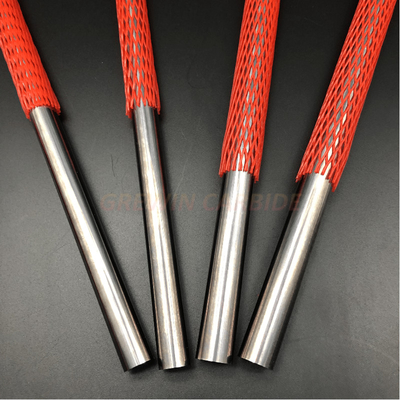

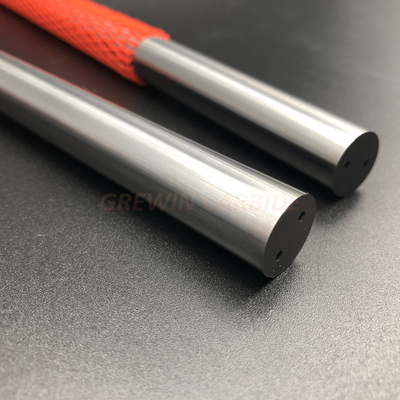

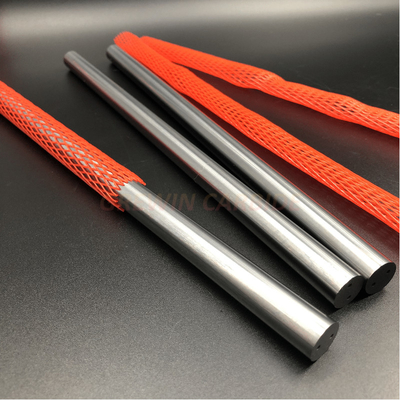

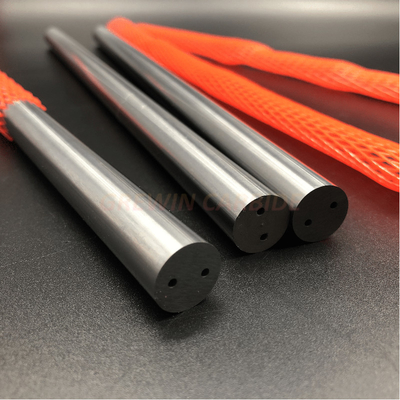

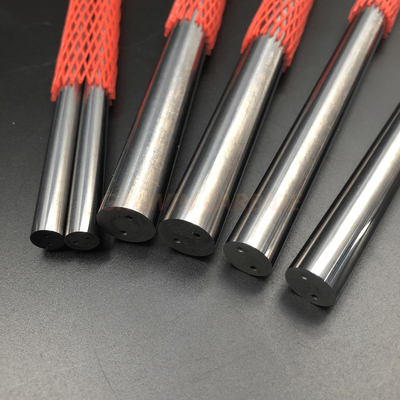

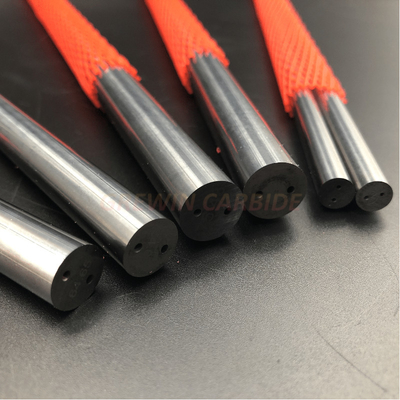

3-30mm Tungsten Carbide Coolant Hole Rod For PCB Drills Double Coolant Holes of Tungsten Carbide Rod
10pcs
MOQ
negotiable
Price
3-30mm Tungsten Carbide Coolant Hole Rod For PCB Drills Double Coolant Holes of Tungsten Carbide Rod
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: Zhuzhou--Carbide City
Brand Name: Whitout Brand
Certification: ISO9001, SGS
Model Number: As your requirements
Payment & Shipping Terms
Packaging Details: 1PCS in a plastic tube, 10 PCS per group
Delivery Time: 15-25 work days
Payment Terms: T/T, PAYPAL, WESTERN UNION
Supply Ability: 50000pcs/Month
Specifications
SIZE: 3X330mm,25X330mm, 3x10x310mm, 25x100x310mm As Drawing
SURFACE: GRIDING OR BLANK
MATERIAL: TUNGSTEN CARBIDE
GRADE: YL10.2, H10F, K10, K20, K30, K40
ORIGINAL: ZHUZHOU, HUNAN
Usage: Metal, End Mill, Drill
Product Description

One Coolant Hole Rod Diameter From 3mm -30mm Tungsten Carbide Rod



Tungsten carbide rod



Diameter: 0.5mm-50mm (HIP Extrusion)

Standard Length: cut to length, length from 50-1000mm,

Widely used in endmills, drills, PCB drills, PCB routers etc.

Advantages of our carbide products:
1. high quality durable tungsten carbide rods/cemented rods for milling for router bits made from 100% virgin raw material.
2. produced with advanced equipments and process.
3. all products go through in-process and final inspection.
4. free online technical service available.
5. stable and continuous production ability.



Grade:

Grade ISO range Cobalt % Density
g/cm3
Hardness
HRA
TRS
N/mm2
YG8 K30 8 14.80 89.5 2200
YG6 K20 6 14.95 90.5 1900
YG6X K10 6 14.95 91.5 1800
YL10.2 K30 10 14.50 91.8 2400
YG13X K30-K40 13 14.30 89.5 2600
YG15 K40 15 14.00 87.5 2800



Product size:

Unground


*all sizes are available, with sintered, grinding, polishing, large ready stock for immediately delivery!

* GU10 and GU 20 are the most popular and common grades, they are ready for your factric of carbide end mills and carbide drills!

* tungsten carbide rods / cemented carbide rods/ solid carbide rods

3-30mm Tungsten Carbide Coolant Hole Rod For PCB Drills Double Coolant Holes of Tungsten Carbide Rod 03-30mm Tungsten Carbide Coolant Hole Rod For PCB Drills Double Coolant Holes of Tungsten Carbide Rod 13-30mm Tungsten Carbide Coolant Hole Rod For PCB Drills Double Coolant Holes of Tungsten Carbide Rod 2



Who we are?

We are Zhuzhou Grewin Tungsten Carbide Tools Co., Ltd, it is located in hometown of Chinese carbide industry - Zhuzhou city. The company has more than 10 years’ experience in manufacture, design and sale of various kinds of carbide products, main products include: carbide end mills, carbide rods, indexable inserts, brazed inserts, wire drawing dies, forging dies, wood working tools, saw tips, mining buttons, etc.



The company has passed ISO 9001: 2008 quality system, possesses advanced production equipments, complete testing instruments, strong R&D center and QC teams.
