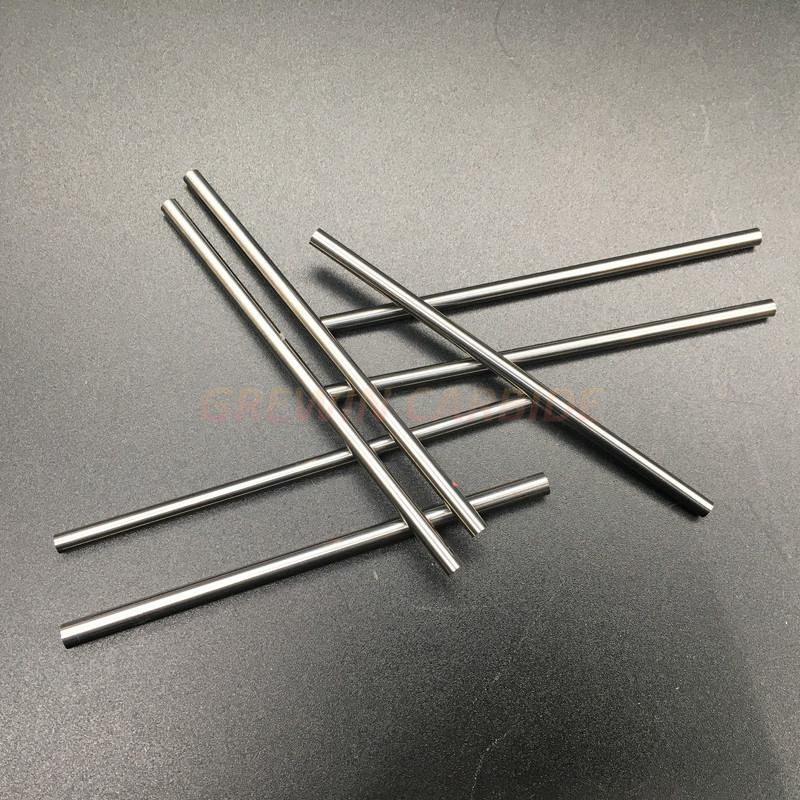

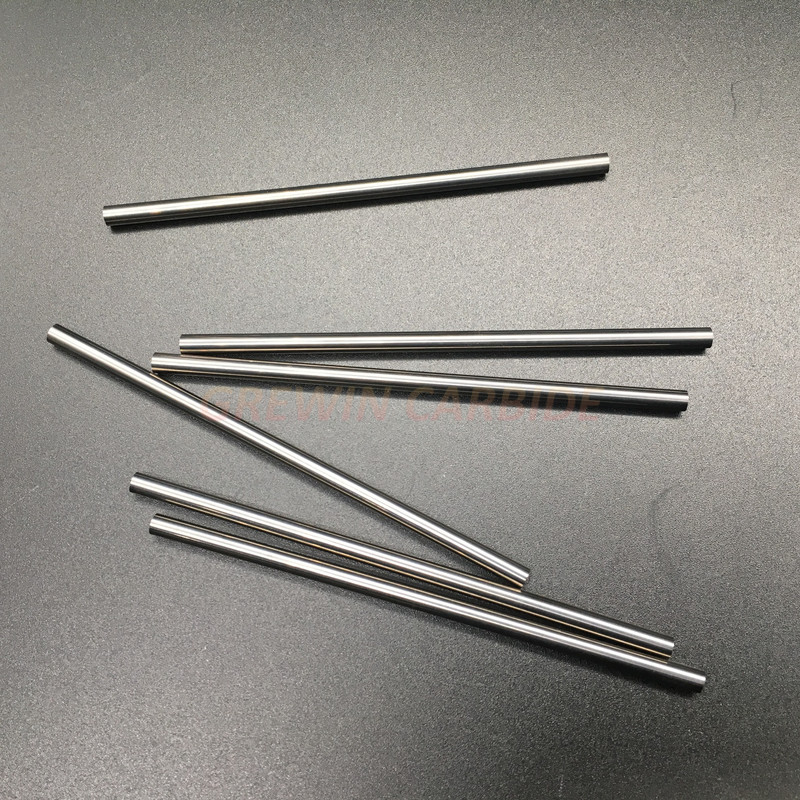

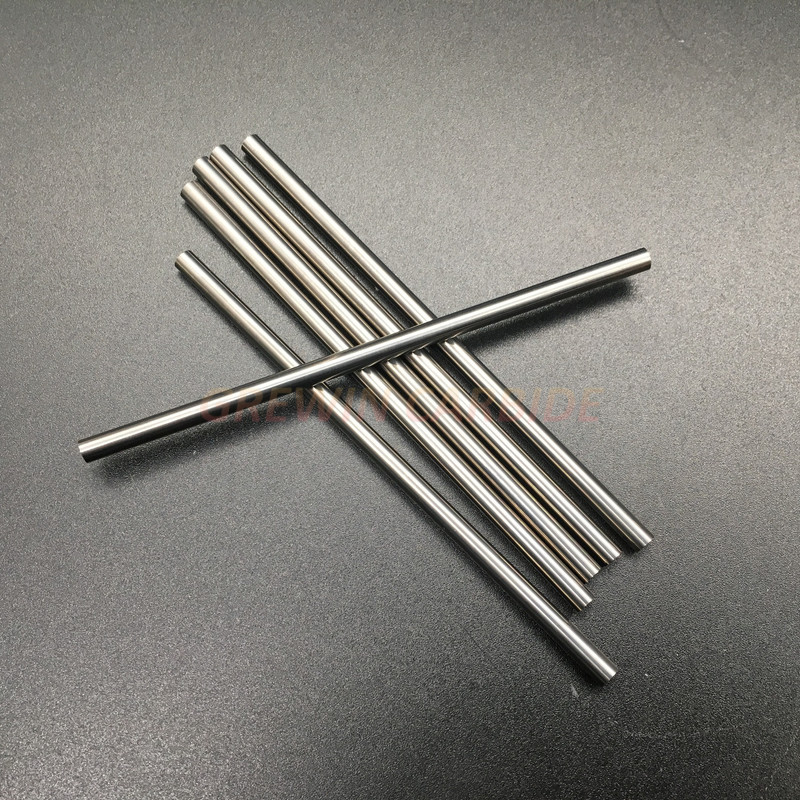

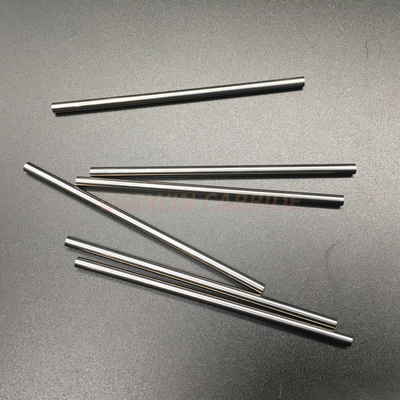

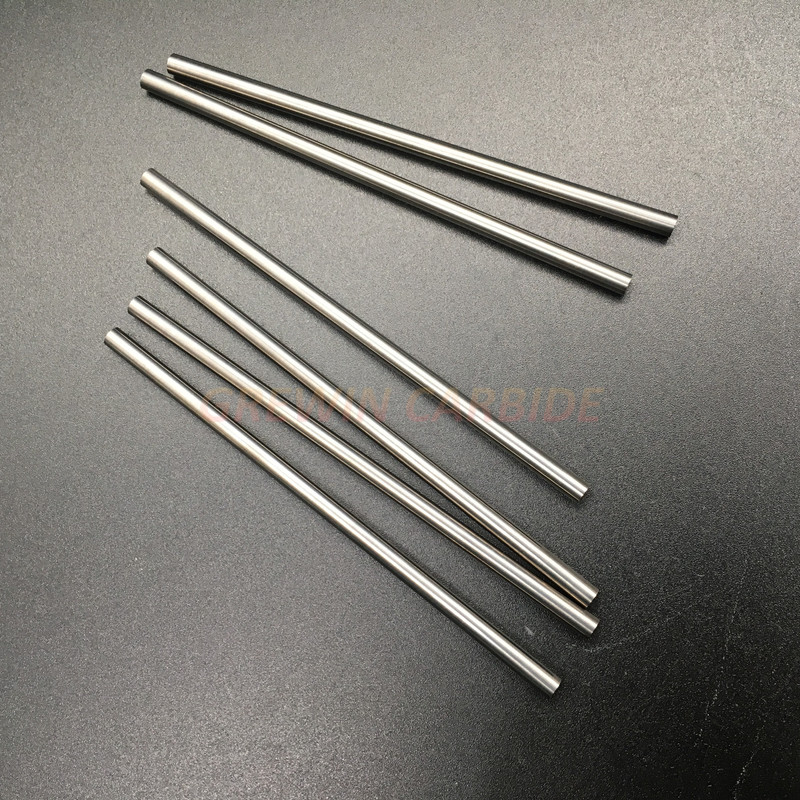

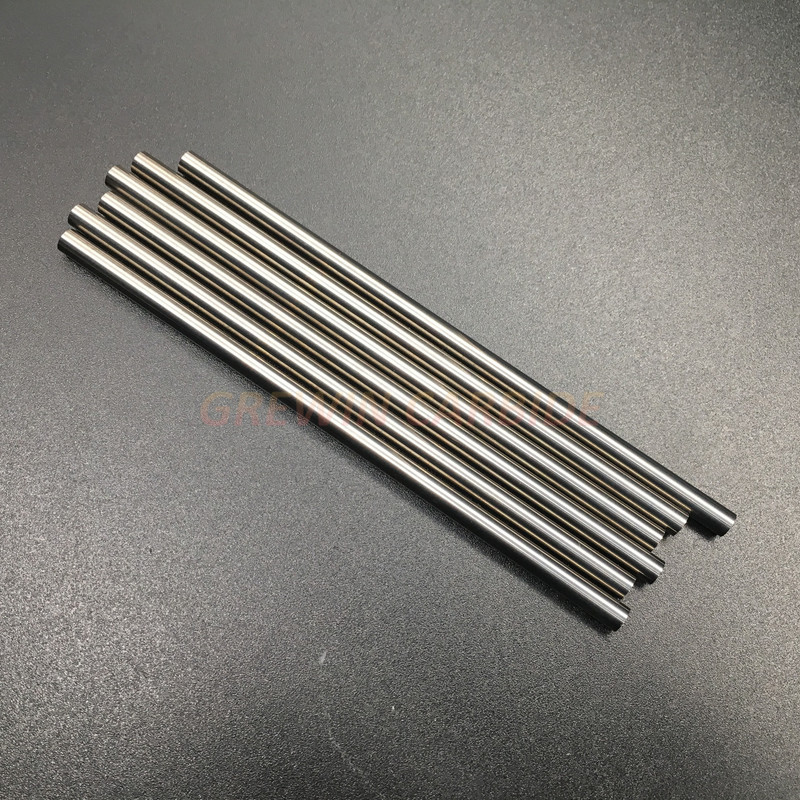

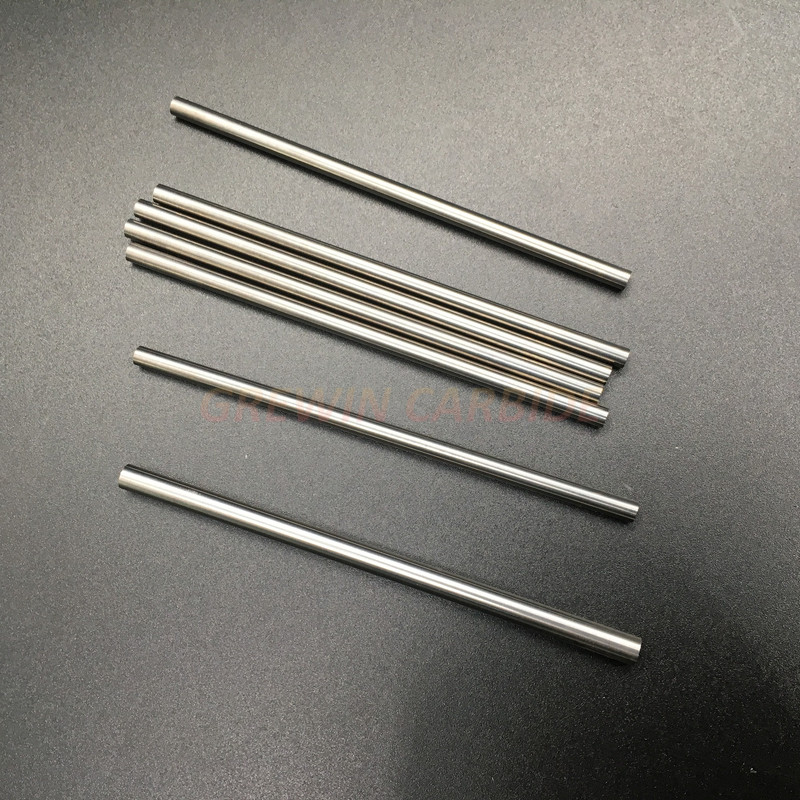

Tungsten Carbide Rod
>> Blank Carbide rod;
>> Polished Carbide Rod;
>> Coated Carbide Rod;
>> Carbide Rod with holes;
>> Carbide rod with 30&40 degree helex holes.
Our advantages:
1. HIP sintered
2. Various grades and sizes
3. Very good price, discount for large quantity.
4. Fast delivery
5. High precision ground
WC Grain size range: 0.3~0.5μ.m; 0.5~0.9μ.m; 1.0~1.3μ.m; 1.4~2.0μ.m.
Diameter range: 0.33mm--60mm;
Length range: 3mm--700mm;
Diameter Grade: h4(H4), h5(H5), h6(H6), h7(H7), h8(H8), h9(H9).
Surface Roughness can be reached to: RA0.04.(reach a mirror effect surface after accurate grinding)
Becides, We can understake order of non-standard size work.
Diameter Grade h4(H4), h6(H6) of blank or finished tungsten carbide rod
| Diameter | h4 | H4 | h6 | H6 |
| 0-3.0mm | +0/-0.003 | +0/-0.003 | +0/-0.006 | -0/+0.006 |
| 3.001-6.0mm | +0/-0.004 | +0/-0.004 | +0/-0.008 | -0/+0.008 |
| 6.001-10.0mm | +0/-0.004 | +0/-0.004 | +0/-0.009 | -0/+0.009 |
| 10.001-18.0mm | +0/-0.005 | +0/-0.005 | +0/-0.011 | -0/+0.011 |
| 18.001-30.0mm | +0/-0.006 | +0/-0.006 | +0/-0.013 | -0/+0.013 |
| 30.001-50.0mm | +0/-0.007 | +0/-0.007 | +0/-0.016 | -0/+0.016 |
| 50.001-60.0mm | +0/-0.008 | +0/-0.008 | +0/-0.019 | -0/+0.019 |
