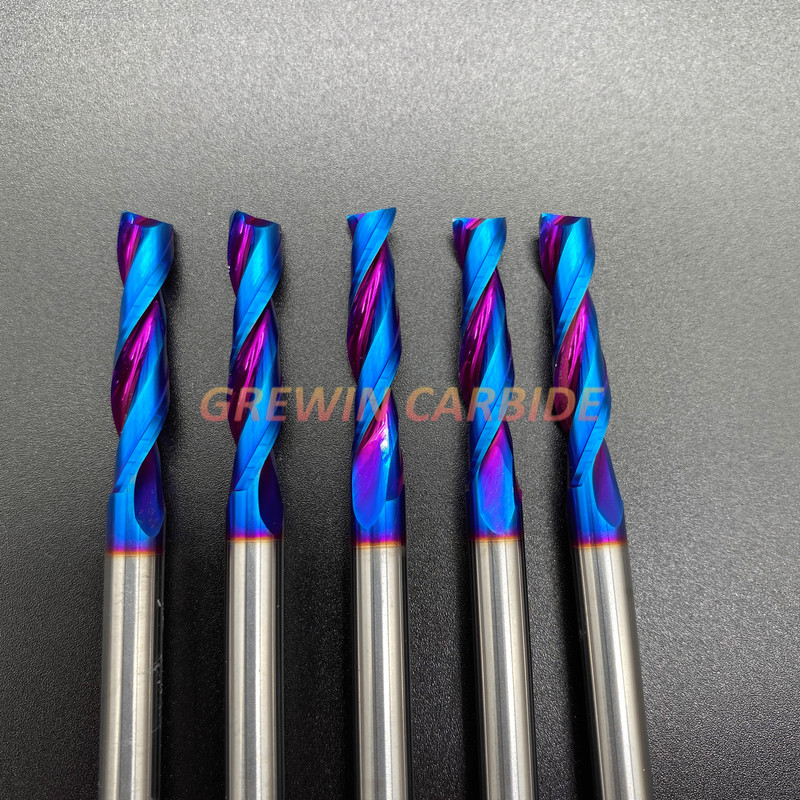

Double Flutes Spiral Flat Carbide End Mill Blue Nano Coated CNC Milling Cutter
Description:
Advantage: Sharp cutting edge, milling, hole and plate edge, clean surface, neat, no glitches.
Suitable material: nylon, resin, ABS, acrylic, PVC, MDF, hardwood.
Application: Perfect for 3D relief sculpturing, cutting, engraving, slotting, milling, etc.
Specification:
| Material | Tungsten Carbide |
| Hardness | 65HRC |
| Surface Treatment | Nano-blue Coated |
| Flute | 2 flute |
| Quantity | 10pcs |
Features:
1. High Precision Material
With sufficient flexural strength and wear resistance, which ensure high work efficiency. Sharp cutting edge, milling, hole and plate edge, clean surface, neat, no glitches.

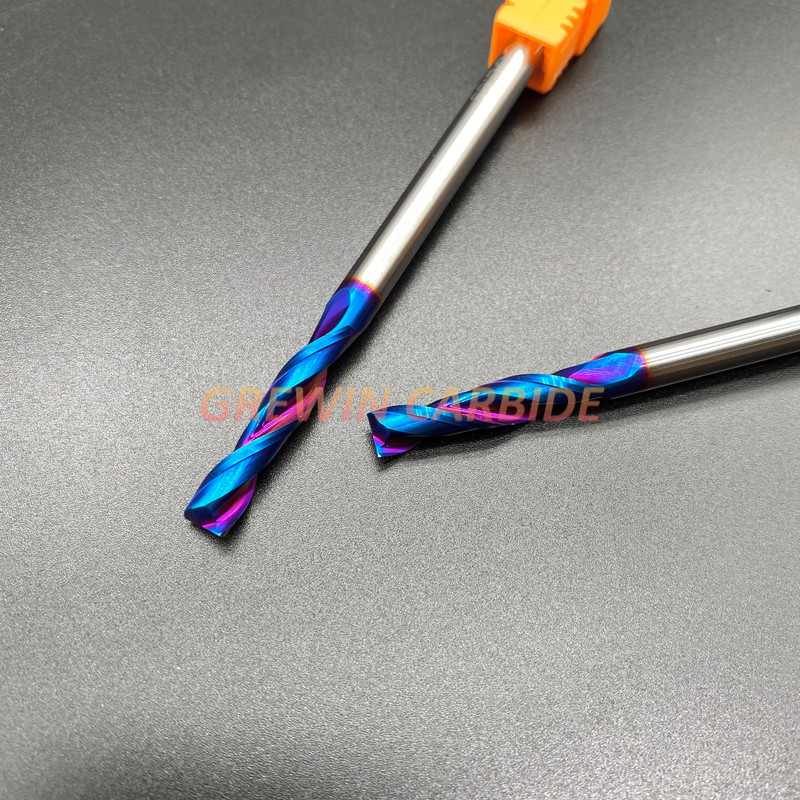

2. Spiral Upcut Design
The design of 1/2 flutes, larger spiral chip space of CNC router bit makes non-stick crumbs, smooth cutting, and fast chip-removal.
3. Wide Application
Suitable for PCB, SMT, CNC, MDF, ABS, PVC, Mold, acrylic, nylon, resin, plastic fiber, carbon fiber, density board, hardwood, plywood, printed circuit board, and other precision parts processing and milling.
4. Abundant Quantity

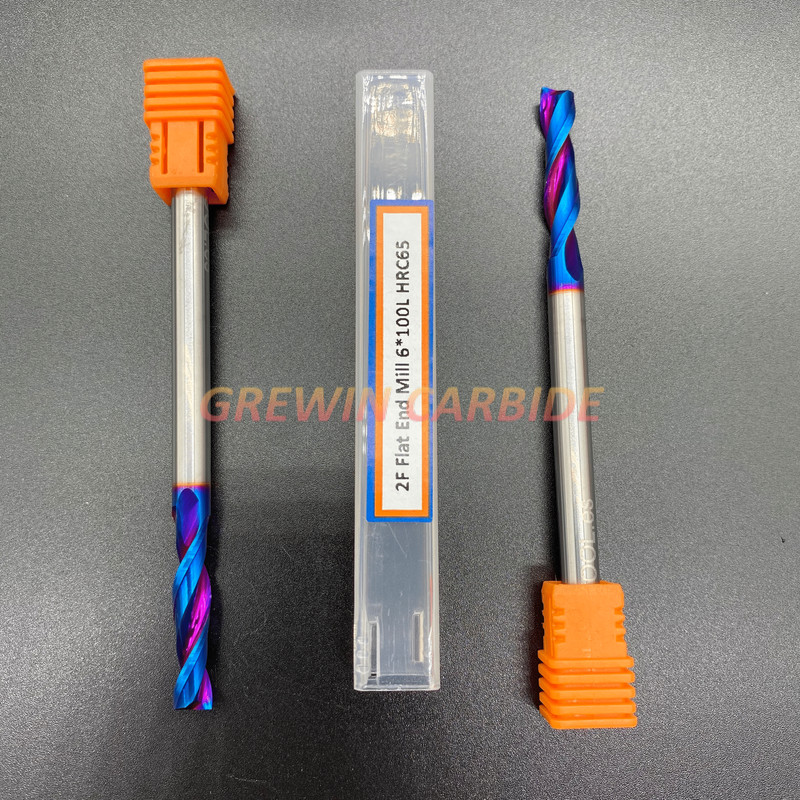

With 10Pcs a set, it's cost-effective for the CNC makers. Come with a portable plastic case, each is stored in an individual section, the set is easy for storage and carries.
Size sheet:
| shank diameter*cutting diameter*cutting length*total length |
| 3.175*1.0*3*38.5 |
| 3.175*1.5*6*38.5 |
| 3.175*1.5*8*38.5 |
| 3.175*1.5*12*38.5 |
| 3.175*2.0*8*38.5 |
| 3.175*2.0*12*38.5 |
| 3.175*2.0*17*38.5 |
| 3.175*2.5*10*38.5 |
| 3.175*2.5*12*38.5 |
| 3.175*2.5*17*38.5 |
| 3.175*2.5*22*45 |
| 3.175*3.175*12*38.5 |
| 3.175*3.175*15*38.5 |
| 3.175*3.175*17*38.5 |
| 3.175*3.175*22*45 |
| 3.175*3.175*25*50 |
| 3.175*3.175*28*50 |
| 3.175*3.175*32*55 |
| 4*4*12*45 |
| 4*4*15*45 |
| 4*4*17*45 |
| 4*4*22*45 |
| 4*4*25*50 |
| 4*4*28*55 |
| 4*4*32*60 |
| 5*5*17*50 |
| 5*5*22*50 |
| 5*5*25*50 |
| 5*5*32*60 |
| 5*5*42*70 |
| 6*6*17*50 |
| 6*6*22*50 |
| 6*6*25*50 |
| 6*6*28*55 |
| 6*6*32*55 |
| 6*6*35*60 |
| 6*6*42*75 |
| 6*6*52*75 |
| 6*6*62*100 |
| 8*8*17*60 |
| 8*8*22*60 |
| 8*8*25*60 |
| 8*8*32*60 |
| 8*8*42*75 |
| 8*8*52*100 |
| 10*10*22*75 |
| 10*10*32*75 |
| 10*10*42*75 |
| 10*10*52*100 |
| 12*12*22*75 |
| 12*12*32*75 |
| 12*12*42*75 |
| 12*12*52*100 |
Package Included:
10 x Two Flute CNC Milling Cutter
More Details:
Operation:
1. For the design of portable and desktop woodworking engraving machine, can not be used in drill machine.
2. Smooth surfaces, such as wood, to avoid the processing of copper, iron and other metal and sand, stone and other non wood materials.
3. Use appropriate size clip.
4. Tool clamping, found that the cutter has a beating phenomenon, should immediately stop, repeat clip a few times to get the tool shank and fixture to get full contact, and then work.
5. Cutter handle and the clamping sleeve contact should be good, a tool shank must be fully inserted into the jacket, tighten firmly.
