HRC60 Solid Carbide Flat End Mills CNC Milling Cutters
10pcs
MOQ
negotiation
Price
HRC60 Solid Carbide Flat End Mills CNC Milling Cutters
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: Zhuzhou,Hunan.
Brand Name: GREWIN/OEM
Certification: ISO9001
Model Number: D1-D20mm
High Light:

HRC60 Carbide Flat End Mills

,

CNC Milling Carbide Flat End Mills

,

50L Carbide Square End Mill

Payment & Shipping Terms
Packaging Details: 1pcs for 1 plastic box,10pcs for a group.
Delivery Time: 5-8 work days
Payment Terms: T/T, Western Union
Supply Ability: 1000000pcs per month
Specifications
Product Name: Square End Mill Cutter/ball Nose End Mill/corner Radius End Mills
Material: Solid Tungsten Carbide
Coating: Altin/Tialn/Tin/Tisin/Nano
Type: Square,ball Nose,corner Radius Etc.
Processing Type: Metal Cutting Tools,General Cutting
Precision: High Precision
Helix Angle: 30/35 Degree
Flute: 1F/2F/3F/4F/6F And Customer-made
Product Description

1.Description of Product:
Tungsten steel milling cutter is a kind of tool made of tungsten steel (cemented carbide, also known as tungsten titanium alloy). Generally used in CNC machining center, CNC engraving machine.
It can also be installed on the ordinary milling machine to process some hard and uncomplicated heat treatment materials. Tungsten steel milling cutter is widely used and high-speed machining is used.
The hardness of tungsten steel milling cutter is Vickers 10K, second only to diamond. Because of this, tungsten steel milling cutter is not easy to be worn, and brittle hard, not afraid of annealing.



2.GREWIN End Mill

Item:Carbide End Mill

Brand:GREWIN

Materials:tungsten carbide

Flutes:2/3/4/6 flutes

HRC:45/50/55/65

Coating:AlTiN /TiAIN/TiSiN/Nano

Helix Angle:35/45
Suitable materials:45 steel, cast iron, tool steel

Suitable Machne:CNC center, Engraving machine, High speed machine, Grinding machine

Unique sharp edge with 20 degrees back angle, to achieve the effect of shock absorption, cutting process stability.
cutting process stability. The deep chip removal groove and the big spiral angle ensure the smooth chip removal. Using the new ultra-fine particle tungsten carbide rod with high hardness and strength which make the end mills in perfect performance.



Coating Sheet
  AlTiN TiAIN TiSiN Nano
Hardness(HV) 3200 2800 3600 42(GPA)
Thickness(UM) 2.5-3 2.5-3 3 3
Oxidation Temp(°) 900 800 1000 1200
Friction Coeffient 0.3 0.3 0.45 0.4
Color Black Violet Copper Blue



Flat Carbide End Mill Size
1.0*3.0*4D*50L
1.5*4.5*4D*50L
2.0*6.0*4D*50L
2.5*7.0*4D*50L
3.0*8.0*3D*50L
3.0*8.0*4D*50L
3.5*8.0*4D*50L
4.0*10*4D*50L
5.0*15*5D*50L
5.0*15*6D*50L
6.0*15*6D*50L
7.0*20*8D*60L
8.0*20*8D*60L
3.0*10*3D*75L
4.0*16*4D*75L
5.0*20*5D*75L
6.0*20*6D*75L
8.0*25*8D*75L
9*25*10D*75L
10*25*10D*75L
11*30*12D*75L
12*30*12D*75L
3.0*20*3D*100L
4.0*20*4D*100L
5.0*30*5D*100L
6.0*30*6D*100L
8.0*35*8D*100L
10*40*10D*100L
12*45*12D*100L
14*45*10D*100L
16*45*16D*100L
18*45*18D*100L
20*45*20D*100L
6.0*35*6D*150L
8.0*40*8D*150L
10*50*10D*150L
12*55*12D*150L
14*65*14D*150L
16*65*16D*150L
18*65*18D*150L
20*70*20D*150L



Product show:

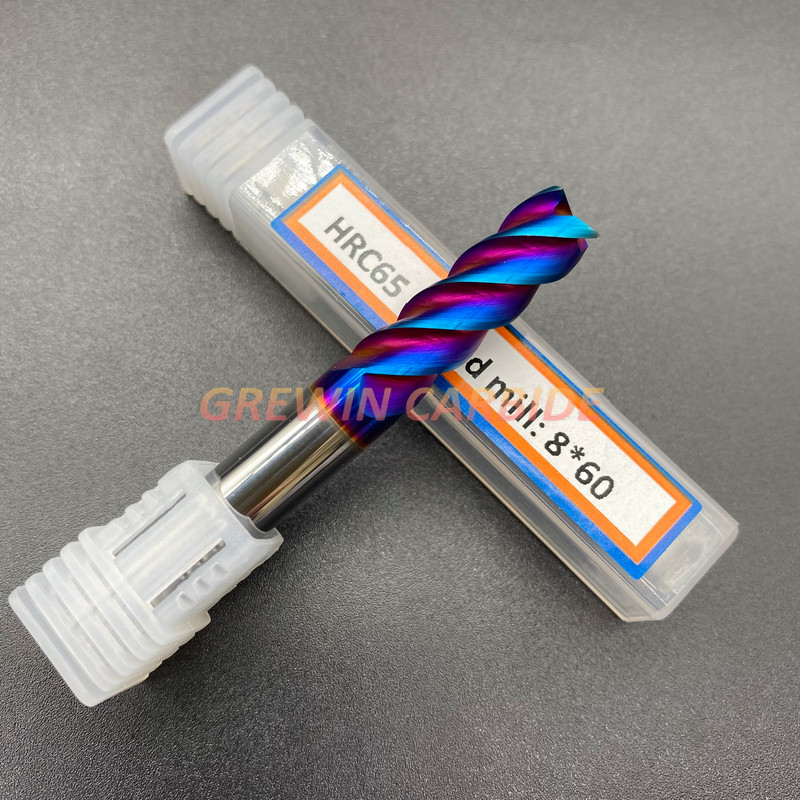

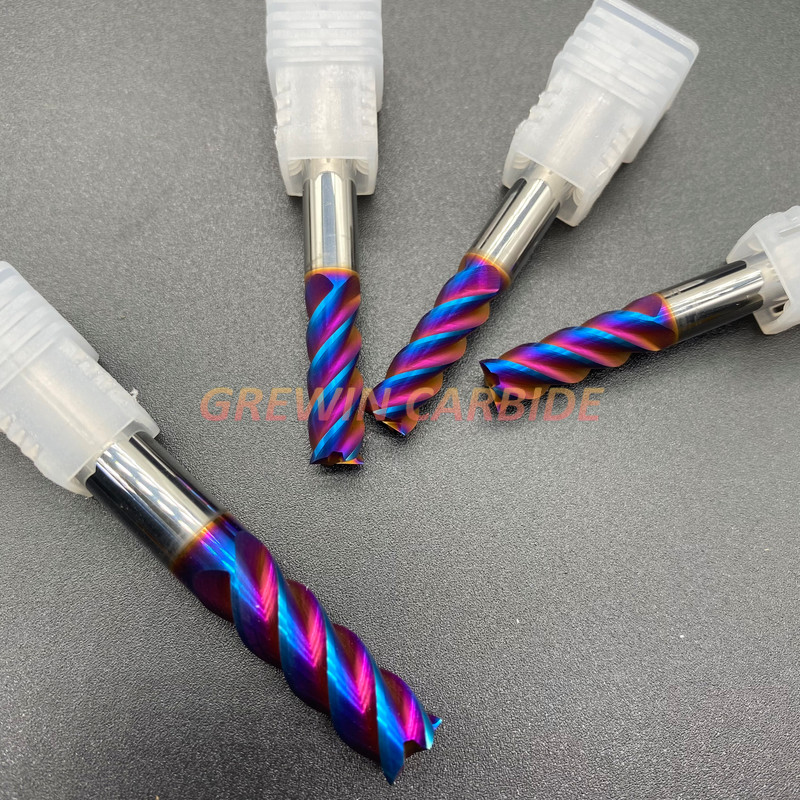

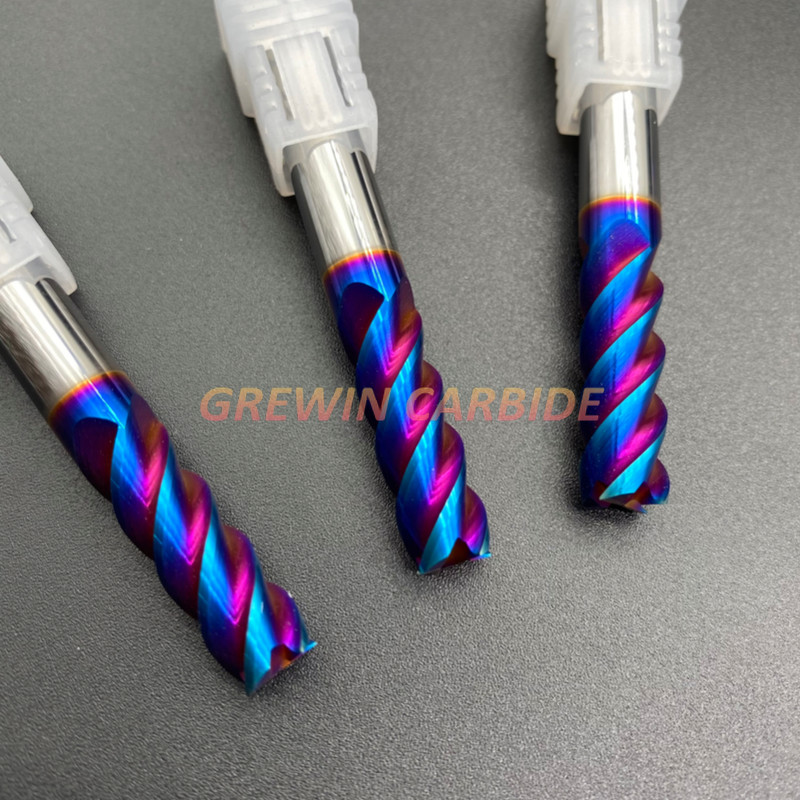

HRC60 Solid Carbide Flat End Mills CNC Milling Cutters 0HRC60 Solid Carbide Flat End Mills CNC Milling Cutters 1

FAQ

Q1 : Are you Factory or trading company ?
We are Factory with 12 years of production experience.
Q2: Where is your factory located ?
We are located in Zhuzhou city, Hunan province where is base of tungsten carbide .
Q3: Is the price Competitive?
We have our own Factory. Thanks to strong production and distribution system, we promise to offer our customers the most competitive price.
Q4: Are the products High Quality?
Yes. All products will be tested before bulk production, and we will check the physical properties, shape and tolerance for ensuring qualified products before shipping.
Q5: How to place an order?
1. Fill your Order List in our online Inquiry System.
(Also you can directly contact our salesperson by E-mail / Skype / Whats App)
2. We will make a feedback to you ASAP after receive your order list.
