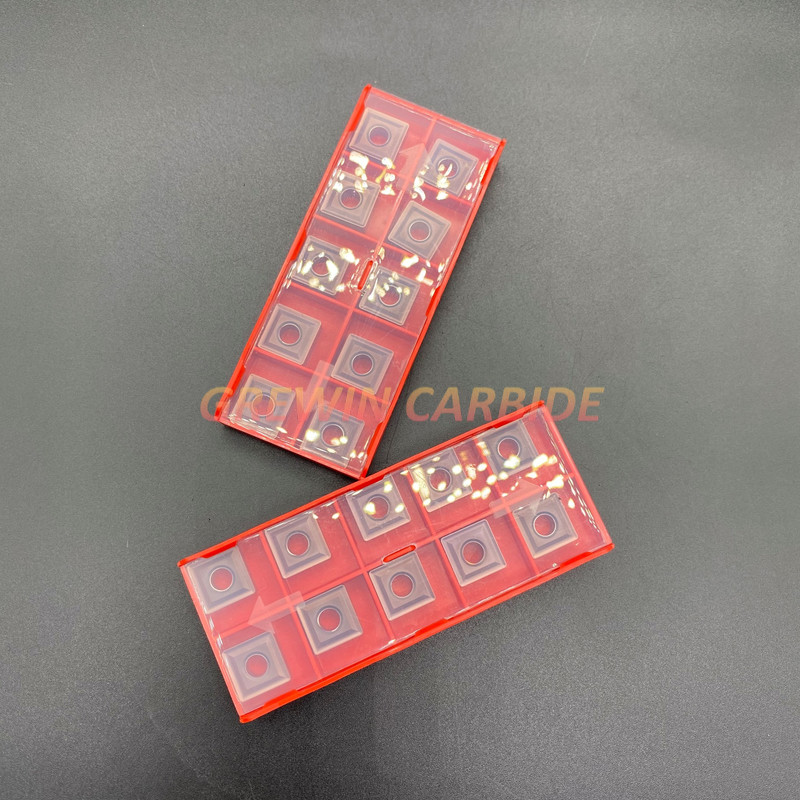

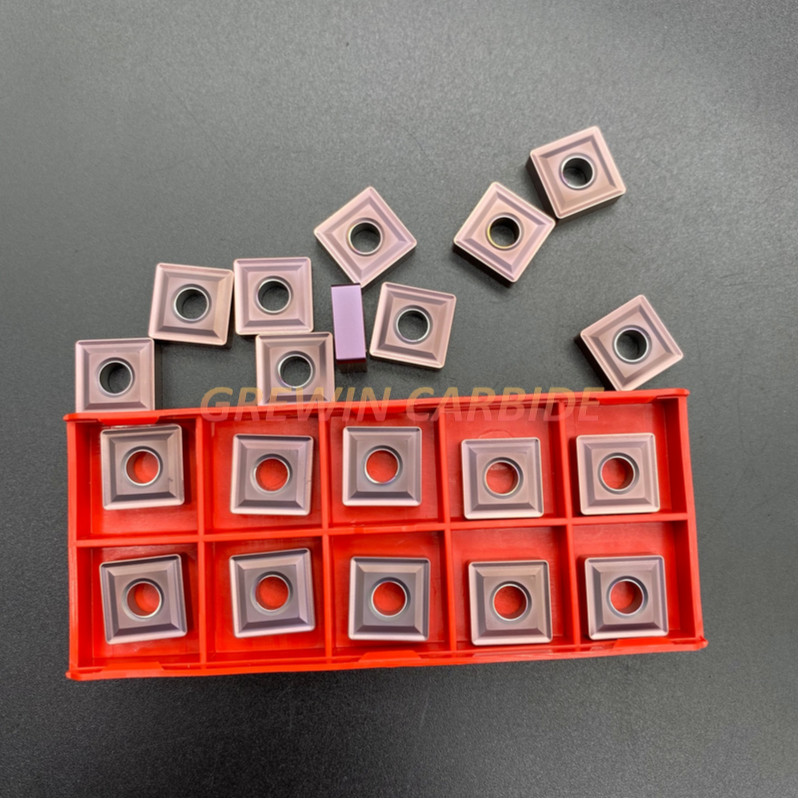

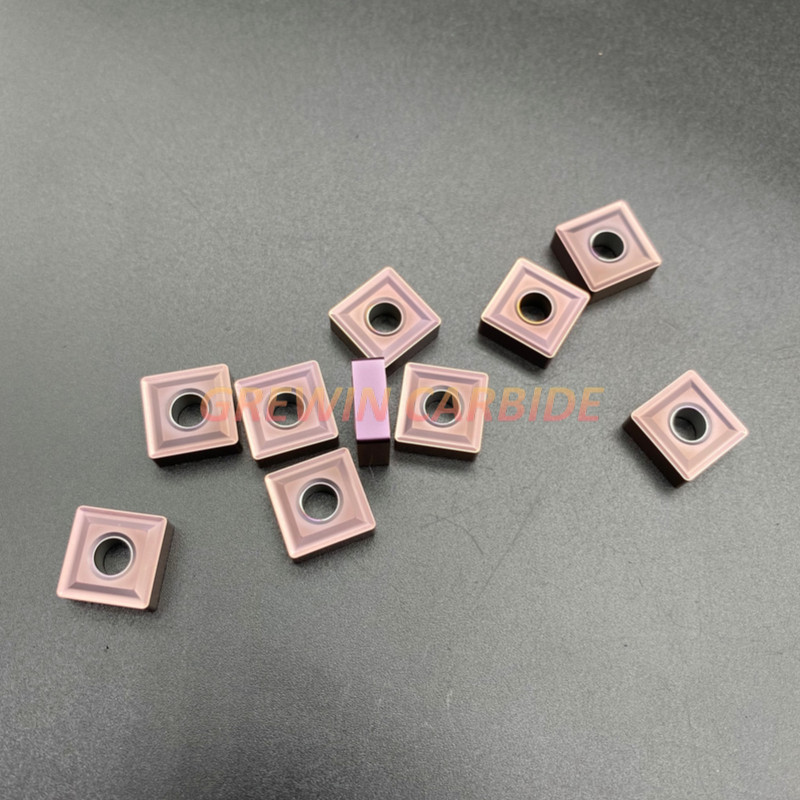

Cemented Carbide CNC Turning Tools And Inserts With SNMG Series Solid Carbide Tips
Coating
Ultra-fine grain coating technology provides better wear resistance and toughness;
Improved remain internal stress design ensures good toughness and anti-cracking performance;
Polishing treatment on coating surface makes it suitable for cutting adhesive materials Substrate With gradient carbide substrate insert has better impact resistance and cutting edge strength Application fields YBM253 grade is suitable for roughing of heavy stainless steel parts with high cutting depth and high feedrate under the condition with great impact.
Standard Inserts Model
| TYPE | Dimension ( mm ) | |||||||||||||
| L | I.C | S | d | r | ||||||||||
| CCMT | ( ISO ) | ( ANSI ) | ||||||||||||
| 060202 | 21.50 | 6.4 | 6.35 | 2.38 | 2.8 | 0.2 | ||||||||
| 060204 | 21.51 | 6.4 | 6.35 | 2.38 | 2.8 | 0.4 | ||||||||
| 09T304 | 32.51 | 9.7 | 9.525 | 3.97 | 4.4 | 0.4 | ||||||||
| 09T308 | 32.52 | 9.7 | 9.525 | 3.97 | 4.4 | 0.8 | ||||||||
| 120404 | 431 | 12.9 | 12.7 | 4.76 | 5.5 | 0.4 | ||||||||
| 120408 | 432 | 12.9 | 12.7 | 4.76 | 5.5 | 0.8 | ||||||||
| TYPE | Dimension ( mm ) | ||||||
| L | I.C | S | d | r | |||
| CNMG | ( ISO ) | ( ANSI ) | |||||
| 090304 | 321 | 9.7 | 9.525 | 3.18 | 3.81 | 0.4 | |
| 90308 | 322 | 9.7 | 9.525 | 3.18 | 3.81 | 0.8 | |
| 120404 | 431 | 12.9 | 12.7 | 4.76 | 5.16 | 0.4 | |
| 120408 | 432 | 12.9 | 12.7 | 4.76 | 5.16 | 0.8 | |
| 160608 | 542 | 16.1 | 15.875 | 6.35 | 6.35 | 0.8 | |
| 190612 | 643 | 19.3 | 19.05 | 6.35 | 7.94 | 1.2 | |
Materials to be cut
steel cutting, stainless steel cutting, cast iron cutting, Aluminum cutting
Main Products
Aluminum turning inserts:
CCGX, DCGX, TCGX, VCGX, SCGX, SEHT, APKT.
Turning inserts:
CNMG, SNMG, TNMG, CCMT, WCMX, DNMG, SNUN, TNGA,
TNUN, WNMG, DCMT, RPMT
Cermets and Ceramics inserts:
SEKN, SPKN, SPRN, SEEN, TNGG, CNMG, SNMG, TNMG, CCMT, DNMG, WNUN,
WNMG
Milling inserts:
SEKN, SPKN, RDKW, RPMW, TPCN, TPKN, TPAN, APKT, APKT
