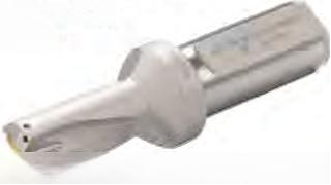

10-13.9mm Diameter Insertable U Drill Dx2 Machining Tool U Drill

2
MOQ
10—416 USD
Price
10-13.9mm Diameter Insertable U Drill Dx2 Machining Tool U Drill
Features Gallery Product Description Chat Now
Features
Specifications
Effective Length: 2D 3D 4D 5D
Function: Hole Machining Tools
Application: Drilling
Shank Type: Straight Shank
Diameter Range (mm): 10-13.9
Usage: CNC Machine
Surface Treatment: Black Oxide
Suitable Workpiece: Steel, Cast Iron, Aluminum
Highlight:

10mm Diameter Machining Tool U Drill

,

Dx2 Machining Tool U Drill

,

Dx2 Insertable U Drill
Basic Infomation
Place of Origin: China
Brand Name: ARNOLD
Certification: ISO9001:2000
Payment & Shipping Terms
Packaging Details: standard packaging
Delivery Time: negotiable
Supply Ability: 100000 sets per month
Product Description

Product Description:

U Drill, sometimes referred to as an Indexable Insert Drill or Insert-Type Drill, is a top-tier drilling instrument meticulously crafted to optimize hole-making processes in contemporary CNC machining settings. The tool marries the sturdiness of a solid body with the flexibility of interchangeable carbide inserts, delivering enhanced productivity and economical benefits.



Features:



Features:

Indexable Inserts: Equipped with two or more replaceable carbide inserts, which eliminate the need for regrinding and reduce tool change time.

Multiple Length Options: Available in standard drilling depths such as 2×D, 3×D, 4×D, and 5×D.

Internal Coolant Channels: Provides through-tool coolant delivery for effective chip evacuation and improved tool life.

High Rigidity: The robust shank design ensures high rigidity and vibration resistance, suitable for high-speed machining.

Cost-Effective: Only the inserts need to be replaced, significantly lowering tooling costs over time.

Versatile Material Application: Suitable for machining steel, stainless steel, cast iron, aluminum alloys, and exotic materials.



Technical Parameters:

10-13.9mm Diameter Insertable U Drill Dx2 Machining Tool U Drill 0





Dx2





Cat.No



 ( m m )





Insert





Wrench





Screw



D



L



L1



L2



L3



d



WC14-02D-C25

WC14.5-02D-C25



14

14.5



106



50



45



28









25









WCMX

030208









M2.5X5









T8



WC 15-02D-C25

WC 15.5-02D-C25



15

15.5



108



52



46.5



30



WC 16-02D-C25

WC 16.5-02D-C25



16

16.5



111



55



49.5



32



WC 17-02D-C25

WC17.5-02D-C25



17

17.5



113



57



51.5



34



WC 18-02D-C25

WC 18.5-02D-C25



18

18.5



115



59



53.5



36



WC 19-02D-C25

WC 19.5-02D-C25



19

19.5



116



60



54.5



38



WC20-02D-C25

WC20.5-02D-C25



20

20.5



119



63



57.5



40







25





WCMX

040208









M2.5X6









T8



WC21-02D-C25

WC21.5-02D-C25



21

21.5



121



65



59.5



42



WC 22-02D-C25

WC 22.5-02D-C25



22

22.5



120



64



58.5



44



WC23-02D-C25

WC23.5-02D-C25



23

23.5



125



69



63.5



46



WC24-02D-C25

WC 24.5-02D-C25



24

24.5



127



71



65.5



48



25







WCMT

050308







M3.0X7







T10



WC25-02D-C32

WC25.5-02D-C32

WC26-02D-C32

WC27-02D-C32

WC28-02D-C32

WC29-02D-C32

WC 30-02D-C32



25

25.5

26

27

28

29

30



135

139

141

141

143

145



75

79

81

81

83

85



69

73

75

75

77

79



50

52

54

56

58

60





32



WC31-02D-C32

WC32-02D-C32

WC33-02D-C32

WC34-02D-C32

WC35-02D-C32

WC 36-02D-C32

WC37-02D-C32

WC38-02D-C32

WC39-02D-C32

WC40-02D-C32

WC41-02D-C32



31

32

33

34

35

36

37

38

39

40

41



145

147

149

151

153

155

159

161

161

163

165



85

87

89

91

93

95

99

101

101

103

105



79

81

83

85

87

89

93

95

95

97

99



62

64

66

68

70

72

74

76

78

80

82









32











WCMT

06 T308











M3.5X8











T15



WC42-02D-C40

WC 43-02D-C40

WC44-02D-C40

WC45-02D-C40

WC46-02D-C40

WC47-02D-C40

WC48-02D-C40

WC49-02D-C40

WC50-02D-C40

WC51-02D-C40

WC52-02D-C40

WC53-02D-C40

WC54-02D-C40

WC55-02D-C40

WC56-02D-C40

WC57-02D-C40

WC58-02D-C40

WC59-02D-C40

WC60-02D-C40



42

43

44

45

46

47

48

49

50

51

52

53

54

55

56

57

58

59

60



182

184

186

188

190

192

194

196

198

200

202

204

206

208

210

212

214

216

220



112

114

116

118

120

122

124

126

128

130

132

134

136

138

140

142

144

146

150



106

108

110

112

114

116

118

120

122

124

126

128

130

132

134

136

138

140

144



84

86

88

90

92

94

96

98

100

102

104

106

108

110

112

114

116

118

120















40















WCMT

080412

















M4.0X10

















T15



Applications:



Typical Applications:

1. High-efficiency drilling in CNC lathes and machining centers

2. Rough boring operations

3. Pre-machining for reaming or finishing boring

4. Large diameter hole machining (usually Ø14 mm and above)
