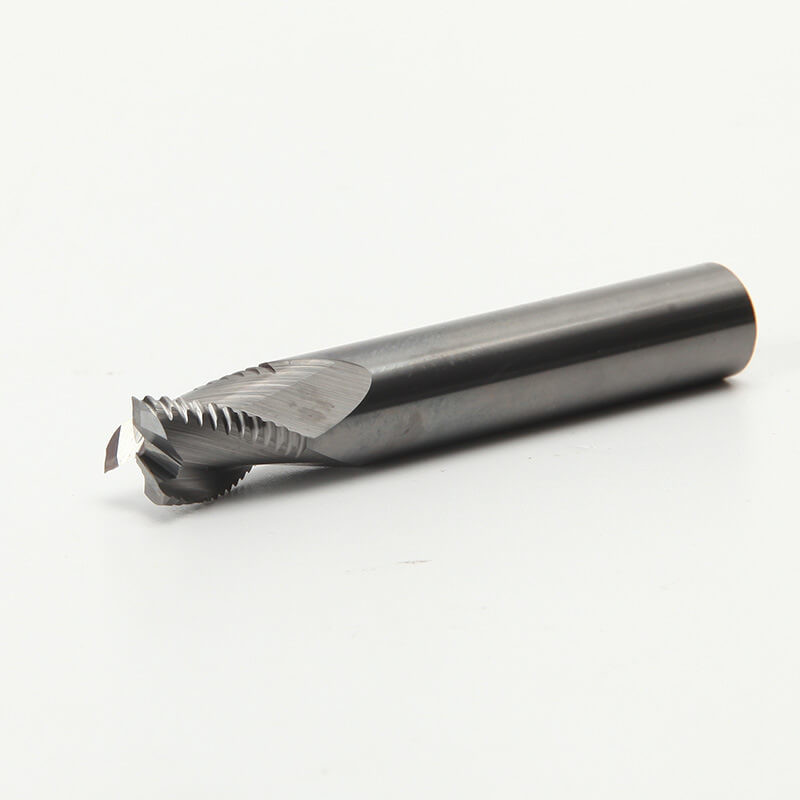

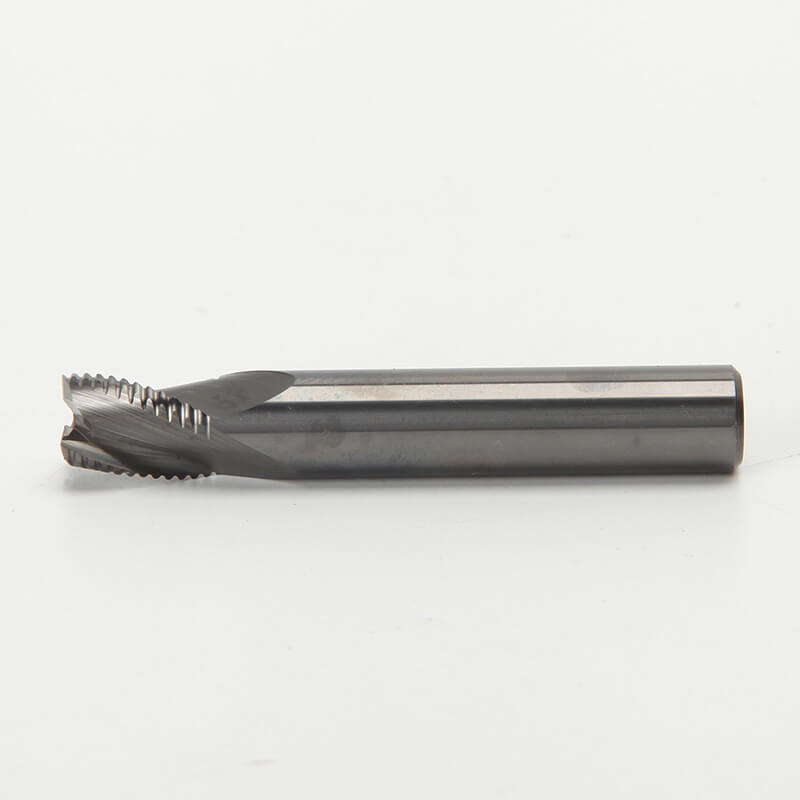

Solid Carbide Roughing End mills, Rough End Mills for Roughing Cutting Aluminium
|
Material |
tungsten carbide |
|
TRS |
>3600 N/mm2 |
|
HRA |
91.8-92.4, HRC:45/55/60/65 |
|
Grain size |
0.2-0.6μm |
|
Helix angle |
30°-45 ° |
|
Diameter of cutting edge |
4m-20mm |
|
Size |
Diameter 4.0mm-20mm standard and non-standard. |
|
Cutting Form |
Roughing |
|
Type of flute |
2/4/6 flutes |
|
Product Name |
Solid Carbide Roughing End mills, Rough End Mills for Roughing Cutting Aluminium |
|
BRAND |
Blue Rock |
|
Material |
Solid Carbide |
|
Coating |
Aluminium cutting without coating |
|
HRC |
45-70 |
|
Type |
Solid Carbide End Mills |
|
Helix Angle |
35 degree |
|
Suitable for |
Aluminium |
|
|
|
Materials of tungsten carbide Roughing End mills:
|
HRC45 |
HRC55 |
HRC60 |
HRC65 |
|
YG10X |
YG10.2&WF25(Taiwan) |
K44&K40(Germany) |
H10F(Sweden) |
|
Grain size: 0.7um |
Grain size: 0.6um |
Grain size: 0.5um |
Grain size: 0.5um |
|
Co: 10% |
Co: 10% |
Co: 12% |
Co: 10% |
|
Flexural strength: 3320N/mm² |
Flexural strength: 4000N/mm² |
Flexural strength: 4300N/mm² |
Flexural strength: 4300N/mm² |
Advantage
1: Different Hardness based on client's requirement
2: sutiable for various steel process , tooling process , Alloy Aluminium process and cast iron process.
3: Talented and well-trained employees.
4: we also accept client's requirement of non-standard size.
more sizes on end mils also for cutting aluminium
|
Code No.
|
Diamter d |
Cutting length l |
Total length L |
Shank D |
Flutes Z |
| 3GW4-01002050 | 1 | 3 | 50 | 4 | 2 |
| 3GW4-01504050 | 1.5 | 4 | 50 | 4 | 2 |
| 3GW4-02050500 | 2 | 5 | 50 | 4 | 2 |
| 3GW4-02507050 | 2.5 | 7 | 50 | 4 | 2 |
| 3GW4-03008050 | 3 | 8 | 50 | 4 | 2 |
| 3GW4-04010050 | 4 | 10 | 50 | 4 | 2 |
| 3GW4-04015075 | 4 | 15 | 75 | 4 | 2 |
| 3GW4-04020100 | 4 | 20 | 100 | 4 | 2 |
| 3GW4-05012050 | 5 | 13 | 50 | 6 | 2 |
| 3GW4-06015050 | 6 | 15 | 50 | 6 | 2 |
| 3GW4-06020075 | 6 | 20 | 75 | 6 | 2 |
| 3GW4-06020100 | 6 | 30 | 100 | 6 | 2 |
| 3GW4-06020060 | 8 | 20 | 60 | 8 | 2 |
| 3GW4-08025075 | 8 | 25 | 75 | 8 | 2 |
| 3GW4-08025100 | 8 | 35 | 100 | 8 | 2 |
| 3GW4-010025075 | 10 | 25 | 75 | 10 | 2 |
| 3GW4-010040100 | 10 | 40 | 100 | 10 | 2 |
| 3GW4-012020075 | 12 | 30 | 75 | 12 | 2 |
| 3GW4-012040100 | 12 | 40 | 100 | 12 | 2 |
| 3GW4-014020080 | 14 | 30 | 80 | 14 | 2 |
| 3GW4-014100100 | 14 | 40 | 100 | 14 | 2 |
| 3GW4-016040100 | 16 | 40 | 100 | 16 | 2 |
| 3GW4-018040100 | 18 | 40 | 100 | 18 | 2 |
| 3GW4-020040100 | 20 | 40 | 100 | 20 | 2 |
| 3GW4-06040150 | 6 | 40 | 150 | 6 | 2 |
| 3GW4-08050150 | 8 | 50 | 150 | 8 | 2 |
| 3GW4-010050150 | 10 | 50 | 150 | 10 | 2 |
| 3GW4-012050150 | 12 | 50 | 150 | 12 | 2 |
| 3GW4-014060150 | 14 | 60 | 150 | 14 | 2 |
| 3GW4-016060150 | 16 | 60 | 150 | 16 | 2 |
| 3GW4-018060150 | 18 | 60 | 150 | 18 | 2 |
| 3GW4-020060150 | 20 | 60 | 150 | 20 | 2 |
