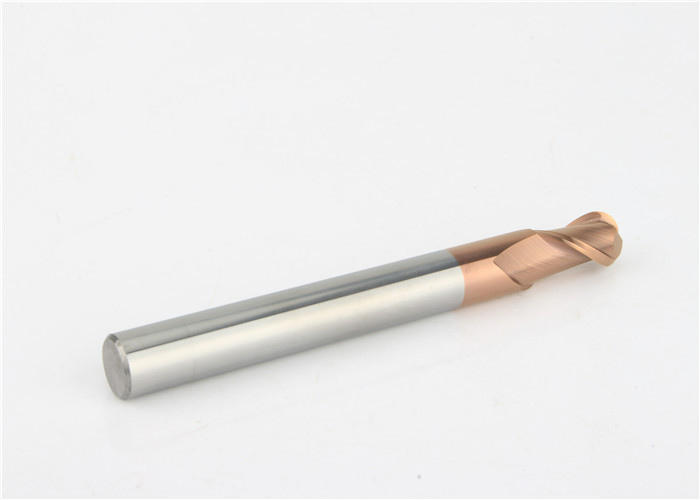

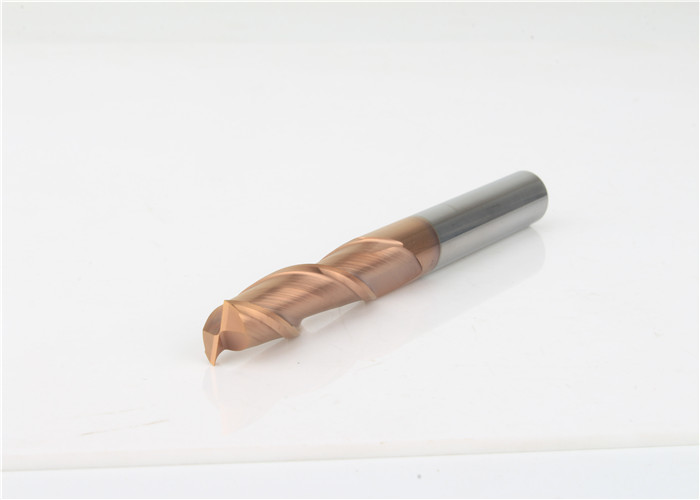

Milling Cutter Tools Ball Nose End Mills Solid Carbide For CNC Machines And Lathes
1. Products Description
Micro grain raw material
Grain size: 0.4-0.6μm
Co 10%, 12%
TRS >3600 N/mm2
Hardness HRA 91.8-92.5
Work piece HRC45-50 HRC55-60 HRC65 HRC70
Helix angle 30°-45 °
Diameter of cutting edge 0.2-0.9 mm; 1-20 mm
Diameter of rods 4-20 mm
Length 50-100 mm
Cutting Form Flat, Square, Ball nose, Corner Radius, Taper Flute, etc
Flutes No. 1-7
| HRC45 | HRC55 | HRC60 | HRC65 |
| Grain Size: 0.6um Co: 10 % Flexural strength: 3350N/mm2 |
Grain Size: 0.6um Co: 10 % Flexural strength: 4000N/mm2 |
Grain Size: 0.5um Co: 12 % Flexural strength: 4300N/mm2 |
Grain Size: 0.4um Co: 12.5 % Flexural strength: 4300N/mm2 |
2. Shipment
FedEx, TNT, DHL, UPS, EMS, etc.
The port is Beijing, Shanghai, Guangzhou, Shenzhen, any port in China. (choose your convenient way)
3. Super coating
| Item | AlTiN | TiAIN | TiSiN | nACo |
| Hardness(HV) | 3200 | 2800 | 3600 | 42(GPA) |
| Thickness(UM) | 2.5-3 | 2.5-3 | 3 | 3 |
| Oxidation Temp(°) | 900 | 800 | 1000 | 1200 |
| Friction Coeffient | 0.3 | 0.3 | 0.45 | 0.4 |
| Color | Black | Violet | Copper | Blue |
4. Standard Sizes
| Order No. | Flute dia (d) | Cutting length ( l ) | Shank dia (D) | Overall length(L) |
| 1.0×2.5×4D×50L | 1.0 | 2.5 | 4 | 50 |
| 1.5×4×4D×50L | 1.5 | 4 | 4 | 50 |
| 2.0×5×4D×50L | 2.0 | 5 | 4 | 50 |
| 2.5×7×4D×50L | 2.5 | 7 | 4 | 50 |
| 3.0×8×4D×50L | 3.0 | 8 | 4 | 50 |
| 3.5×10×4D×50L | 3.5 | 10 | 4 | 50 |
| 4.0×10×4D×50L | 4 | 10 | 4 | 50 |
| 4.5×11×6D×50L | 4.5 | 11 | 6 | 50 |
| 5.0×13×6D×50L | 5.0 | 13 | 6 | 50 |
| 5.5×13×6D×50L | 5.5 | 13 | 6 | 50 |
| 6.0×15×6D×50L | 6.0 | 15 | 6 | 50 |
| 6.5×15×8D×60L | 6.5 | 15 | 8 | 60 |
| 7.0×17×8D×60L | 7.0 | 17 | 8 | 60 |
| 7.5×17×8D×60L | 7.5 | 17 | 8 | 60 |
| 8.0×20×8D×60L | 8.0 | 20 | 8 | 60 |
| 8.5×25×10D×75L | 8.5 | 25 | 10 | 75 |
| 9.0×25×10D×75L | 9.0 | 25 | 10 | 75 |
| 9.5×25×10D×75L | 9.5 | 25 | 10 | 75 |
| 10.0×25×12D×75L | 10.0 | 25 | 12 | 75 |
| 10.5×25×12D×75L | 10.5 | 25 | 12 | 75 |
| 11.0×28×12D×75L | 11.0 | 28 | 12 | 75 |
| 11.5×28×12D×75L | 11.5 | 28 | 12 | 75 |
| 12.0×30×12D×75L | 12.0 | 30 | 12 | 75 |
| 13.0×33×16D×100L | 13.0 | 33 | 16 | 100 |
| 14.0×40×16D×100L | 14.0 | 40 | 16 | 100 |
| 15.0×40×16D×100L | 15.0 | 40 | 16 | 100 |
| 16.0×40×16D×100L | 16.0 | 40 | 16 | 100 |
| 17.0×40×20D×100L | 17.0 | 40 | 20 | 100 |
| 18.0×40×20D×100L | 18.0 | 40 | 20 | 100 |
| 19.0×40×20D×100L | 19.0 | 40 | 20 | 100 |
| 20.0×40×20D×100L | 20.0 | 40 | 20 | 100 |
5. Coating
| Coating | Color | Coating Temperature | Thickness (um) | HV | Application Temperature | Friction coefficient |
| TiAlN | Purple-Gray | <600°C | 3-5 | 3300 | 800 °C | 0.3 |
| AiTiN | Black | <600°C | 3-5 | 3500 | 900 °C | 0.3 |
| TiXco | Copper | <600°C | 3-5 | 3500 | 1500 °C | 0.4 |
| NaNo | Blue | <600°C | 3-5 | 3800 | 1200 °C | 0.4 |
| AiCrN | Silver Gray | <480 °C | 2-2.5 | 2500 | 700 °C | 0.3 |
6.Machining Operation of Tungsten Carbide Solid Endmill cutter bits
| Ball nose end mills | profile machining | profile machining | slot machining | deep slot machining |
| R end mills | side machining | slot machining | profile machining | |
| Flattened end mills | side machining | shoulder machining | straight slot machining | deep slot machining |
7. Shipment
FedEx, TNT, DHL, UPS, EMS, etc.
The port is Beijing, Shanghai, Guangzhou, Shenzhen, any port in China. (choose your convenient way)
8.Our Services
More than 2000 products are available. Assembly line production, high standard and strict requirements.
OEM Services Offered
Customized Tools Offered
Free laser marking on tools and boxes Offered
Fast delivery time and Convenient Transportations. We have discount on shipping cost from our courier companies, such as FedEx, DHL, TNT, UPS etc.
9. Common Problems
(1)Are you manufacturer? Do you have factory?
We are not Professional manufacturer, but we have more than 20 years experience with excellent manufacturer cooperation in this field.
(2)Will you give me a sample?
You can arrange transportation. We can provide samples.
(3) Do you make label?
Yes, we do. We have laser machine, can laser your logo and sizes on the body of milling cutter, also can print labels.
(4) How about the delivery time?
According to the sizes and quantity, delivery time is different. Usually be 3~5 days. We can tell you exact inventory state if you need.
(5) Can you produce carbide Special Tool ?
Yes We can. We can special tool according your drawing and sample.
10. Why Choose Grewin Tools?
(1) The company has more than 20 years' experience in manufacture, design and sale of various kinds of carbide products
(2) High precision CNC machines, high standard and strict inspection
(3) Strong R&D center and QC teams meet your special demands
(4) The company has passed ISO 9001: 2008 quality system
(5) Possesses advanced production equipments, complete testing instruments
(6) Fast delivery time and Convenient Transportations
(7) More than 1000 products are available
(8) For your suggestions or complaints, We will handle them Soonest
(9)Nonstandard products are available according to customer's drawing or customer's sample.
(10)We olso design and manufacture products,according to the request of customer's.
(11)If you have any questions,please cantact me anytime,JINOO will warmly welcome your inquiry.
Warmly Welcome your contact and inquiry here!
