6mm CNC End Mill 45 Degree Tungsten Carbide Aluminum Cutting Endmills
10pcs
MOQ
negotiable
Price
6mm CNC End Mill 45 Degree Tungsten Carbide Aluminum Cutting Endmills
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: Zhuzhou--Carbide City
Brand Name: Whitout Brand
Certification: ISO9001, SGS
Model Number: As your requirements
High Light:

6mm CNC End Mill

,

CNC End Mill 45 Degree

,

Carbide Aluminum Cutting Endmills

Payment & Shipping Terms
Packaging Details: 1PCS in a plastic tube, 10 PCS per group
Delivery Time: 15-25 work days
Payment Terms: T/T, PAYPAL, WESTERN UNION
Supply Ability: 50000pcs/Month
Specifications
Machine Type: WALTER ROLLOMATIC ANCA
Size: Metric And Inch
Place Of Origin: ZHUZHOU
Chemical Composition: 6%-12%Co-Wc
Coating: No
Workpiece Material: Aluminum
Product Description

6mm 2 Flute 45 Degree Tungsten Carbide Aluminum milling cutter

Micro grain raw material
Grain size: 0.4-0.6μm
Co 10%, 12%
TRS >3600 N/mm2
Hardness: HRA 91.8-92.5
HRC Rage: HRC45-50 HRC55-60 HRC65 HRC68
Helix angle: 30°-45 °
Diameter of cutting edge: 0.2-0.9 mm; 1-20 mm
Diameter of rods: 3-20 mm
Length: 50-150 mm, customized
Cutting Form: Flat, Square, Ball nose, Corner Radius, Taper Flute, etc
Flutes No.: 1-7

HRC choice: HRC38-45, HRC50-55
※Without polishing ※with polishing
Materials to be cut: Aluminum



CoatingColorCoating TemperatureThickness (um)HVApplication TemperatureFriction coefficient
TiAlNPurple-Gray<600°C3-53300800 °C0.3
AiTiNBlack<600°C3-53500900 °C0.3
TiXcoCopper<600°C3-535001500 °C0.4
NaNoBlue<600°C3-538001200 °C0.4
AiCrNSilver Gray<480 °C2-2.52500700 °C0.3



Standard Sizes:

Order No.Flute dia (d)Cutting length ( l )Shank dia (D)Overall length(L)
1.0×2.5×4D×50L1.02.5450
1.5×4×4D×50L1.54450
2.0×5×4D×50L2.05450
2.5×7×4D×50L2.57450
3.0×8×4D×50L3.08450
3.5×10×4D×50L3.510450
4.0×10×4D×50L410450
4.5×11×6D×50L4.511650
5.0×13×6D×50L5.013650
5.5×13×6D×50L5.513650
6.0×15×6D×50L6.015650
6.5×15×8D×60L6.515860
7.0×17×8D×60L7.017860
7.5×17×8D×60L7.517860
8.0×20×8D×60L8.020860
8.5×25×10D×75L8.5251075
9.0×25×10D×75L9.0251075
9.5×25×10D×75L9.5251075
10.0×25×12D×75L10.0251275
10.5×25×12D×75L10.5251275
11.0×28×12D×75L11.0281275
11.5×28×12D×75L11.5281275
12.0×30×12D×75L12.0301275
13.0×33×16D×100L13.03316100
14.0×40×16D×100L14.04016100
15.0×40×16D×100L15.04016100
16.0×40×16D×100L16.04016100
17.0×40×20D×100L17.04020100
18.0×40×20D×100L18.04020100
19.0×40×20D×100L19.04020100
20.0×40×20D×100L20.04020100
25.0×40×25D×100L25.04025100

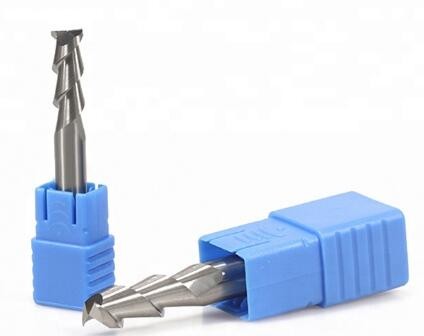

6mm CNC End Mill 45 Degree Tungsten Carbide Aluminum Cutting Endmills 0
