End Mill Tungsten Carbide Rod PCB Dril D1-30X330mm ISO Certification
10pcs
MOQ
negotiable
Price
End Mill Tungsten Carbide Rod PCB Dril D1-30X330mm ISO Certification
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: Zhuzhou--Carbide City
Brand Name: Whitout Brand
Certification: ISO9001, SGS
Model Number: As your requirements
High Light:

End Mill Tungsten Carbide Rod

,

PCB Tungsten Carbide Rod

,

30X330mm tungsten carbide drill

Payment & Shipping Terms
Packaging Details: 1PCS in a plastic tube, 10 PCS per group
Delivery Time: 15-25 work days
Payment Terms: T/T, PAYPAL, WESTERN UNION
Supply Ability: 50000pcs/Month
Specifications
Material: Tungsten Carbide
Sizes: D1-30X330mm
Tolerance: H6 , H7,etc.
Grade: Yg6, Yg8, Yg10, Yl10.2, Yg12,Yg15
Precision: High Precision
Usage: End Mill , Drill Bit , Hand Tools , Etc.
Product Description

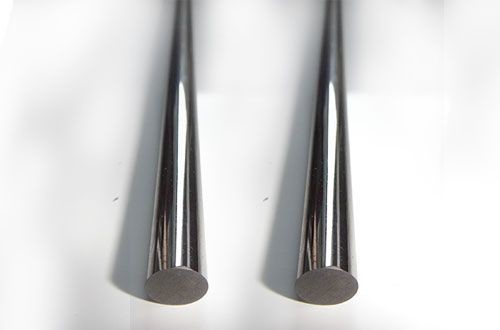

Cemented carbide rod,Tungsten carbide rod,PCB drill,Endmill rod

Description

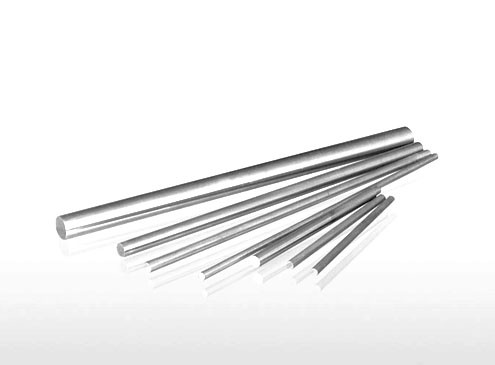

※ Tungsten carbide rods diameter from 1mm-45mm, length from 50mm-1000mm
※ One coolant hole rods diameter from 3mm -30mm, length is 330mm
※ Two coolant holes rods diameter from 4mm -20mm, length is 330mm
※ Two spiral coolant hole with 30 degree, diameter from 6mm -20mm, length is 330mm


1. HIP sintered
2. various grades and sizes
3. very good price, discount for large quantity.
4. fast delivery
5. high precision ground


Applications

Used for milling and drilling steel, cast iron and aluminum under HRC45. For making twist drills, end mills.
Used for low speed of milling and drilling on materials under HRC45. For making twist drills, end mills.
Used for steel, cast iron, and aluminum with HRC50. For making drills, end mills, reamers, and taps.
Used for titanium, harden steel, stainless steel with HRC55. For making high speed end mills and reamers.


Specifications

End Mill Tungsten Carbide Rod PCB Dril D1-30X330mm ISO Certification 0

Unground


h6


L


Tol.

Unground


h6


L


Tol.

D Tol. D Tol.
Ø2.2 +0.3/+0 2.0 330 +5/+0 Ø17.2 +0.3/+0 17 330 +5/+0
Ø3.2 +0.3/+0 3.0 330 +5/+0 Ø18.2 +0.3/+0 18 330 +5/+0
Ø4.2 +0.3/+0 4.0 330 +5/+0 Ø19.2 +0.3/+0 19 330 +5/+0
Ø5.2 +0.3/+0 5.0 330 +5/+0 Ø20.2 +0.3/+0 20 330 +5/+0
Ø6.2 +0.3/+0 6.0 330 +5/+0 Ø21.2 +0.3/+0 21 330 +5/+0
Ø7.2 +0.3/+0 7.0 330 +5/+0 Ø22.2 +0.3/+0 22 330 +5/+0
Ø8.2 +0.3/+0 8.0 330 +5/+0 Ø23.2 +0.3/+0 23 330 +5/+0
Ø9.2 +0.3/+0 9.0 330 +5/+0 Ø24.2 +0.3/+0 24 330 +5/+0
Ø10.2 +0.3/+0 10.0 330 +5/+0 Ø25.2 +0.3/+0 25 330 +5/+0
Ø11.2 +0.3/+0 11.0 330 +5/+0 Ø26.2 +0.3/+0 26 330 +5/+0
Ø12.2 +0.3/+0 12.0 330 +5/+0 Ø27.2 +0.3/+0 27 330 +5/+0
Ø13.2 +0.3/+0 13.0 330 +5/+0 Ø28.2 +0.3/+0 28 330 +5/+0
Ø14.2 +0.3/+0 14.0 330 +5/+0 Ø29.2 +0.3/+0 29 330 +5/+0
Ø15.2 +0.3/+0 15.0 330 +5/+0 Ø30.2 +0.3/+0 30 330 +5/+0
Ø16.2 +0.3/+0 16.0 330 +5/+0
