Product introduction :
Tungsten carbide rods are used for the production of drill bits, end mills, cutter, reamers, carving knife, anti-vibration tool holder and other products.
According to different processing field, such as processing of normal alloy steel, gray cast iron, stainless steel and heat-resistant alloy materials; finishing and processing of aluminum alloy, titanium alloy; processing of hardened steel, aluminum alloy, carbide rod should choose different grade
Stability and high technology ensure the high quality of our products. With its unique properties, carbide rod is widely used in high-speed railway, aerospace, electronic components and machinery.
Specification of cemented carbide rods:
1. Material: used for 100% tungsten carbide raw material
2. Grade: YG6, YG8, YL10.2
3. Diameter : 0.1mm to 40mm
4. Length :330mm
5. Surface: polishing, grinded , blank
6. High quality and best price
Application of cemented carbide rods:
Suitable for making variety of drill bits , printed circuit board, processing special cutters, integral vertical milling cutter, graver and etc.
Besides , it can be used for making of cemented carbide stamping head, core bar and perforation tools.
Recommanded grades to your refer:
| Grade | ISO range | Cobalt % | Density g/cm3 |
Hardness HRA |
TRS N/mm2 |
| YG8 | K30 | 8 | 14.80 | 89.5 | 2200 |
| YG6 | K20 | 6 | 14.95 | 90.5 | 1900 |
| YG6X | K10 | 6 | 14.95 | 91.5 | 1800 |
| YL10.2 | K30 | 10 | 14.50 | 91.8 | 2400 |
| YG13X | K30-K40 | 13 | 14.30 | 89.5 | 2600 |
| YG15 | K40 | 15 | 14.00 | 87.5 | 2800 |
sizes and polished details
| Diameter(mm) | Length(mm) | grinding and polishing |
| 0.3~1.0 | 5~330 | h6,h7,H6 or H7 |
| 1.0~3.0 | 5~330 | h6,h7,H6 or H7 |
| 4.0~80 | 5~1000 | h6,h7,H6 or H7 |
| D(mm) | Max.Concentricity | L(mm) | Tolerance of length |
| 2.5 | 0.2 | 330 | 0~＋5.0 |
| 4 | 0.2 | 331 | 0~＋5.0 |
| 6 | 0.2 | 332 | 0~＋5.0 |
| 8 | 0.2 | 333 | 0~＋5.0 |
| 10 | 0.25 | 334 | 0~＋5.0 |
| 12 | 0.25 | 335 | 0~＋5.0 |
| 14 | 0.25 | 336 | 0~＋5.0 |
| 16 | 0.25 | 337 | 0~＋5.0 |
| 18 | 0.3 | 338 | 0~＋5.0 |
| 20 | 1.3 | 339 | 0~＋5.0 |
| 22 | 2.3 | 340 | 0~＋5.0 |
| 24 | 3.3 | 341 | 0~＋5.0 |
| 26 | 4.3 | 342 | 0~＋5.0 |

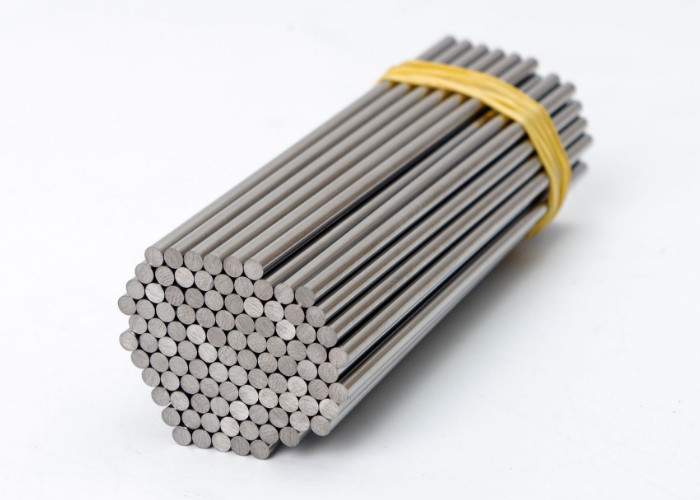

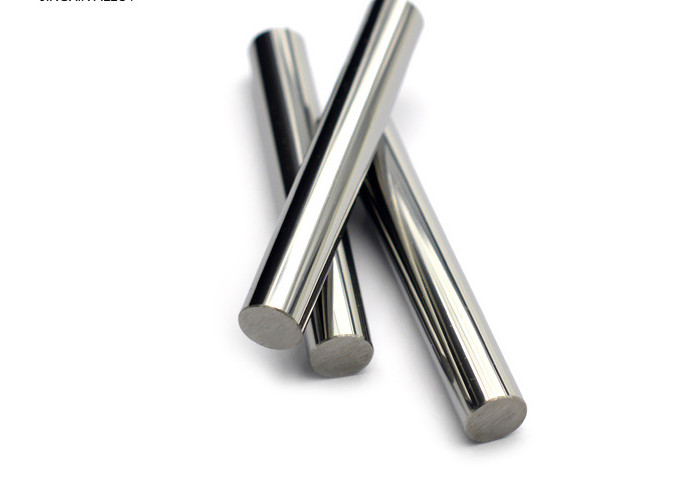

Product show
