Carbide End Mill Square Milling Cutter Tools for Aluminum
Product Description:
Light -Alloy Cutting-End mills
Suit the automotive parts and engines, motorcycles, and bicycle industries and other Aluminum Processing Industrial.
Made by All Imported CNC Grinding Machines , which from Australia, German, TaiWan .
Raw Material
| HRC45 | HRC55 | HRC60 | HRC65 |
Grain Size:0.7um
Co:10 %
Flexural strength:3320N/mm2 | Grain Size:0.6um
Co:10 %
Flexural strength:4000N/mm2 | Grain Size:0.5um
Co:12 %
Flexural strength:4300N/mm2 | Grain Size:0.4um
Co:12.5 %
Flexural strength:4300N/mm2 |
SIZE:
D=diameter * H=blade length * d=shank length * L=overall length
Spuer Particle Tungsten steel coating 2Flute ball mill(Standard length type,Extended Type)| D | d | L1 | L | | R0.5 | 4 | 2 | 50 | | R1 | 4 | 4 | 50 | | R1.5 | 4 | 6 | 50 | | R1.5 General | 3 | 6 | 50 | | R2 | 4 | 8 | 50 | | R2 Extended type | 4 | 8 | 75 | | R2 Extended type | 4 | 8 | 100 | | R2.5 | 6 | 10 | 50 | | R3 | 6 | 12 | 50 | | R3 Extended type | 6 | 12 | 75 | | R3 Extended type | 6 | 12 | 100 | | R4 | 8 | 16 | 60 | | R4Extended type | 8 | 16 | 75 | | R4Extended type | 8 | 16 | 100 | | R5 | 10 | 20 | 75 | | R5 Extended type | 10 | 20 | 100 | | R6 | 12 | 24 | 75 | | R6 Extended type | 12 | 24 | 100 | | R8 | 16 | 32 | 100 | | R10 | 20 | 40 | 100 |
|

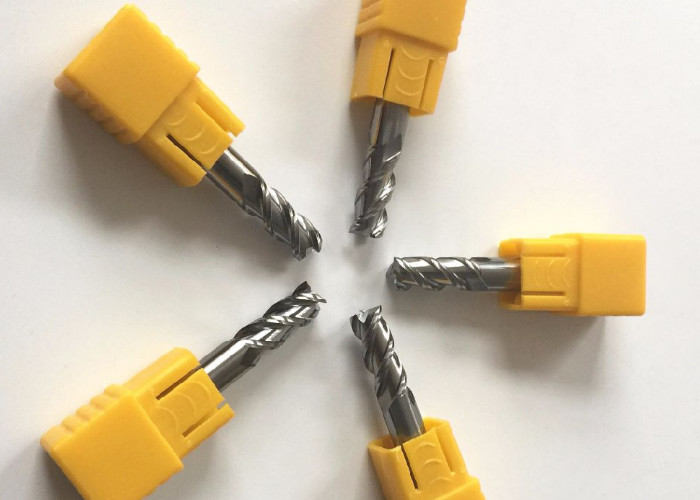

Product show

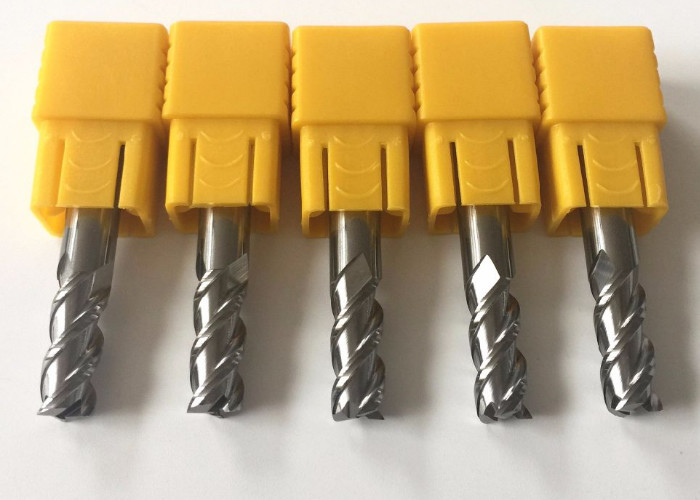

Product detail display:
characteristic:
1. The use of high-quality new side, smooth surface, the edge of special fine grinding wheel grinding, 200 times smaller than the lack of pores, the coating has a better life and more hardness!
2.Superfine tungsten steel substrate with high strength and wear resistance, can be processed in the following materials 55HRC direct rough processing and finishing.
3. 3 flute cutter mainly milling aluminum,
4.Tolerance in the 0-0.02 negative front angle design, taking into account the edge strength and sharpness, with a large core design, enhanced tool steel, pinch and pin more stable, reduce tool replacement time, improve machine movement speed, save the production process.
5. Blade angle to take the latest technology, strict scientific design of the groove, so that the tool wear and cutting strength to achieve the perfect combination.
Company Information:
Zhuzhou Grewin Tungsten Carbide Tools Co., Ltd is located in hometown of Chinese carbide industry - Zhuzhou city. The company has more than 20 years' experience in manufacture, design and sale of various kinds of carbide products, main products include: Carbide end mills, carbide rods, indexable inserts, brazed inserts, wire drawing dies, forging dies, wood working tools, saw tips, mining buttons, etc
The company has passed ISO 9001: 2008 quality system, possesses advanced production equipments, complete testing instruments, strong R&D center and QC teams.
With excellent quality, strong technical support, and good after sales service, Grewin Carbide brand products are sold to more than 50 countries in the world, such as Europe, USA, south east Asia, Middle East, south America, etc.
The company is dedicated to " WE GROW, WE WIN". Grewin Carbide is growing up with the World's carbide technology, to meet the demand of our customers from all over the world.
Waiting for your kindly inquiry!
