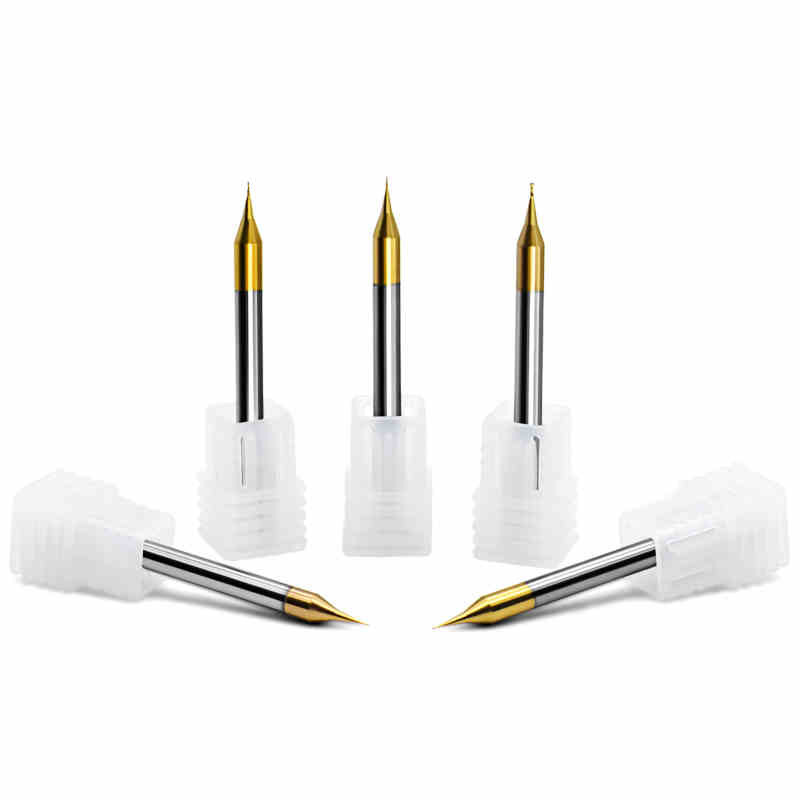

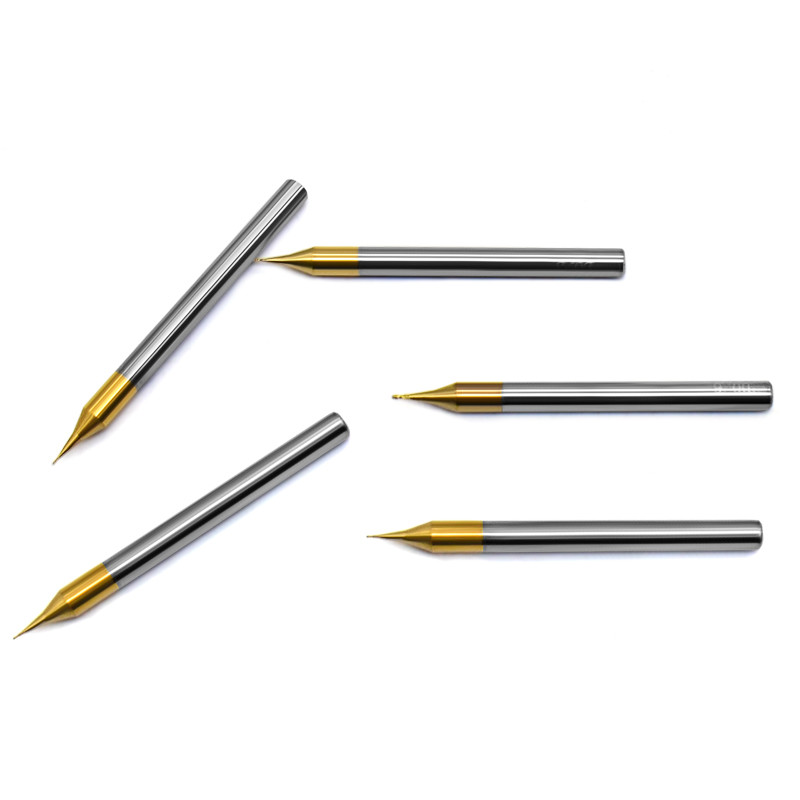

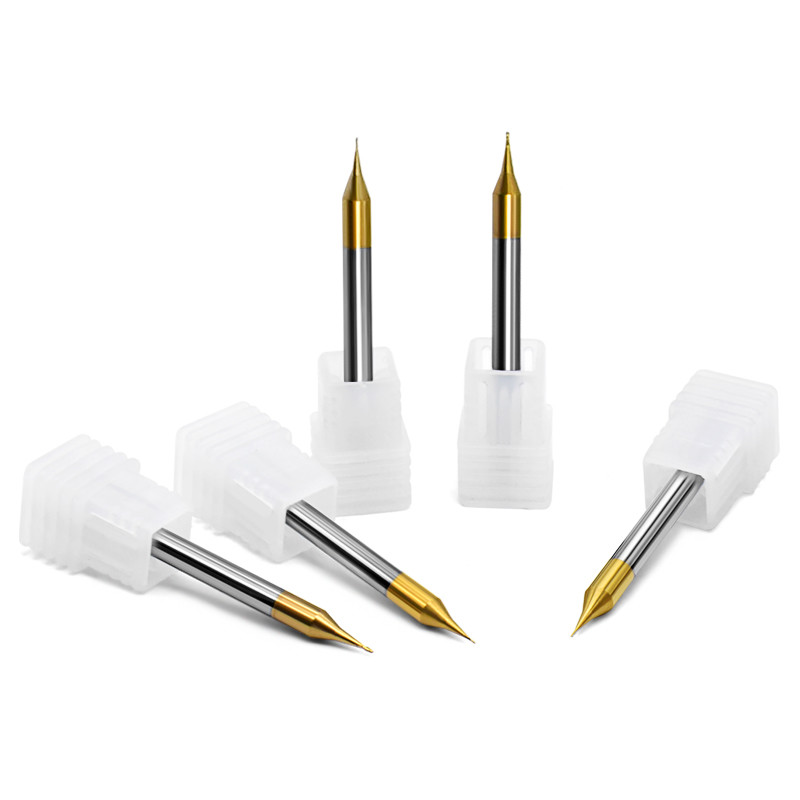

Micro Solid Carbide Ball Nose End Mills AlTiN CNC Engraving Cutter
10pcs
MOQ
negotiable
Price
Micro Solid Carbide Ball Nose End Mills AlTiN CNC Engraving Cutter
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: Zhuzhou--Carbide City
Brand Name: Whitout Brand
Certification: ISO9001, SGS
Model Number: As your requirements
High Light:

Micro Carbide Ball Nose End Mills

,

SGS Carbide Ball Nose End Mills

,

AlTiN CNC Engraving Cutter

Payment & Shipping Terms
Packaging Details: 1PCS in a plastic tube, 10 PCS per group
Delivery Time: 15-25 work days
Payment Terms: T/T, PAYPAL, WESTERN UNION
Supply Ability: 50000pcs/Month
Specifications
Material: Tungsten Cobalt Alloy
Coating: AlTiN
Type: Standard Or Custom End Mill
Diameter: 1-20mm,0.5-20mm,1-20 Mm,D3 - 16mm,3.175mm 4mm 6mm
Overall Length: 50-150mm,38.5-60mm,50-100
Product Name: Solid Carbide Taper Ball Nose End Mill/CNC Cutting Tools For Wood,cnc Solid Carbide End Mill Cutting Tools For Stainless Steel,CENTER Tungsten Carbide Ball Head Cutting Tools Cnc End Mill,Carbide Single Flute Spiral End Mill For Milling Cutter,BFL Solid Ca
Flute: Single Flutes,2-6 Flutes
Hrc: 45/55/60/65
Usage: General High Speed Cutting,Milling,Shallow Slot,CNC Milling Machine,etc
Product Description



1. Products Description

Products Name Carbide endmill cutter
Work piece HRC45 , HRC55 , HRC60 , HRC65 , HRC68
Coating Type ALTIN , TiAIN ,Ticn ,Tin ,Tialn ,Uncoated
Size Standard sizes or customized sizes
Logo According your requests
TRS >3600 N/mm2
Hardness HRA 91.8-92.5
Helix angle 30°-45 °
Diameter of cutting edge 0.2-0.9 mm; 1-20 mm
Length 50,60-100 mm
Flutes No. 2/3/4/5/6,etc
Cutting Form Flat, Square, Ball nose, Corner Radius, Long neck,Roughing,etc
MOQ 10pcs
Samples time 7 dyas
OEM Acceptable
Stock Rich
Certification Available ISO 90001
Production Capacity 500000 pcs per month
Payment terms T/T, PAYPAL, WESTERN UNION,
Packing Details Plastic pipe in carton box with full of bubble paper and foam with 33cm*23cm*19cm





Super Raw Material

Item Grade
HRC45
(YG10X )
HRC55
(YL10.2 & WF25)
HRC60
(Germany K44 &K40)
HRC65
( H10F)
Details
Grain size 0.7um
Co10%
Flexural strength
3320N/mm2
Grain size 0.6um
Co10%
Flexural strength 4000N/mm2
Grain size 0.5um
Co12%
Flexural strength
4300N/mm2
Grain size 0.5um
Co10%
Flexural strength 4300N/mm2





Super Coating
Coating Classifying and Advantage
Item
Coating Type
AlTin
TiAlN
TiSiN
Naco













Characteristic
Hardness(HV)
3300
2800
4300
42(GPA)
Thickness(UM)
2.5-3
2.5-3
3
3
Oxidation Temp.(°C)
900
800
1000
1200
Friction Coefficient
0.35
0.3
0.25
0.4
Color
Black
Dark Purple
Copper
Blue
Advantages
High heat stability
Normally cutting
Suitable for heavy cutting, and high hardness cutting
For high precision cutting
Suitable for high speed, dry cutting
Suitable for cutting mould steel, stainless
steel
Suitable for high hardness cutting, mould steel processing
Most suitable for carbide cutting tools, turning insert







Micro Solid Carbide Ball Nose End Mills AlTiN CNC Engraving Cutter 0Micro Solid Carbide Ball Nose End Mills AlTiN CNC Engraving Cutter 1Micro Solid Carbide Ball Nose End Mills AlTiN CNC Engraving Cutter 2
