D10x 330mm Cemented Carbide Rods Unground hollow round bar
10pcs
MOQ
negotiable
Price
D10x 330mm Cemented Carbide Rods Unground hollow round bar
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: Zhuzhou--Carbide City
Brand Name: Whitout Brand
Certification: ISO9001, SGS
Model Number: As your requirements
High Light:

Tungsten Cemented Carbide Rods

,

D10x 330mm Cemented Carbide Rods

,

Unground hollow round bar

Payment & Shipping Terms
Packaging Details: 1PCS in a plastic tube, 10 PCS per group
Delivery Time: 15-25 work days
Payment Terms: T/T, PAYPAL, WESTERN UNION
Supply Ability: 50000pcs/Month
Specifications
Product Name: Cemented Carbide Rod
Material: 100% Virgin Tungsten Carbide
Application: End Mills/drills/reamers/pcb Tools,Other Special Cutters
Diameter: From 1mm To 32mm
Tolerance: H6
Grades: Yl10.2 Etc
Hardness: 91.5- 92.5 HRA
Surface: Polished Or Unground
Product Description
Products Description:
types: solid carbide rod in metric size and inch size, solid carbide rod with 1/2 straight holes, solid carbide rod with 2/3 helix hole in 30° and 40°
Grade: Co10% in grain size 0.6 and 0.8, Co12% in grain size 0.4 and 0.6. Co6% and co8%....
size: dimater from 1mm to 50mm are all avaibale
surface: rough/h5 grinding/h6 grinding


We provide high quality tungsten carbide rods with the following advantages:

1. 100% Virgin raw material
2. Advanced production equipment/test equipment (With HIP sintering).
3. With production experience over 10 years. We can make extruded tungsten carbide rod or die pressing tungsten carbide tube.
4. Standard length 100mm and 330mm, dia. from 0.5mm to 60mm, also can produce according to customers' request.
5. Competitive price and fast delivery



Application:
Used in welding/ making the drill bits/ endmills / reamers .automobile special cutters, printed circuit board special cutters, engine special cutters, Horologe processing special cutters, integral vertical milling cutter, graver and etc. Besides, they can bu used for making of cemented carbide stamping head, Core bar and perforation tools.



Grades
Density(g/cm³) Hardness(HRA) T·R·S(N/mm2) Application
YG4C 15 89.5 1800 Maily used as small buttons for percussion bits and as the inserts of rotary prospecting bits to cut soft, medium-hard formations.
YG6 14.8 89.5 1700 Maily used as the buttons of small and medium-sized percussion bits and as the inserts of rotary prospecting bits to cut soft, medium-hard formations.
YG8 14.7 88.5 2300 Maily used as the buttons of small and medium-sized percussion bits and as the inserts of rotary prospecting bits to cut soft, medium-hard formations.
YG8C 14.7 88 2300 Maily used as the buttons of small and medium-sized percussion bits and as the inserts of rotary prospecting bits to cut soft, medium-hard formations.
YG9C 14.5 87 2400 Maily used as the inserts and buttons for rotary-percussive bits, coal-cutting bits and tricone bits to cut medium-hard and hard formations.
YG11C 14.4 86.5 2450 Chiefly for the inserts and buttons of heavy rock drill bits and rotary-percussive bits, coal-cutting bits and tricone bits to cut medium-hard and hard formations.
YG13C 14.3 86 2500 Mainly used as the inserts and buttons of tricone bits rotary-percussive bits and heavy rock drill bits to cut medium-hard and hard formations.
YG15 14 86.5 2500 It is stronger, and is mainly used as the inserts and buttons of rotary-percussive bits, heavy rock drill bits to cut hard and very hard formations.
YG16 14.10-14.30 87.5 2400 It is mainly used for making cemented carbide substrate tips to be used in PDC cutters for excavating coal and oil field PDC bits.
YG20 13.40-13.70 85 2254 Mainly for the stamping dies used in the conditions of heavy impact load and large strees.



Product show

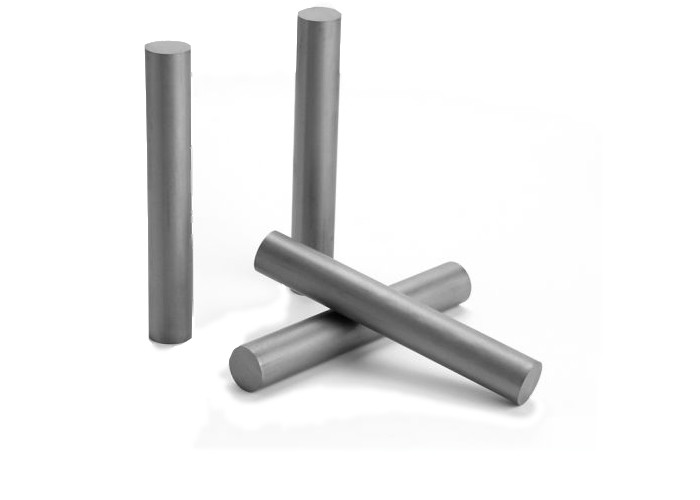

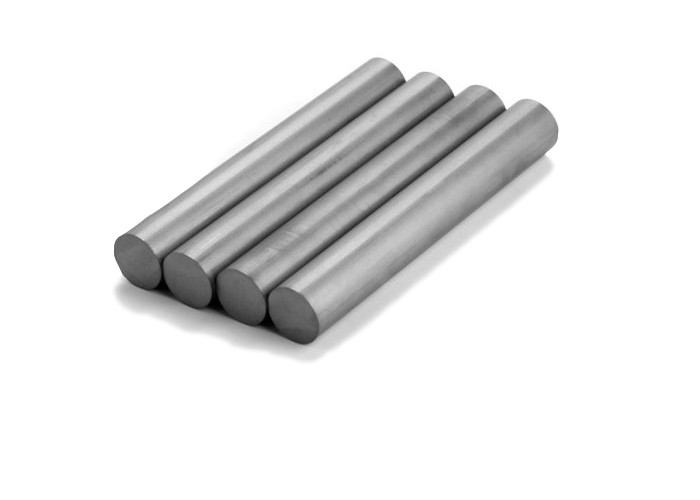

D10x 330mm Cemented Carbide Rods Unground hollow round bar 0D10x 330mm Cemented Carbide Rods Unground hollow round bar 1

Waiting for your kindly inquiry !
