Product Description

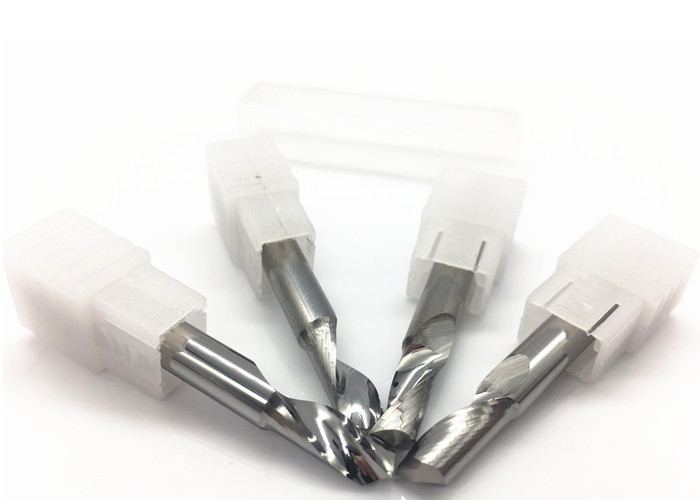

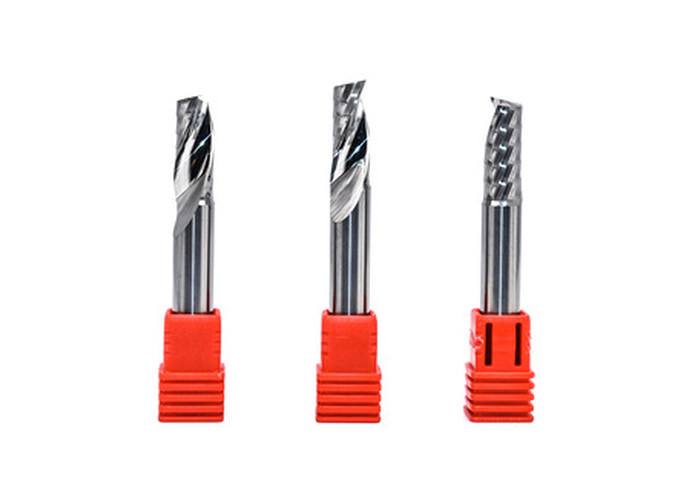

1 Tungsten Carbide 3*12*3.175*38L Single Flute End Mill Acrylic
2 Work piece for aluminium, Acrylic , Plastic , wood and so on
3 High Quality
4 TIAIN / TIN / Diamond coating/ TICN/ ALTIN Coating
We also accept client's requirement of non-standard size
Different Hardness based on client's requirement
Sutiable for various steel process , tooling process , Alloy Aluminium process and cast iron process.
Talented and well-trained employees.
If you want to know more about our products, you can contact us on line
1, Chemical Composition: 10%Co-Wc
2, Raw Material: Super Micro grain with Diameter less than 0.2UM
3, International Industrial Standard: K10, K05-K15, K20-K30, K20-K40
Applicable: Aluminium Alloy, Copper Alloy, Magnesium Alloy. Low power spindle,high speed rotation above 16000 per minute processing.
Features: The cutter is specifically designed for high-speed cutting of aluminium, copper and gold, etc, with excellent finish.
Product Size:
| NO | SHK | CED | CEL | OVL |
| 1fal3.103 | 3.175 | 1 | 3 | 38 |
| 1fal3.1.505 | 3.175 | 1.5 | 5 | 38 |
| 1fal3.204 | 3.175 | 2 | 4 | 38 |
| 1fal3.206 | 3.175 | 2 | 6 | 38 |
| 1fal3.208 | 3.175 | 2 | 8 | 38 |
| 1fal3.2.504 | 3.175 | 2.5 | 4 | 38 |
| 1fal3.2.506 | 3.175 | 2.5 | 6 | 38 |
| 1fal3.2.508 | 3.175 | 2.5 | 8 | 38 |
| 1fal3.06 | 3.175 | 3.175 | 6 | 38 |
| 1fal3.07 | 3.175 | 3.175 | 7 | 38 |
| 1fal3.12 | 3.175 | 3.175 | 12 | 38 |
| 1fal3.17 | 3.175 | 3.175 | 17 | 38 |
| 1fal410 | 4 | 4 | 8 | 45 |
| 1fal412 | 4 | 4 | 12 | 45 |
| 1fal412 | 4 | 4 | 15 | 45 |
| 1fal417 | 4 | 4 | 17 | 45 |
| 1fal422 | 4 | 4 | 22 | 45 |
| 1fal612 | 6 | 6 | 12 | 50 |
| 1fal617 | 6 | 6 | 17 | 50 |
| 1fal622 | 6 | 6 | 22 | 50 |
| 1fal822 | 8 | 8 | 22 | 60 |
| 1fal825 | 8 | 8 | 25 | 60 |
| 1fal1025 | 10 | 10 | 25 | 75 |
| 1fal1032 | 10 | 10 | 32 | 75 |
| 1fal1042 | 10 | 10 | 42 | 85 |
| 1fal1232 | 12 | 12 | 35 | 75 |
| 1fal1242 | 12 | 12 | 42 | 80 |
Payment
T/T, Western Union, Paypal?(Choose your convenient way)
Shipment
FedEx, TNT, DHL, UPS, EMS, etc.
The port is Beijing, Shanghai, Guangzhou, Shenzhen, any port in China.(choose your convenient way)
Packing
Laser print brand name on cutter shank, 1PCS in a plastic tube, 10 PCS per group
Delivery time
Keep stock for regular types
Samples: 3- 5 days
Regular orders: 15-20 days.
We a relooking forward to your early reply.
