Machinable Tungsten Carbide Composite Rods Blanks For Cutting Tools H6 Grinding Surface
10pcs
MOQ
Negotiate
Price
Machinable Tungsten Carbide Composite Rods Blanks For Cutting Tools H6 Grinding Surface
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: Zhuzhou--Carbide City
Brand Name: Whitout Brand
Certification: ISO9001, SGS
Model Number: As your requirements
High Light:

Tungsten Carbide Composite Rods

,

GU12 Carbide Composite Rods

,

H6 machinable tungsten rod

Payment & Shipping Terms
Packaging Details: 1PCS in a plastic tube, 10 PCS per group
Delivery Time: 15-25 work days
Payment Terms: T/T, PAYPAL, WESTERN UNION
Supply Ability: 50000pcs/Month
Specifications
Co: 6%, 8%, 10% , 12%
Grade: YG6, YG8, YL10.2, GU12
Surface: Grinding Or Unground
Usage: Cutting Tool
Diameter: 3.0-40.0mm
Length: 10mm-330mm
Product Description

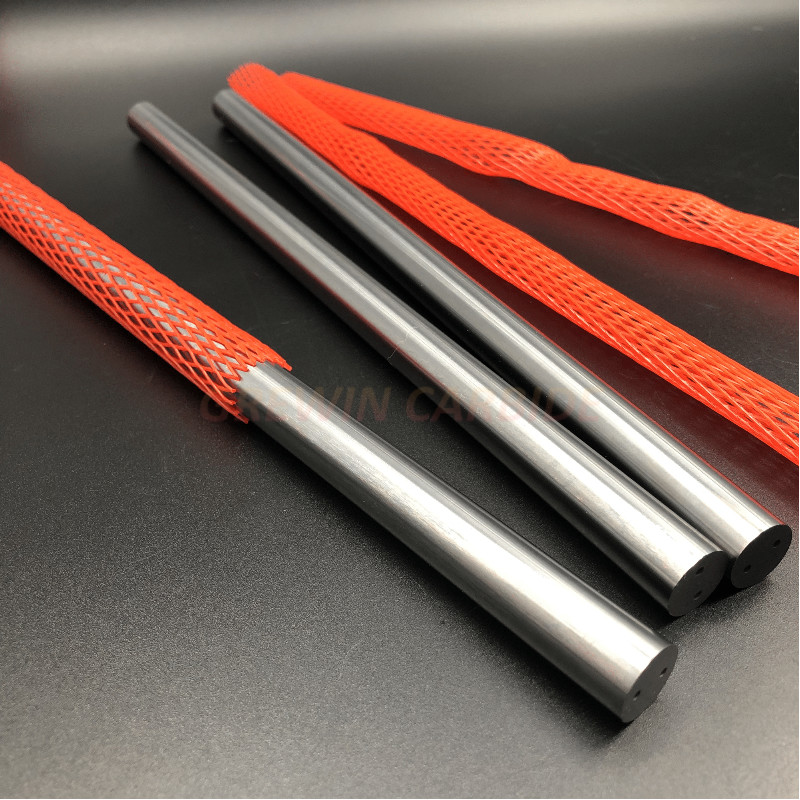

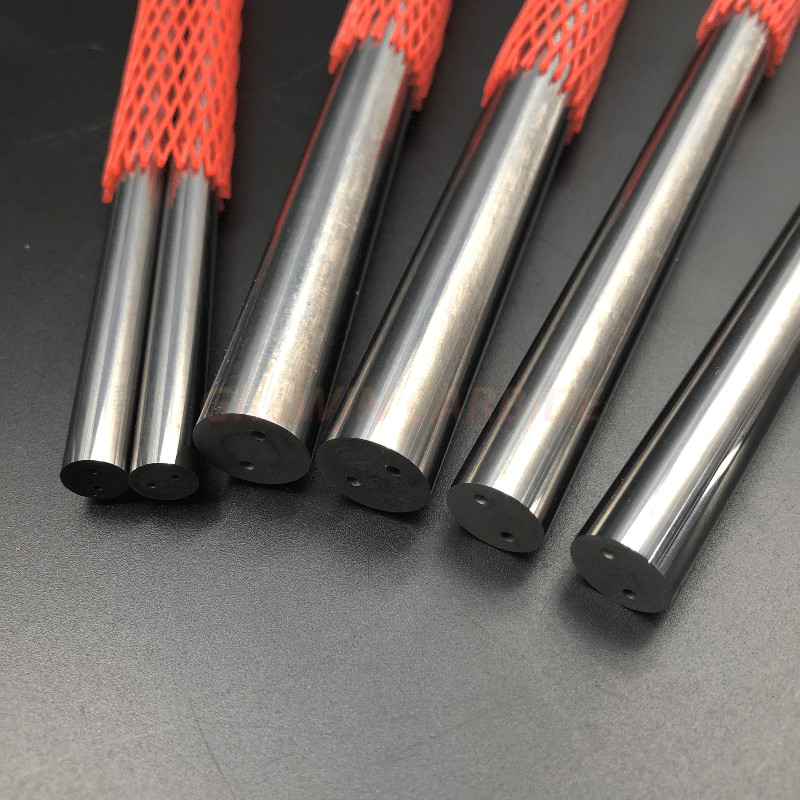

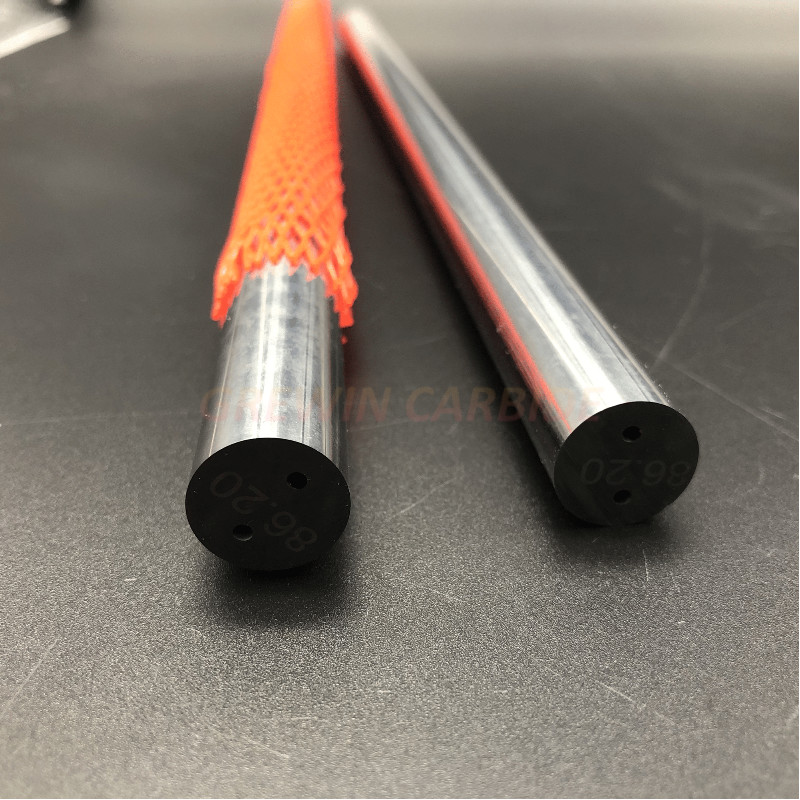

You can find the regular types here, like solid carbide rods blanks, polished carbide rods in tolerance h6, carbide rods with single straight hole, two straight holes and also the carbide rods with spiral holes. In addition, we also can make the rods based on your designs, like make chamfer on the ends, half round rods or make threads inside and outside.

Machinable Tungsten Carbide Composite Rods Blanks For Cutting Tools H6 Grinding Surface 0



1. Run-out and Roundness can be less than 5 micron(+0.005/-0.005mm);
2. Large stock & Fast Delivery & Good Price
3. A special Hot Isostatic Press (HIP) process provides quality improvement to the finished products to ensure meterial reliability
4.Submicro Grain Size, with all HIP treatmemt
5.Made from extra-fine grain size (0.5~0.7μm) of tungsten carbide powders, TDC has developed series of sub-micro grades with HIP treatment for the different applications of solid carbide rod which all have good performance. Sintered blanks and h5,h6 precision grinding are both available.

Product Name
STOCK K30 h6 Dia.10* L75mm Tungsten Carbide Rod for End Mill
Material
tungsten carbide
Color
grey
Standard
DIN GB ISO JIS BA ANSI
Grade
YL10.2,YG10X,YG12X,YG15,YG20,YG10,YG8,YG8 etc
Brade
GW
Grain size
0.6um
Used
for milling 45HRC,50HRC,60HRA metals



Grade specification
Grade
Density(g/cm3)
Hardness
(HRA)
T.R.S (MPa)
Grain size (μm)
Composition
(%)
Equal to ISO
YU12 14.1~14.15 .≥92.5 ≥4000 0.2~0.5 12% CO 88% WC K40~K50
YL10.2
14.4~14.6
≥92.2
≥4000
0.6~0.8
10% CO 90% WC
K20~K30
YG6X
14.85~15.0
≥92.0
≥3860
0.8~1.0
6% CO 94% WC
K05
YG15
14.0~14.1
≥85.0
≥2800
1.2~2.0
15%Co 85% WC
K30~K40
YG10
14.5~14.6
≥85.5
≥2600
1.2~2.0
10%Co 90% WC
K20
YG8
14.65~14.85
≥89.5
≥2320
1.2~2.0
8% CO 92%
WC
K20
YG6
14.85~15.05
≥90.0
≥2150
1.2~2.0
6% CO 94%
WC
K10



sizes and polished details
Diameter(mm) Length(mm) grinding and polishing
0.3~1.0 5~330 h6,h7,H6 or H7
1.0~3.0 5~330 h6,h7,H6 or H7
4.0~80 5~1000 h6,h7,H6 or H7
