35Degree Solid Carbide Square End Mills High Performance Cnc Milling Cutters
10pcs
MOQ
negotiable
Price
35Degree Solid Carbide Square End Mills High Performance Cnc Milling Cutters
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: Zhuzhou--Carbide City
Brand Name: Whitout Brand
Certification: ISO9001, SGS
Model Number: As your requirements
High Light:

square cutting end mill

,

square end drill bit

Payment & Shipping Terms
Packaging Details: 1PCS in a plastic tube, 10 PCS per group
Delivery Time: 15-25 work days
Payment Terms: T/T, PAYPAL, WESTERN UNION
Supply Ability: 50000pcs/Month
Specifications
Delivery Time: 7-10 Days
Flutes: 2, 3, 4, 5, 6
HRC: 45, 55, 60, 65
Type: Flat, Ball Nose, Corner Radius, Roughing
Package: 1 PCS In A Plastic Tube, 10 PCS Per Group
Usage: General High Speed Cutting
Coating: Altin, Tiain, Tisin, Ticn, Tin, Tialn, Uncoated
Flute Diameter: 0.5mm-25mm,Customized
Product Description

Name: 35 Degree Solid Carbide square End Mills High Performance Cnc Milling Cutters

Material:Carbide etc.

Flutes:2/3/4 Flute

Hardness:45hrc 55hr 65hrc

Helix Angle:30° 35° 45°30° 35° 45°

Coating: AlTiN, NACO BLUE, NACO BLACK, TiN etc.

Type: Flat end mill, ball nose end mill, corner radius end mill and aluminium end millSize:Dia: 1-20 mm, Overal Length:50-200mm




Coating




Coating

Color

Coating Temperature

Thickness (um)

HV

Application Temperature

Friction coefficient

TiAlN
Purple-Gray <600°C 3-5 3300 800 °C 0.3
AlTiN Black <600 °C 3-5 3500 900 °C 0.3
TiSiN Copper <600 °C 3-5 3500 1500 °C 0.4
NaNo Blue <600 °C 3-5 3800 1200 °C 0.4
CrN Silver Gray <480 °C 2-2.5 2500 700 °C 0.3


Packing
Laser print brand name on cutter shank, 1 pcs in a plastic tube, 10 pcs per group


Delivery time
Keep stock for regular types
Samples: 3 - 5 days
Regular orders: 7 - 10 days

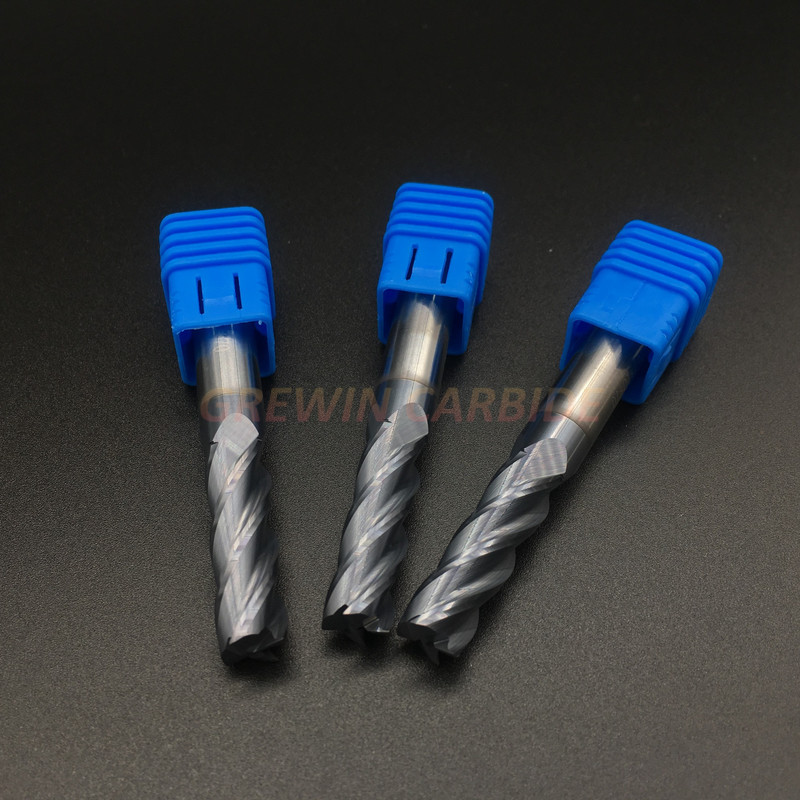

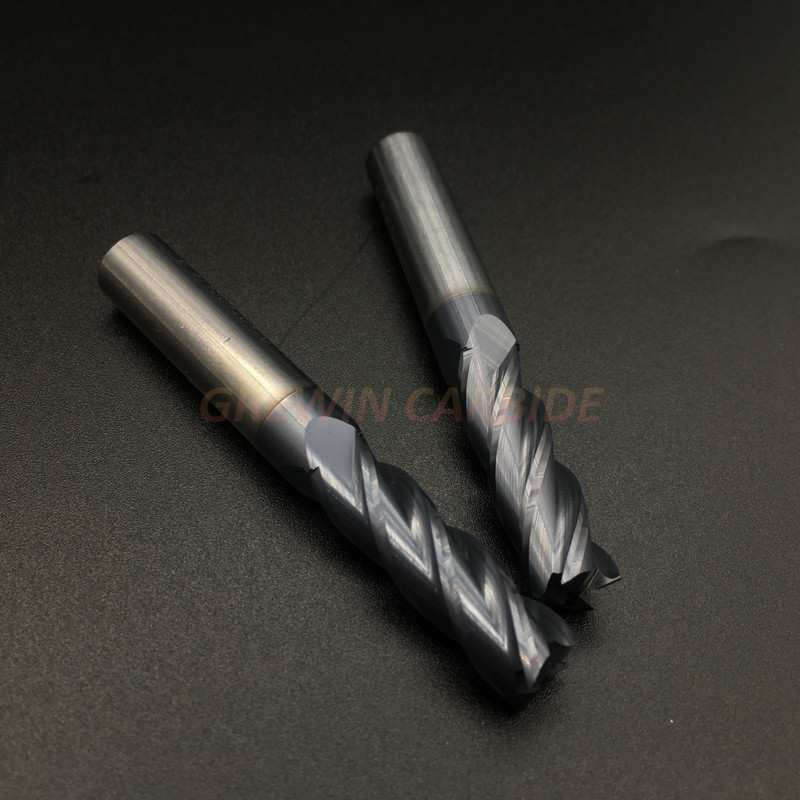

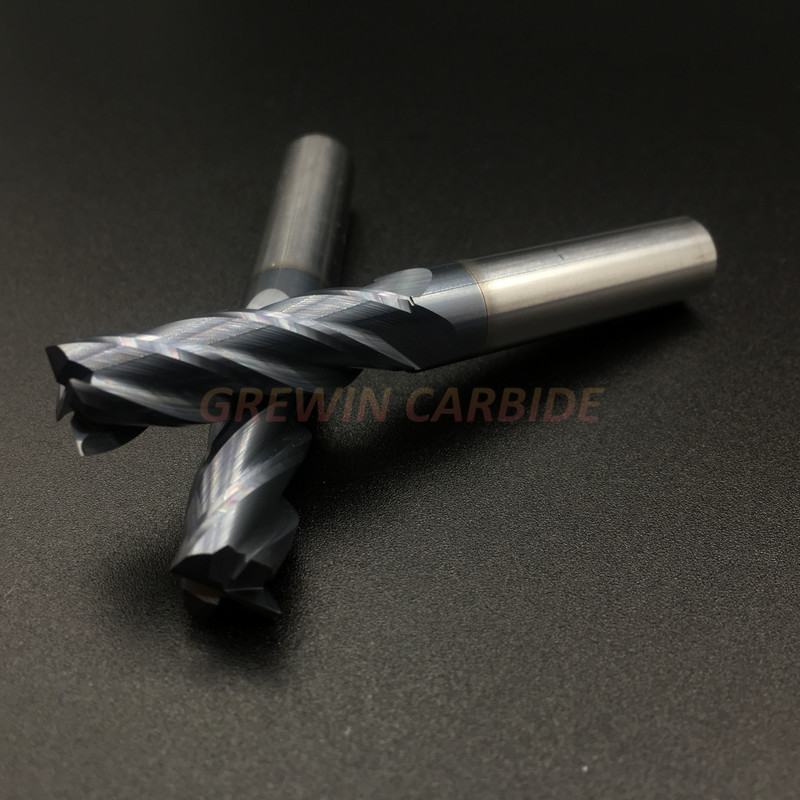

35Degree Solid Carbide Square End Mills High Performance Cnc Milling Cutters 035Degree Solid Carbide Square End Mills High Performance Cnc Milling Cutters 1



Why Choose GREWIN Tools
1) More than 10 years' professional manufacturer and export experience
2) Meet your special demands
3) High precision CNC machines,high standard and strict inspection
4) Custom demand are welcomed ,OEM and ODM Service
5) All payment terms supported
6) Fast delivery time and Convenient Transportations
7) More than 2000 products are available
8) For your suggestions or complaints,We will handle them Soonest
