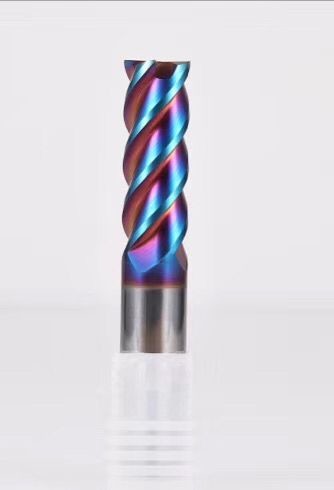

High Performance HRC65 Flat End Mill For Finishing Processing Steel
Standard Sizes
Code No.
|
Diamter d |
Cutting length l |
Total length L |
Shank D |
Flutes Z |
2GW4-01002050 | 1 | 3 | 50 | 4 | 2 |
2GW4-01504050 | 1.5 | 4 | 50 | 4 | 2 |
2GW4-02050500 | 2 | 5 | 50 | 4 | 2 |
2GW4-02507050 | 2.5 | 7 | 50 | 4 | 2 |
2GW4-03008050 | 3 | 8 | 50 | 4 | 2 |
2GW4-04010050 | 4 | 10 | 50 | 4 | 2 |
2GW4-04015075 | 4 | 15 | 75 | 4 | 2 |
2GW4-04020100 | 4 | 20 | 100 | 4 | 2 |
2GW4-05012050 | 5 | 13 | 50 | 6 | 2 |
2GW4-06015050 | 6 | 15 | 50 | 6 | 2 |
2GW4-06020075 | 6 | 20 | 75 | 6 | 2 |
2GW4-06020100 | 6 | 30 | 100 | 6 | 2 |
2GW4-06020060 | 8 | 20 | 60 | 8 | 2 |
2GW4-08025075 | 8 | 25 | 75 | 8 | 2 |
2GW4-08025100 | 8 | 35 | 100 | 8 | 2 |
2GW4-010025075 | 10 | 25 | 75 | 10 | 2 |
2GW4-010040100 | 10 | 40 | 100 | 10 | 2 |
2GW4-012020075 | 12 | 30 | 75 | 12 | 2 |
2GW4-012040100 | 12 | 40 | 100 | 12 | 2 |
2GW4-014020080 | 14 | 30 | 80 | 14 | 2 |
2GW4-014100100 | 14 | 30 | 100 | 14 | 2 |
2GW4-016040100 | 16 | 40 | 100 | 16 | 2 |
2GW4-018040100 | 18 | 40 | 100 | 18 | 2 |
2GW4-020040100 | 20 | 40 | 100 | 20 | 2 |
2GW4-06040150 | 6 | 40 | 150 | 6 | 2 |
2GW4-08050150 | 8 | 50 | 150 | 8 | 2 |
2GW4-010050150 | 10 | 50 | 150 | 10 | 2 |
2GW4-012050150 | 12 | 50 | 150 | 12 | 2 |
2GW4-014060150 | 14 | 60 | 150 | 14 | 2 |
2GW4-016060150 | 16 | 60 | 150 | 16 | 2 |
2GW4-018060150 | 18 | 60 | 150 | 18 | 2 |
2GW4-020060150 | 20 | 60 | 150 | 20 | 2 |
Specification:
1. Products Description
Products Name | Carbide endmill cutter |
Work piece | HRC45 , HRC55 , HRC60 , HRC65 , HRC68 |
Coating Type | ALTIN , TiAIN ,Ticn ,Tin ,Tialn ,Uncoated |
Size | Standard sizes or customized sizes |
Logo | According your requests |
TRS | >3600 N/mm2 |
Hardness | HRA 91.8-92.5 |
Helix angle | 30°-45 ° |
Diameter of cutting edge | 0.2-0.9 mm; 1-20 mm |
Length | 50,60-100 mm |
Flutes No. | 2/3/4/5/6,etc |
Cutting Form | Flat, Square, Ball nose, Corner Radius, Long neck,Roughing,etc |
MOQ | 1pc |
Samples time | 7 dyas |
OEM | Acceptable |
Stock | Rich |
Certification Available | ISO 90001 |
Production Capacity | 50000 pcs per month |
Payment terms | T/T, PAYPAL, WESTERN UNION |
Packing Details | Plastic pipe in carton box with full of bubble paper and foam with 33cm*23cm*19cm |
Why Choose Grewin Tools?
(1) The company has more than 20 years' experience in manufacture, design and sale of various kinds of carbide products
(2) High precision CNC machines, high standard and strict inspection
(3) Strong R&D center and QC teams meet your special demands
(4) The company has passed ISO 9001: 2008 quality system
(5) Possesses advanced production equipments, complete testing instruments
(6) Fast delivery time and Convenient Transportations
(7) More than 1000 products are available
(8) For your suggestions or complaints, We will handle them Soonest
(9)Nonstandard products are available according to customer's drawing or customer's sample.
(10)We olso design and manufacture products, according to the request of customer's.
(11)If you have any questions, please cantact me anytime, Grewin will warmly welcome your inquiry.
