| Code No. |
Diamter d |
Cutting length l |
Total length L |
Shank D |
Flutes Z |
| 4GW2-0103050 | 1 | 2 | 50 | 4 | 4 |
| 4GW2-0205050 | 2 | 4 | 50 | 4 | 4 |
| 4GW2-0308050 | 3 | 6 | 50 | 4 | 4 |
| 4GW2-04010050 | 4 | 8 | 50 | 4 | 4 |
| 4GW2-05013050 | 5 | 10 | 50 | 5 | 4 |
| 4GW2-06015050 | 6 | 12 | 50 | 6 | 4 |
| 4GW2-08020060 | 8 | 16 | 60 | 8 | 4 |
| 4GW2-01020075 | 10 | 20 | 75 | 10 | 4 |
| 4GW2-012030075 | 12 | 24 | 75 | 12 | 4 |
| 4GW2-06030100 | 6 | 12 | 100 | 6 | 4 |
| 4GW2-08030100 | 8 | 16 | 100 | 8 | 4 |
| 4GW2-010040100 | 10 | 20 | 100 | 10 | 4 |
| 4GW2-012040100 | 12 | 24 | 100 | 12 | 4 |
Highest cutting hardness: HRC60
| Size | Model | Diameter of Head (mm) |
Diameter of Shank (mm) |
Blade Length (mm) |
Total Length (mm) |
| 4mm | 4*16*4D*75L | 4 | 4 | 16 | 75 |
| 5mm | 5*18*5D*75L | 5 | 5 | 18 | 75 |
| 6mm | 6*25*6D*75L | 6 | 6 | 25 | 75 |
| 8mm | 8*25*8D*75L | 8 | 8 | 25 | 75 |
| 10mm | 10*25*10D*75L | 10 | 10 | 25 | 75 |

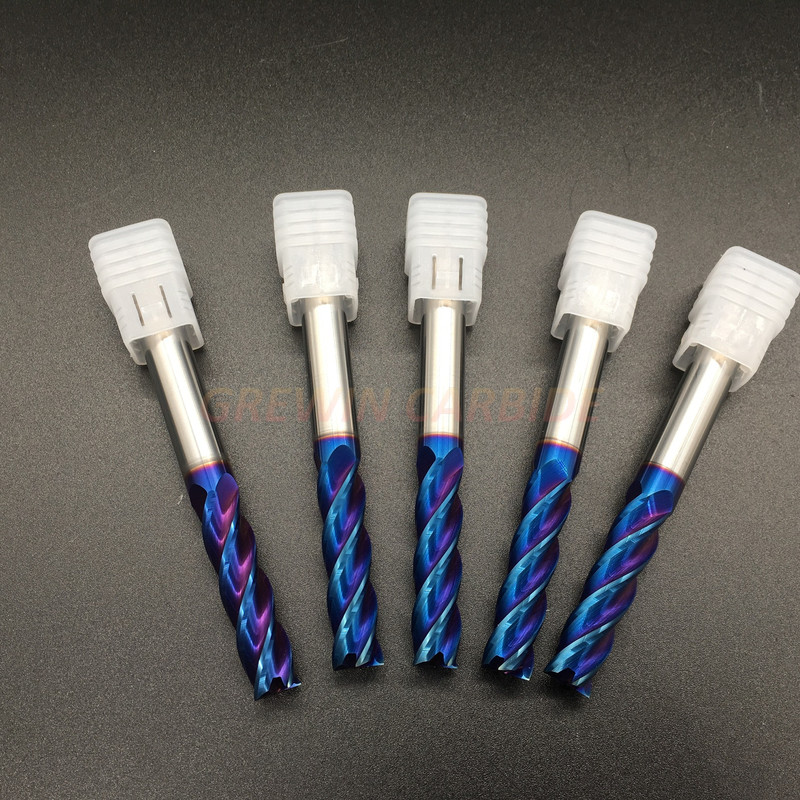

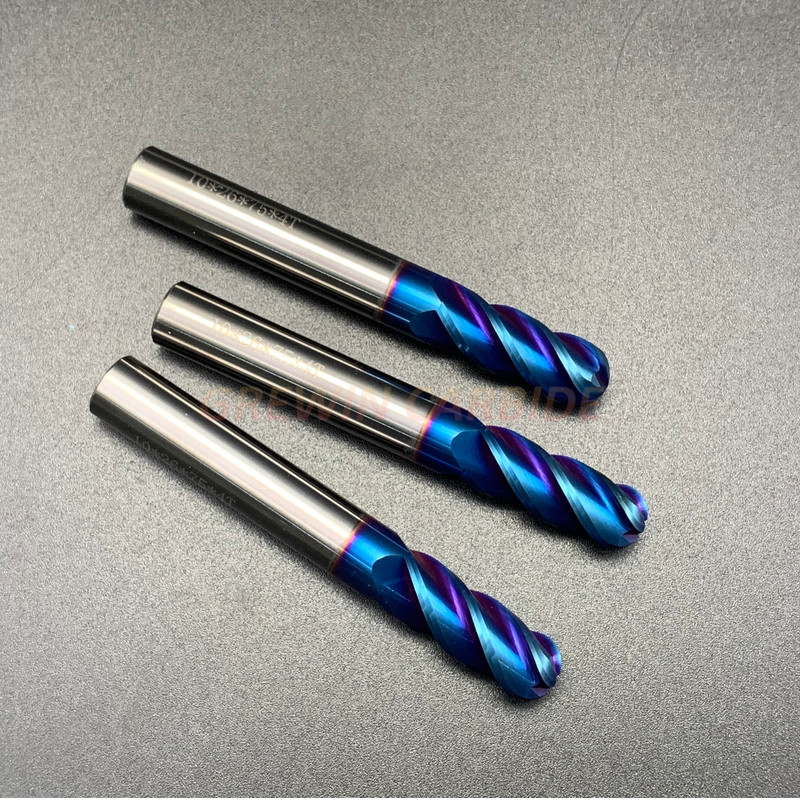

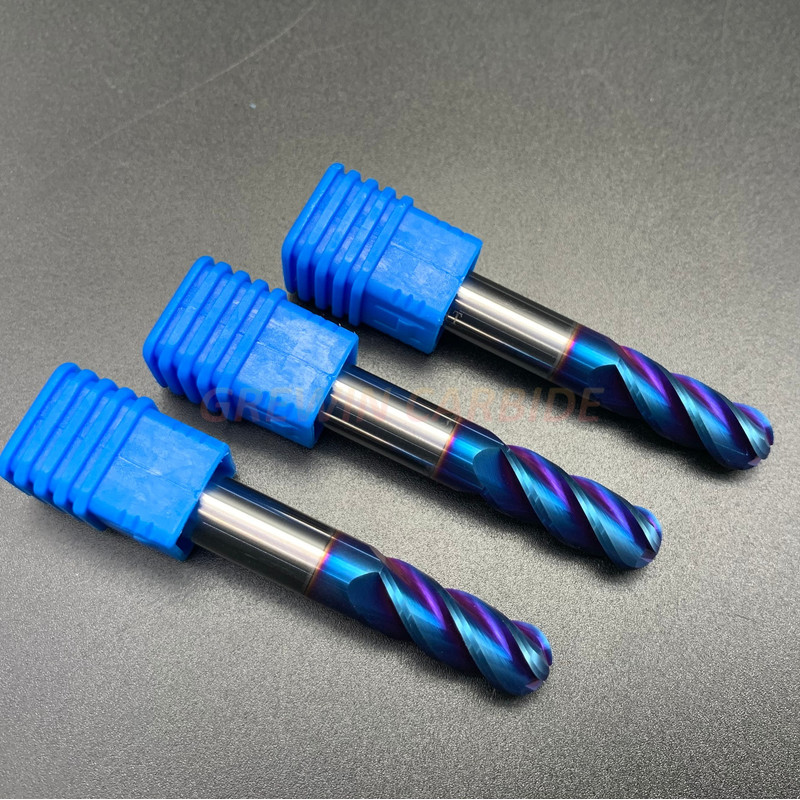

HRC65 Carbide End mIlls in Blue Nano Coating , Solid End mill, Cemented Carbide End mill
Description:
D4/5/6/8/10mm 4 Flutes Tungsten Carbide Milling Cutter 75mm HRC60 Nano Coated Milling Cutter CNC Tool
Specification:
HRC:60
Material: Carbide (tungsten steel)
Coating: Nano-blue Coated
Flute: 4 Flutes
Highest cutting hardness: HRC60
| Size | Model | Diameter of Head (mm) |
Diameter of Shank (mm) |
Blade Length (mm) |
Total Length (mm) |
| 4mm | 4*16*4D*75L | 4 | 4 | 16 | 75 |
| 5mm | 5*18*5D*75L | 5 | 5 | 18 | 75 |
| 6mm | 6*25*6D*75L | 6 | 6 | 25 | 75 |
| 8mm | 8*25*8D*75L | 8 | 8 | 25 | 75 |
| 10mm | 10*25*10D*75L | 10 | 10 | 25 | 75 |
Quantity: 1pcs
Features:
Durable and practical.
Highest harness could reach HRC60 for general steel alloy steel mold steel.
Four flute design provides small chip loads and quicker removal.
Suitable for DIY, Home and General Building / Engineering Using.
Package Included:
1pcs x 4 Flutes Milling Cutter
More Details:
Common Problems:
(1) Are you manufacturer?
We are Professional manufacturer, and we have more than 10 years experience in this field.
(2) Will you give me a sample?
We can provide free samples, if you can bear the transportation cost.
(3) Do you make label?
Yes, we do. We have laser machine, we can do it according to your requests.
(4) How about the delivery time?
According to the sizes and quantity, delivery time is different. Usually be 5-7 days. We can tell you exact inventory state if you need.
(5) Can you produce carbide Special Tool?
Yes We can. We can produce special tool according your drawing and sample.
