Nano Coating Tungsten Carbide Ball Nose End Mill For High Speed Cutting
10pcs
MOQ
negotiable
Price
Nano Coating Tungsten Carbide Ball Nose End Mill For High Speed Cutting
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: Zhuzhou--Carbide City
Brand Name: Whitout Brand
Certification: ISO9001, SGS
Model Number: As your requirements
Payment & Shipping Terms
Packaging Details: 1PCS in a plastic tube, 10 PCS per group
Delivery Time: 15-25 work days
Payment Terms: T/T, PAYPAL, WESTERN UNION
Supply Ability: 50000pcs/Month
Specifications
Type: End Mill
Diameter: 1-20mm,Customized Or Standard
Overall Length: 50~150mm / Customized
Flute: 2/3/4 Flutes
Hrc: HRC 45/55/65
Controlling Mode: CNC Tooling System
Application: Milling
Precision: High Precision
Color: Blue,Bronze
Transport: Express,Air
Product Description



Tungsten Carbide Flat And Ball Nose End Mill For Nano Coating



Application
Used for cutting Carbon steel, Tool steel, Mould steel, Stainless steel, Titanium alloy, Copper, Cast Iron and Aluminium, etc.

Grinding equipment: , ANCA, ROLLOMATIC
Testing equipment: ZOLLER



Standard Sizes:

Order No. Flute dia (d) Cutting length ( l ) Shank dia (D) Overall length(L)
1.0×2.5×4D×50L 1.0 2.5 4 50
1.5×4×4D×50L 1.5 4 4 50
2.0×5×4D×50L 2.0 5 4 50
2.5×7×4D×50L 2.5 7 4 50
3.0×8×4D×50L 3.0 8 4 50
3.5×10×4D×50L 3.5 10 4 50
4.0×10×4D×50L 4 10 4 50
4.5×11×6D×50L 4.5 11 6 50
5.0×13×6D×50L 5.0 13 6 50
5.5×13×6D×50L 5.5 13 6 50
6.0×15×6D×50L 6.0 15 6 50
6.5×15×8D×60L 6.5 15 8 60
7.0×17×8D×60L 7.0 17 8 60
7.5×17×8D×60L 7.5 17 8 60
8.0×20×8D×60L 8.0 20 8 60
8.5×25×10D×75L 8.5 25 10 75
9.0×25×10D×75L 9.0 25 10 75
9.5×25×10D×75L 9.5 25 10 75
10.0×25×12D×75L 10.0 25 12 75
10.5×25×12D×75L 10.5 25 12 75
11.0×28×12D×75L 11.0 28 12 75
11.5×28×12D×75L 11.5 28 12 75
12.0×30×12D×75L 12.0 30 12 75
13.0×33×16D×100L 13.0 33 16 100
14.0×40×16D×100L 14.0 40 16 100
15.0×40×16D×100L 15.0 40 16 100
16.0×40×16D×100L 16.0 40 16 100
17.0×40×20D×100L 17.0 40 20 100
18.0×40×20D×100L 18.0 40 20 100
19.0×40×20D×100L 19.0 40 20 100
20.0×40×20D×100L 20.0 40 20 100
25.0×40×25D×100L 25.0 40 25 100

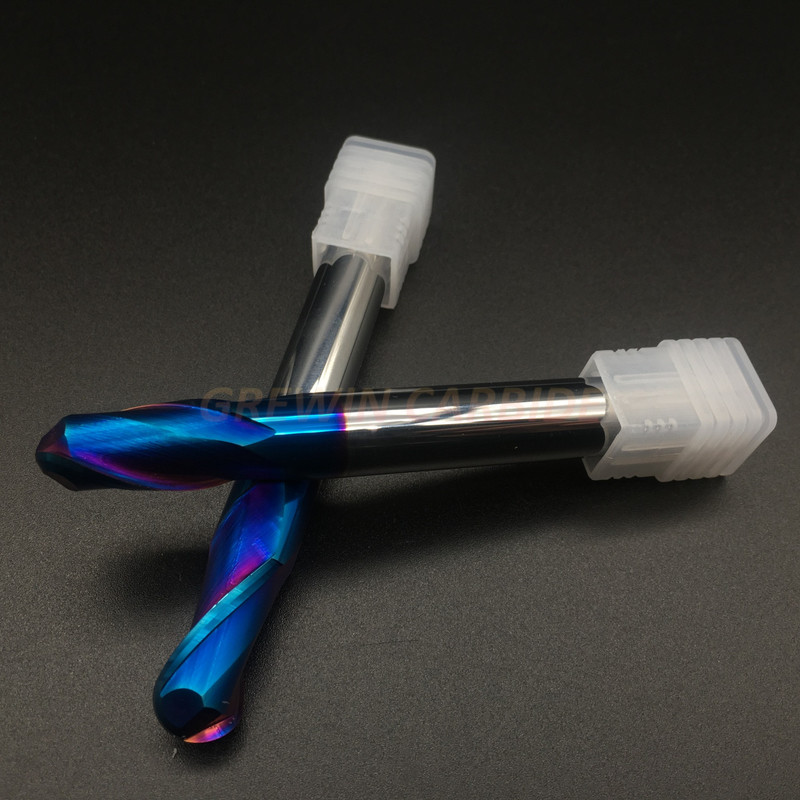

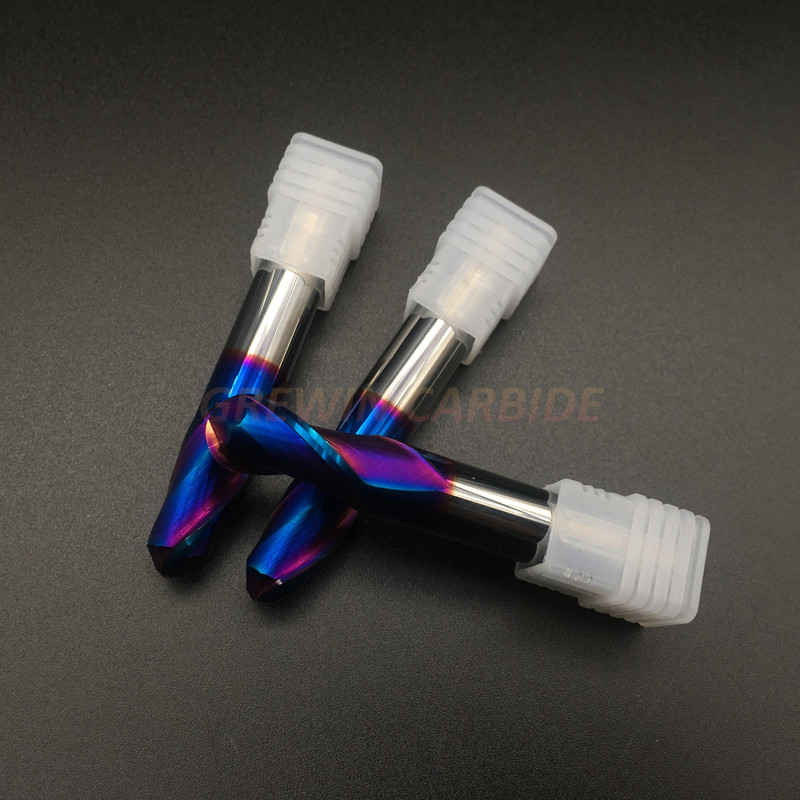

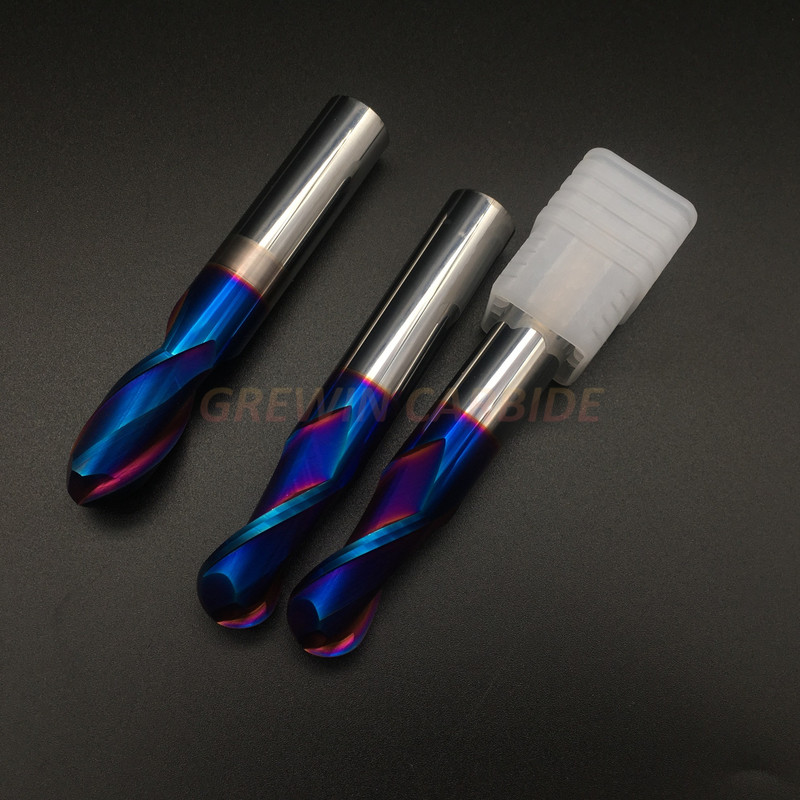

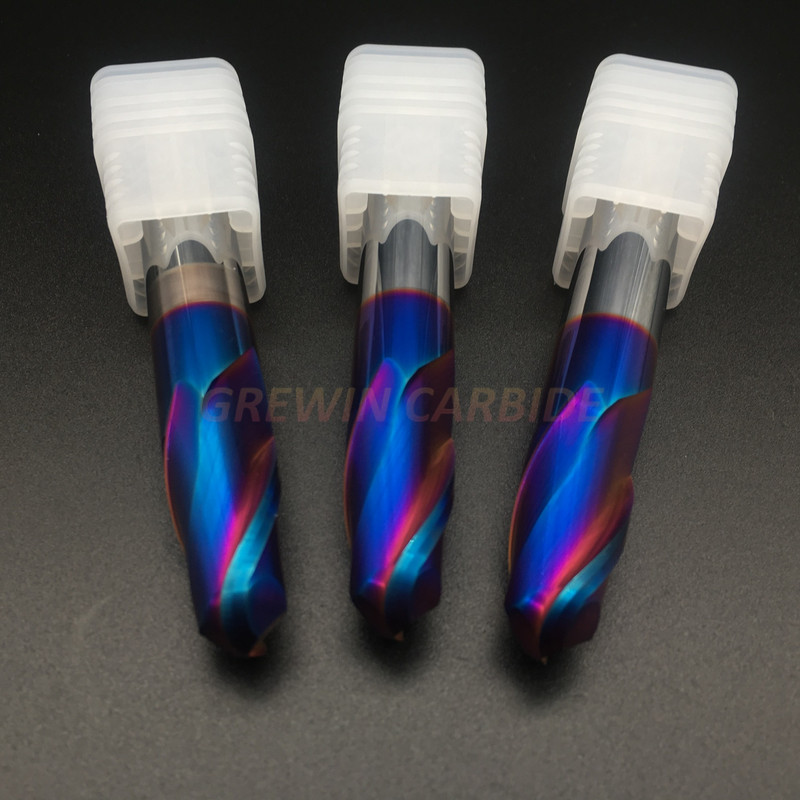

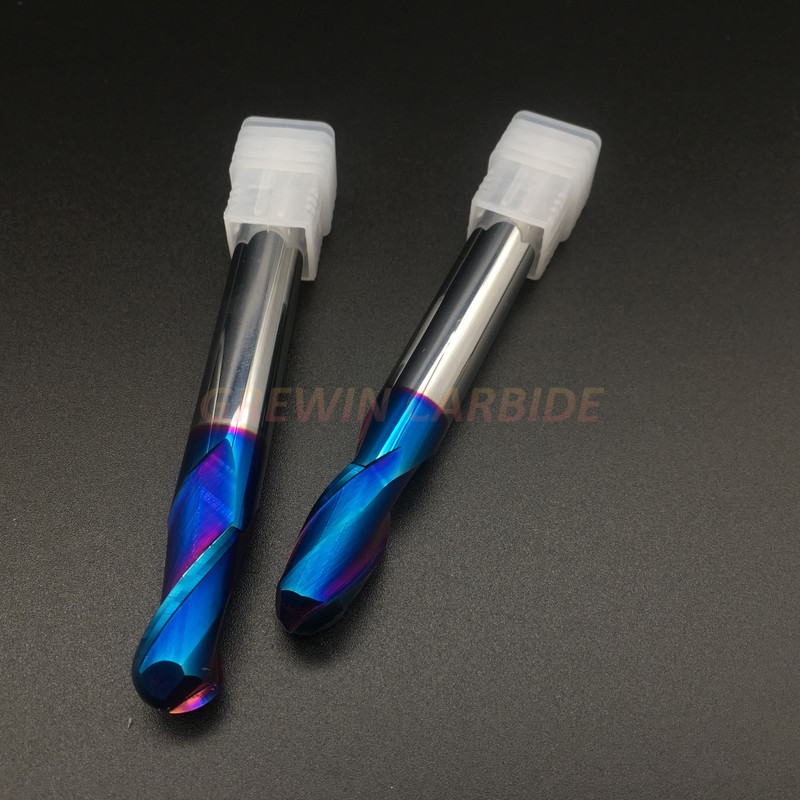

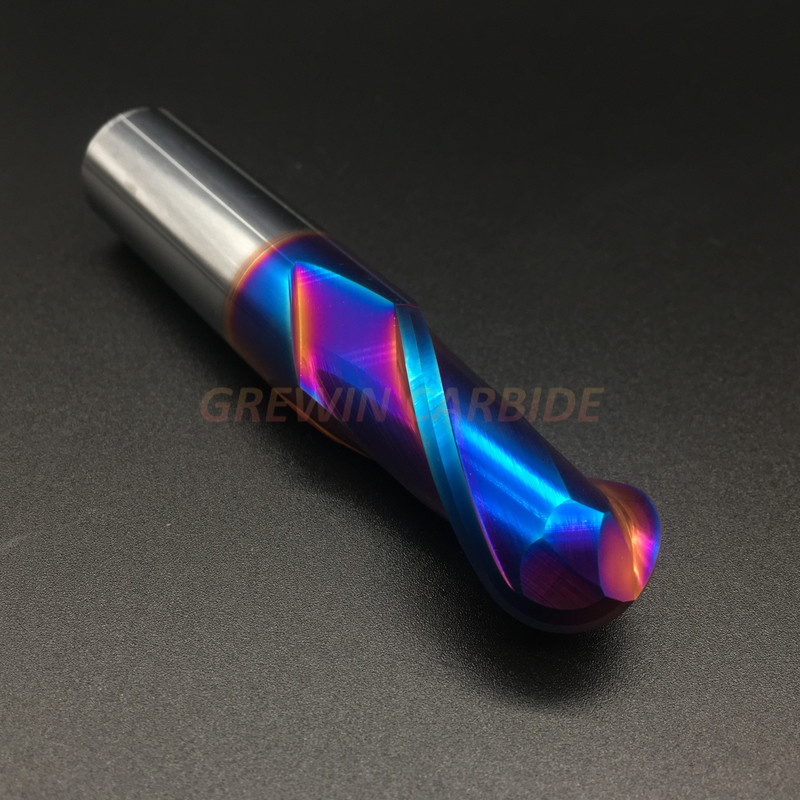

Product show



Nano Coating Tungsten Carbide Ball Nose End Mill For High Speed Cutting 0Nano Coating Tungsten Carbide Ball Nose End Mill For High Speed Cutting 1Nano Coating Tungsten Carbide Ball Nose End Mill For High Speed Cutting 2Nano Coating Tungsten Carbide Ball Nose End Mill For High Speed Cutting 3

Grewin Carbide Team Are Waiting for your kindly inquiry!
