4f 6f Tungsten Carbide Reamer Spiral Straight Flute Reamer Blind Hole H7
10pcs
MOQ
4f 6f Tungsten Carbide Reamer Spiral Straight Flute Reamer Blind Hole H7
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China
Brand Name: Grewin
High Light:

6f Tungsten Carbide Reamer

,

H7 Tungsten Carbide Reamer

,

Spiral Straight Flute Reamer

Payment & Shipping Terms
Packaging Details: plastics box
Delivery Time: 7-10days
Payment Terms: T/T, Western Union, T/T, Western Union
Supply Ability: 10000pcs
Specifications
Material: Tungsten Carbide
Coating: TiAIN
Type: Reamer
Color: Copper
Product Description

Tungsten Carbide reamer
Solid Carbide Left-hand Reamer Spiral Fluted Reamer
Model Number: Standard Size
Diameter: 1-20mm Overall Length: 50-150mm
Material: Carbide
Type: Reamer
Coating: AlTiN
Product Name: Solid Carbide Left-hand Reamer Spiral Fluted Reamer
Application: Hight speed cutting,stainless steel,alloy steel,die steel~HRC58 steel
Controlling Mode: CNC Tooling System
Suitable for: Cooper.Cast Iron.Carbon Steel.Mould Steel
HRC: 45/55/60/65
Precision: High Precision
Usage: General High Speed Cutting
Processing Type: Metal
TRANSPORT: Sea/Express/Air
Machine Type: Milling Maching


Application and usage:
Suitable for Copper, Cast Iron, Carbon steel, Tool steel, Mould steel, Die steel, Stainless steel, Plastic, Arcylic,etc.

Super Coating:
TiSiN TiAlN AlTiN TiCN or Blue Nano Coating.

Item AlTiN TiAiN TiSiN nAcO
Hardness(HV) 3200 2800 3600 42(GPA)
Thickness(UM) 2.5-3 2.5-3 3 3
Oxidation Temp( ° ) 900 800 1000 1200
Friction 0.3 0.3 0.45 0.4
Color Black Violet Copper Blue


Advantages:
1. Solid carbide reamers, we can make different types of machine reamers, usually 2-8 flutes, the delivery time for non-standard customized reamers is just 7-10 days.

2. Carbide reamers are made from different grade of material:

HRC45 machine reamer, YG25material, high precision, with 2-8 flutes. Suit for cast iron, carbon steel
HRC55 machine reamer, YL10.2, high precision, with 2-8 flutes, suit for carbon steel, alloy steel.
HRC60 machine reamers, Kennametal2210, high precision, with 2-8 flutes, suit for copper alloy, stainless steel.
HRC65 machine reamer, Germany AF, high precision, with 2-8 flutes, suit for hard metal.

3. We can supply different types of machine reamers, also we can make the boring reamers according your drawing and samples.

Super Coating:
TiSiN TiAlN AlTiN TiCN or Blue Nano Coating.

Item AlTiN TiAiN TiSiN nAcO
Hardness(HV) 3200 2800 3600 42(GPA)
Thickness(UM) 2.5-3 2.5-3 3 3
Oxidation Temp( ° ) 900 800 1000 1200
Friction 0.3 0.3 0.45 0.4
Color Black Violet Copper Blue




4. Depth of cut: This is how deep the tool is under the surface of the material being cut (not shown on the diagram). This will be the height of the chip produced. Typically, the depth of cut will be less than or equal to the diameter of the cutting tool.


Coating

Color

Coating Temperature

Thickness (um)

HV

Application Temperature

Friction coefficient

TiAlN
Purple-Gray <600°C 3-5 3300 800 °C 0.3
AiTiN Black <600 °C 3-5 3500 900 °C 0.3
TiXco Copper <600 °C 3-5 3500 1500 °C 0.4
NaNo Blue <600 °C 3-5 3800 1200 °C 0.4
AiCrN Silver Gray <480 °C 2-2.5 2500 700 °C 0.3

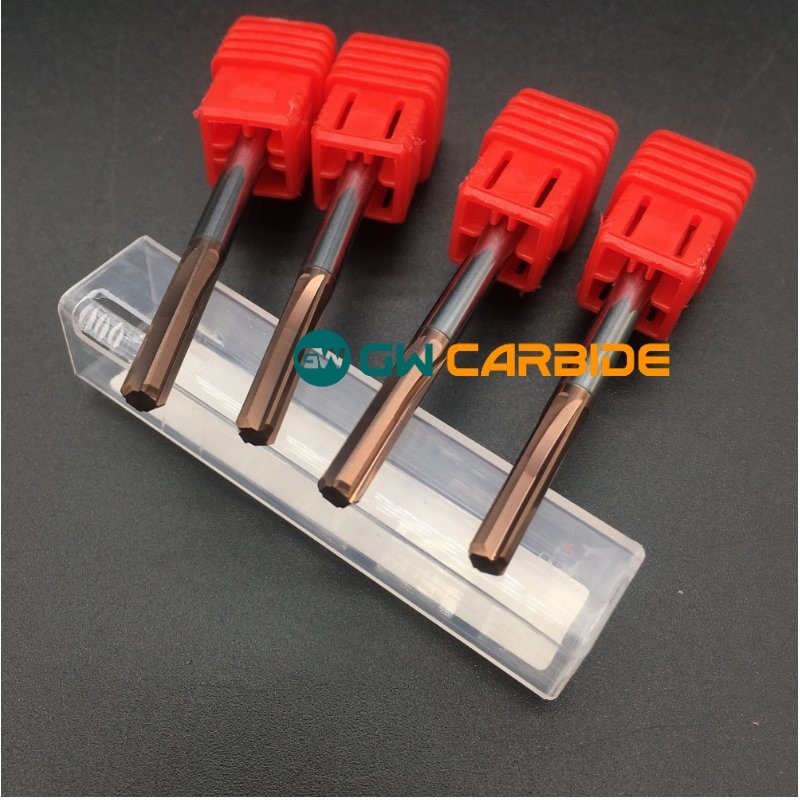

4f 6f Tungsten Carbide Reamer Spiral Straight Flute Reamer Blind Hole H7 0

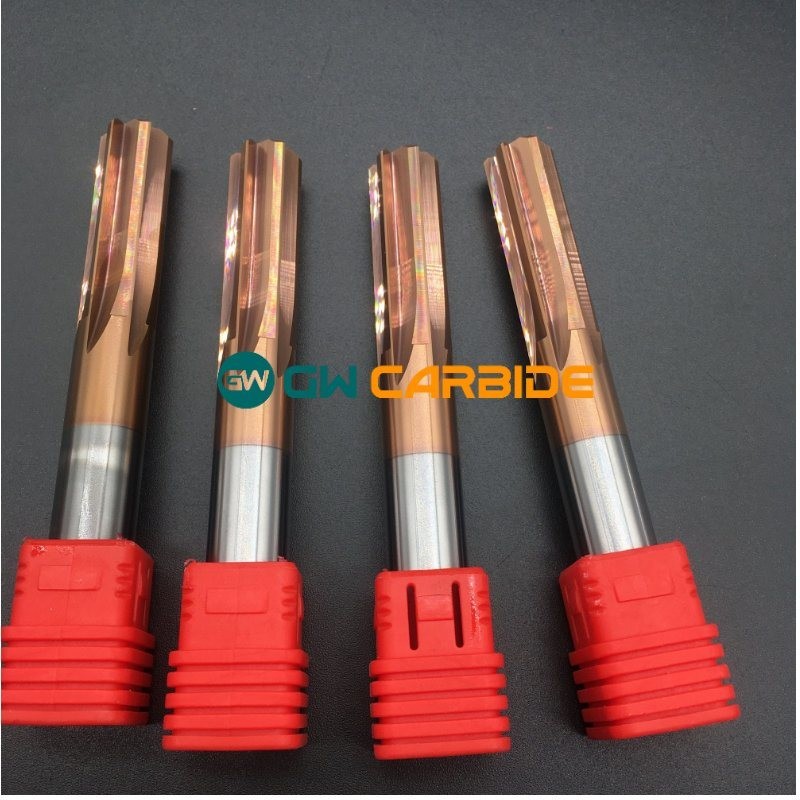

4f 6f Tungsten Carbide Reamer Spiral Straight Flute Reamer Blind Hole H7 1

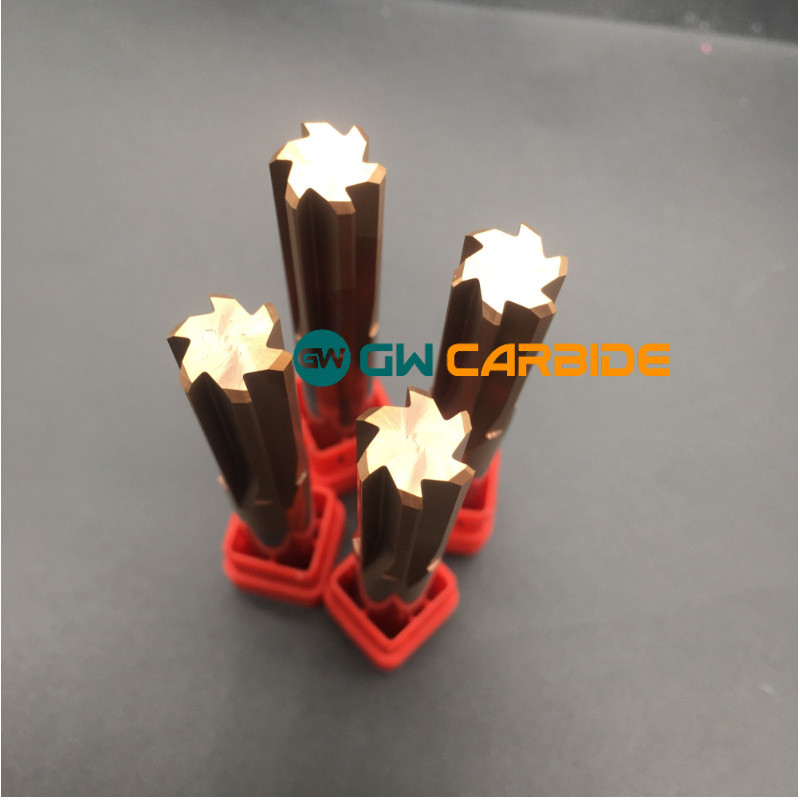

4f 6f Tungsten Carbide Reamer Spiral Straight Flute Reamer Blind Hole H7 2
