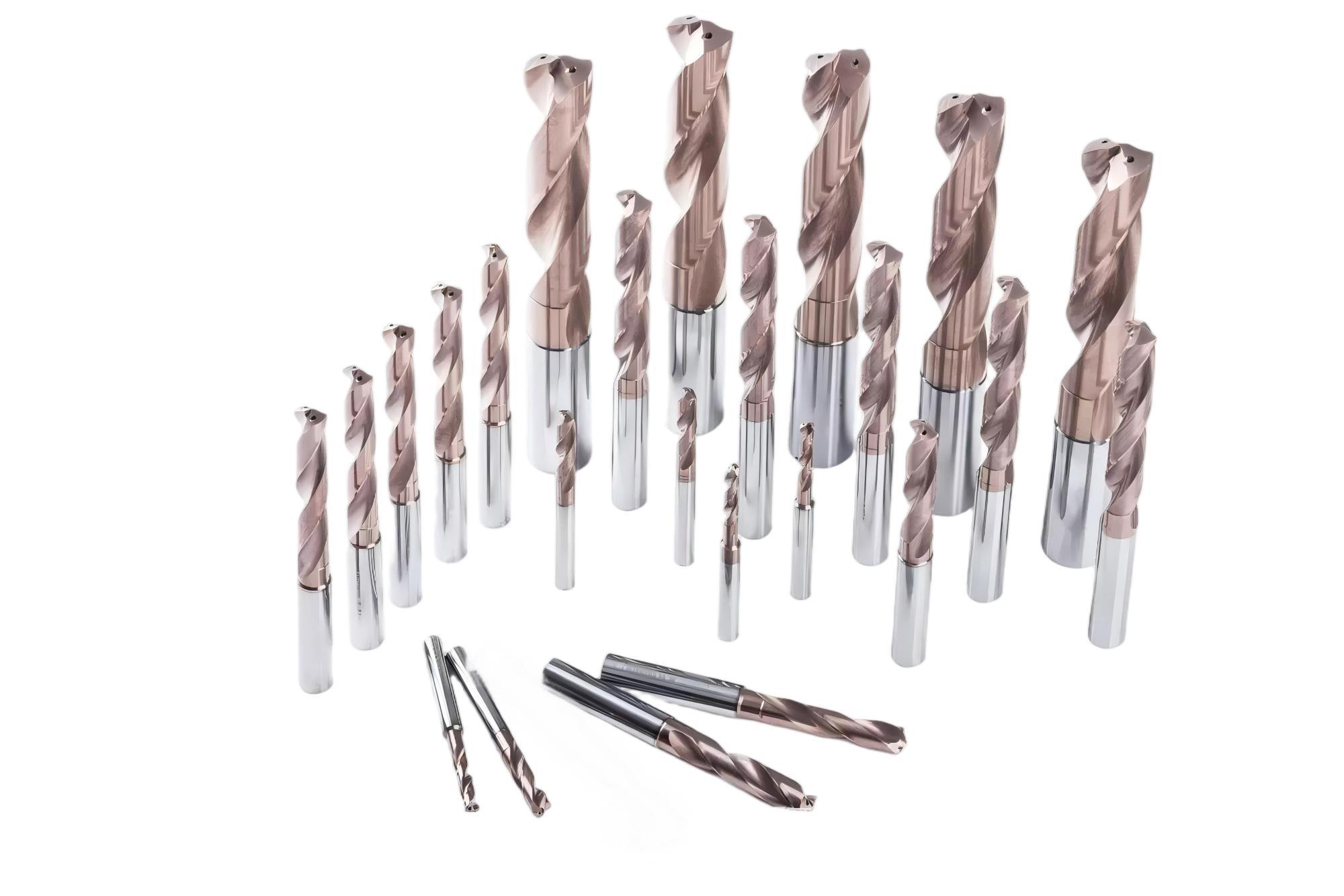

High Accuracy Solid Carbide Drill Universal For Versatile Applications

2pc
MOQ
10—416 USD
Price
High Accuracy Solid Carbide Drill Universal For Versatile Applications
Features Gallery Product Description Chat Now
Features
Specifications
Use: Metal Drilling
Shank Type: Cylindrical
Usage: General High Speed Cutting
Application: Metal Drilling
Surface Finish: Bright
Flute Type: Straight
Helix Angle: 30 Degrees
Precision: High Precision
Highlight:

High Accuracy Solid Carbide Drill

,

High Accuracy carbide dagger drill

,

Versatile Solid Carbide Drill
Basic Infomation
Place of Origin: China
Brand Name: ARNOLD
Certification: ISO9001:2000
Model Number: SP-X80003
Payment & Shipping Terms
Delivery Time: 7-10 days
Supply Ability: 1000000 Piece/Pieces per Month
Product Description

Product Description:

A high-performance 5 × D solid carbide drill with internal cooling channels, designed for medium-depth precision holes in aluminum, steel, stainless steel, and alloys. Internal coolant delivers high-pressure fluid directly to the cutting edges, ensuring efficient chip evacuation, reduced cutting temperature, and superior hole quality. Optimized flute geometry and sharp cutting edges allow high-speed machining with stability and extended tool life, making it ideal for general-purpose drilling.

Features:

  • 5 × D Drilling Depth

  • Solid Carbide Construction

  • Optimized Flute and Cutting Edge Geometry

  • High-Speed Cutting Capability

  • Versatile Applications

Technical Parameters:

High Accuracy Solid Carbide Drill Universal For Versatile Applications 0


Order code
φ ·dc If ds ls lo
Recommended Tap



m7 h6 Dimension Code Cutting Tap Forming Tap
3 28 6 36 66 300


3.1 28 6 36 66 310

3.2 28 6 36 66 320

3.3 28 6 36 66 330 M4X0.7
3.4 28 6 36 66 340 NO.8-32UNC
3.5 28 6 36 66 350 M4x0.5 N0.8-36UNF
3.6 28 6 36 66 360

3.7 28 6 36 66 370
M4X0.7
3.8 36 6 36 74 380
M4X0.5
3.9 36 6 36 74 390 N0.10-24UNC
4 36 6 36 74 400

4.1 36 6 36 74 410 N0.10-32UNF
4.2 36 6 36 74 420 M5X0.8
4.3 36 6 36 74 430

4.4 36 6 36 74 440

4.5 36 6 36 74 450 M5×0.5 NO.12-24UNC
4.6 36 6 36 74 460 N0.12-28UNF M5X0.8
4.7 36 6 36 74 470 N0.12-32UNEF
4.8 44 6 36 82 480

4.9 44 6 36 82 490

5 44 6 36 82 500 M6X1
5.1 44 6 36 82 510 1/4-20UNC
5.2 44 6 36 82 520

5.3 44 6 36 82 530 M6X0.75
5.4 44 6 36 82 540

5.5 44 6 36 82 550 1/4-28UNF M6X1
5.6 44 6 36 82 560 1/4-32UNEF
5.7 44 6 36 82 570

5.8 44 6 36 82 580

5.9 44 6 36 82 590

φ ·dc If ds Is lo
Recommended Tap



m7 h6 Dimension Code Cutting Tap Forming Tap
6 44 6 36 82 600

6.1 53 8 36 91 610

6.2 53 8 36 91 620

6.3 53 8 36 91 630

6.4 53 8 36 91 640

6.5 53 8 36 91 650

6.6 53 8 36 91 660 5/16-18UNC
6.7 53 8 36 91 670

6.8 53 8 36 91 680 M8x1.25
6.9 53 8 36 91 690 5/16-24UNF
7 53 8 36 91 700 M8x1
7.1 53 8 36 91 710 5/16-32UNEF
7.2 53 8 36 91 720

7.3 53 8 36 91 730 M8x0.75
7.4 53 8 36 91 740
M8x1.25
7.5 53 8 36 91 750

7.6 53 8 36 91 760

7.7 53 8 36 91 770

7.8 53 8 36 91 780

7.9 53 8 36 91 790

8 53 8 36 91 800 3/8-16UNC
8.1 61 10 40 103 810

8.2 61 10 40 103 820

8.3 61 10 40 103 830

8.4 61 10 40 103 840

8.5 61 10 40 103 850 M10x1.53/8-24UNF
8.6 61 10 40 103 860

8.7 61 10 40 103 870 3/8-32UNEF
8.8 61 10 40 103 880 M10×1.25
8.9 61 10 40 103 890

Order code
φ ·dc If ds Is lo
Recommended Tap



m7 h6 Dimension Code Cutting Tap Forming Tap
9 61 10 40 103 900 M10x1
9.1 61 10 40 103 910

9.2 61 10 40 103 920

9.3 61 10 40 103 930 M10x0.75 M10x1.5
9.4 61 10 40 103 940 7/16-14UNC
9.5 61 10 40 103 950

9.6 61 10 40 103 960

9.7 61 10 40 103 970

9.8 61 10 40 103 980

9.9 61 10 40 103 990 7/16-20UNF
10 61 10 40 103 1000

10.1 71 12 45 118 1010

10.2 71 12 45 118 1020 7/16-28UNEF
10.3 71 12 45 118 1030 M12x1.75
10.4 71 12 45 118 1040

10.5 71 12 45 118 1050

10.6 71 12 45 118 1060

10.7 71 12 45 118 1070

10.8 71 12 45 118 1080

10.9 71 12 45 118 1090 1/2-13UNC
11 71 12 45 118 1100 M12x1
11.1 71 12 45 118 1110

11.2 71 12 45 118 1120
M12x1.75
11.3 71 12 45 118 1130

11.4 71 12 45 118 1140

11.5 71 12 45 118 1150 1/2-20UNF
11.6 71 12 45 118 1160

11.7 71 12 45 118 1170

11.8 71 12 45 118 1180 1/2-28UNEF
11.9 71 12 45 118 1190

Order code
φ ·dc If ds Is lo
Recommended Tap



m7 h6 Dimension Code Cutting Tap Forming Tap
12 71 12 45 118 1200 M14×2
12.1 77 14 45 124 1210

12.2 77 14 45 124 1220 9/16-12UNC
12.3 77 14 45 124 1230

12.4 77 14 45 124 1240

12.5 77 14 45 124 1250 M14x1.5
12.6 77 14 45 124 1260

12.7 77 14 45 124 1270

12.8 77 14 45 124 1280

12.9 77 14 45 124 1290 9/16-18UNF
13 77 14 45 124 1300 M14x1 M14×2
13.1 77 14 45 124 1310

13.2 77 14 45 124 1320 9/16-24UNEF
13.3 77 14 45 124 1330

13.4 77 14 45 124 1340

13.5 77 14 45 124 1350

13.6 77 14 45 124 1360 5/8-11UNC
13.7 77 14 45 12 1370

13.8 77 14 45 4124 1380

13.9 77 14 45 124 1390

14 77 14 45 124 1400 M16x2
14.1 83 16 48 133 1410

14.2 83 16 48 133 1420

14.3 83 16 48 133 1430

14.4 83 16 48 133 1440

14.5 83 16 48 133 1450 M16x1.55/8-18UNF
14.6 83 16 48 133 1460

14.7 83 16 48 133 1470

14.8 83 16 48 133 1480 5/8-24UNEF
14.9 83 16 48 133 1490

Order code
φ ·dc If ds Is lo
Recommended Tap



m7 h6 Dimension Code Cutting Tap Forming Tap
15 83 16 48 133 1500 M16x1 M16x2
15.1 83 16 48 133 1510

15.2 83 16 48 133 1520

15.3 83 16 48 133 1530

15.4 83 16 48 133 1540

15.5 83 16 48 133 1550 M18x2.5
15.6 83 16 48 133 1560

15.7 83 16 48 133 1570

15.8 83 16 48 133 1580

15.9 83 16 48 133 1590

16 83 16 48 133 1600 M18×2
16.1 93 18 48 143 1610

16.2 93 18 48 143 1620

16.3 93 18 48 143 1630

16.4 93 18 48 143 1640

16.5 93 18 48 143 1650

16.6 93 18 48 143 1660 3/4-10UNC
16.7 93 18 48 143 1670

16.8 93 18 48 143 1680

16.9 93 18 48 143 1690

17 93 18 48 143 1700 M18x1
17.1 93 18 48 143 1710

17.2 93 18 48 143 1720

17.3 93 18 48 143 1730

17.4 93 18 48 143 1740

17.5 93 18 48 143 1750 M20x2.53/4-16UNF
17.6 93 18 48 143 1760

17.7 93 18 48 143 1770

17.8 93 18 48 143 1780 3/4-20UNEF
17.9 93 18 48 143 1790

φ ·dc If ds Is lo
Recommended Tap



m7 h6 Dimension Code Cutting Tap Forming Tap
18 93 18 48 143 1800 M20x2
18.1 101 20 50 153 1810

18.2 101 20 50 153 1820

18.3 101 20 50 153 1830

18.4 101 20 50 153 1840

18.5 101 20 50 153 1850 M20x1.5
18.6 101 20 50 153 1860

18.7 101 20 50 153 1870

18.8 101 20 50 153 1880

18.9 101 20 50 153 1890

19 101 20 50 153 1900 M20x1
19.1 101 20 50 153 1910

19.2 101 20 50 153 1920

19.3 101 20 50 153 1930

19.4 101 20 50 153 1940

19.5 101 20 50 153 1950

19.6 101 20 50 153 1960 7/8-9UNC
19.7 101 20 50 153 1970

19.8 101 20 50 153 1980

19.9 101 20 50 153 1990


20 101 20 50 153 2000 M22x2


Applications:

Aerospace: mounting holes in aluminum spars, ribs, and skins; bolt holes in accessory components.

    • Automotive: engine block and cylinder head oil/water holes; chassis mounting holes.

    • Mold & Die: cooling channels and locating holes.

    • General machinery: housings, brackets, pump and valve bodies.

    • New Energy & Electrical: motor or battery aluminum casing holes; PV racks and assembly holes
