Name: 8xD Carbide Jobber Drills Stainless Steel ISO DIN Standard Internal Cooling
Brand: Ningbo Lianchuang Hewo Precision Tools Co., Ltd
SKU: SP-X80108
Price: 213.00 USD
Availability: InStock

Features Gallery Product Description Chat Now

Features

Specifications

Suitable For Materials: P 、M 、K 、S

Customize: Available

Standard: ISO, DIN

Shank: Round Shank

Usage: General High Speed Cutting

Application: Metal Drilling

Shank Type: Cylindrical

Use: Metal Drilling

Highlight:

8xD Carbide Jobber Drills

8xD high performance carbide drills

Stainless Steel Carbide Jobber Drills

Basic Infomation

Place of Origin: China

Brand Name: ARNOLD

Certification: ISO9001:2000

Model Number: SP-X80108

Payment & Shipping Terms

Delivery Time: 7-10 days

Supply Ability: 1000000 Piece/Pieces per Month

Gallery

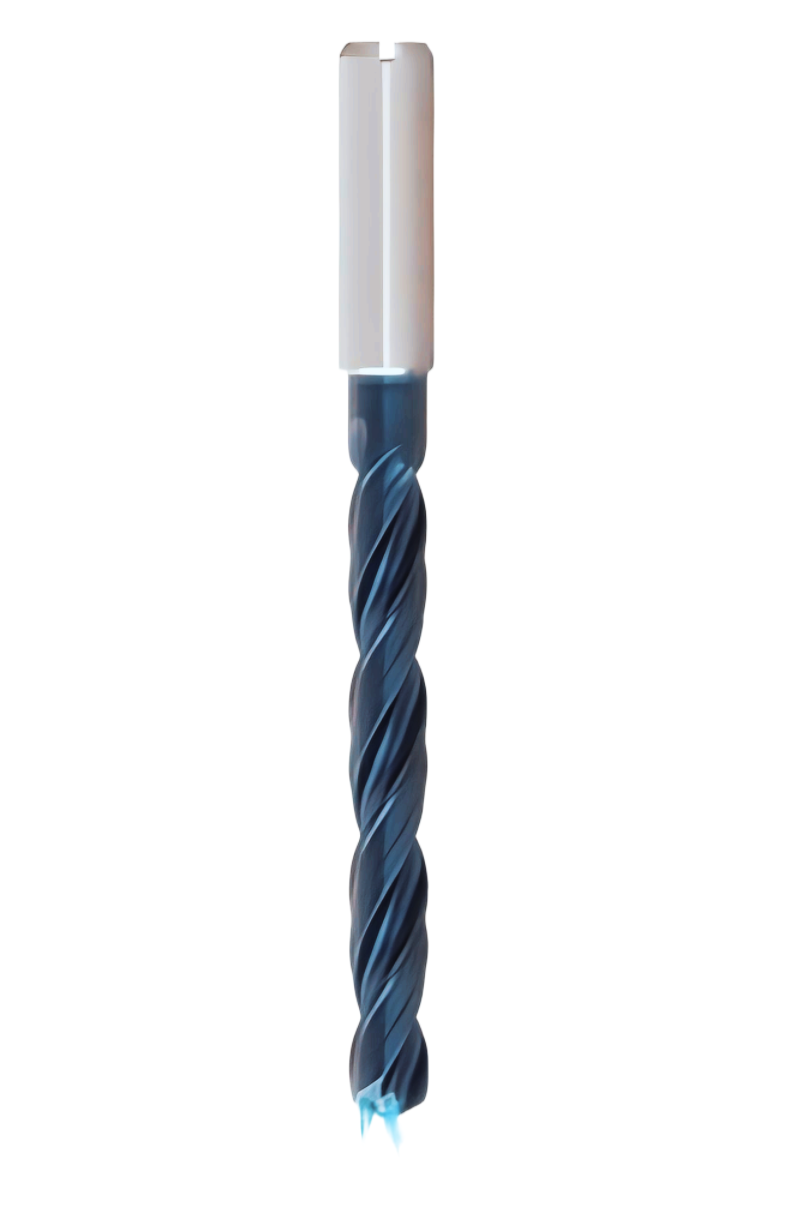

8xD Carbide Jobber Drills Stainless Steel ISO DIN Standard Internal Cooling

Product Description

8D Solid Carbide Drill for Stainless Steel (ISO/DIN Standard, Internal Cooling)

Product Description:

A high-performance 8 × D solid carbide drill designed for stainless steel and other hard-to-machine alloys. Compliant with ISO and DIN standards, this drill features internal cooling channels to deliver high-pressure coolant directly to the cutting edges, ensuring efficient heat dissipation, smooth chip evacuation, and superior hole quality. Optimized cutting geometry and polished flutes provide stability, high precision, and long tool life even in demanding deep-hole drilling applications.

Key Features:

8 × D drilling depth → suitable for deep-hole precision machining in stainless steel.
Solid carbide construction → high rigidity, wear-resistant, long tool life.
Internal cooling channels → direct coolant delivery for efficient cooling and chip removal.
ISO/DIN standard design → ensures universal compatibility and reliable performance.
Optimized cutting geometry & polished flutes → smooth chip evacuation, reduced built-up edge.
High-speed cutting capability → suitable for CNC machining of stainless steel and alloys.

Technical Parameters

Order code
φ ·dc	If	ds	ls	lo		Recommended Tap
						Recommended Tap
m7		h6			Dimension Code	Cutting Tap	Forming Tap
3	30	4	36	70	300
3.1	30	4	36	70	310
3.2	30	4	36	70	320
3.3	30	4	36	70	330	M4x0.7
3.4	35.5	4	36	75	340	NO.8-32UNC
3.5	35.5	4	36	75	350	M4x0.5 N0.8-36UNF
3.6	35.5	4	36	75	360
3.7	35.5	4	36	75	370		M4×0.7
3.8	42	4	36	83	380		M4x0.5
3.9	42	4	36	83	390	N0.10-24UNC
4	42	4	36	83	400
4.1	50	6	36	90	410	N0.10-32UNF
4.2	50	6	36	90	420	M5×0.8
4.3	50	6	36	90	430
4.4	50	6	36	90	440
4.5	50	6	36	90	450	M5×0.5 NO.12-24UNC
4.6	50	6	36	90	460	N0.12-28UNF	M5x0.8
4.7	50	6	36	90	470	N0.12-32UNEF
4.8	50	6	36	90	480
A.9	50	6	36	90	490
5	50	6	36	90	500	M6x1
5.1	57	6	36	97	510	1/4-20UNC
5.2	57	6	36	97	520
5.3	57	6	36	97	530	M6x0.75
5.4	57	6	36	97	540
5.5	57	6	36	97	550	1/4-28UNF	M6x1
5.6	57	6	36	97	560	1/4-32UNEF
5.7	57	6	36	97	570
5.8	57	6	36	97	580
5.9	57	6	36	97	590
Order code
φ ·dc	If	ds	Is	lo		Recommended Tap
						Recommended Tap
m7		h6			Dimension Code	Cutting Tap	Forming Tap
6	57	6	36	97	600
6.1	66	8	36	106	610
6.2	66	8	36	106	620
6.3	66	8	36	106	630
6.4	66	8	36	106	640
6.5	66	8	36	106	650
6.6	66	8	36	106	660	5/16-18UNC
6.7	66	8	36	106	670
6.8	66	8	36	106	680	M8x1.25
6.9	76	8	36	116	690	5/16-24UNF
7	76	8	36	116	700	M8x1
7.1	76	8	36	116	710	5/16-32UNEF
7.2	76	8	36	116	720
7.3	76	8	36	116	730	M8x0.75
7.4	76	8	36	116	740		M8x1.25
7.5	76	8	36	116	750
7.6	76	8	36	116	760
7.7	76	8	36	116	770
7.8	76	8	36	116	780
7.9	76	8	36	116	790
8	76	8	36	116	800	3/8-16UNC
8.1	87	10	40	131	810
8.2	87	10	40	131	820
8.3	87	10	40	131	830
8.4	87	10	40	131	840
8.5	87	10	40	131	850	M10x1.53/8-24UNF
8.6	87	10	40	131	860
8.7	87	10	40	131	870	3/8-32UNEF
8.8	87	10	40	131	880	M10×1.25
8.9	87	10	40	131	890
Order code
φ ·dc	If	ds	ls	lo		Recommended Tap
						Recommended Tap
m7		h6			Dimension Code	Cutting Tap	Forming Tap
9	87	10	40	131	900	M10x1
9.1	95	10	40	139	910
9.2	95	10	40	139	920
9.3	95	10	40	139	930	M10x0.75	M10x1.5
9.4	95	10	40	139	940	7/16-14UNC
9.5	95	10	40	139	950
9.6	95	10	40	139	960
9.7	95	10	40	139	970
9.8	95	10	40	139	980
9.9	95	10	40	139	990	7/16-20UNF
10	95	10	40	139	1000
10.1	106	12	45	155	1010
10.2	106	12	45	155	1020	7/16-28UNEF
10.3	106	12	45	155	1030	M12x1.75
10.4	106	12	45	155	1040
10.5	106	12	45	155	1050
10.6	106	12	45	155	1060
10.7	106	12	45	155	1070
10.8	106	12	45	155	1080
10.9	106	12	45	155	1090	1/2-13UNC
11	106	12	45	155	1100	M12x1
11.1	114	12	45	163	1110
11.2	114	12	45	163	1120		M12x1.75
11.3	114	12	45	163	1130
11.4	114	12	45	163	1140
11.5	114	12	45	163	1150	1/2-20UNF
11.6	114	12	45	163	1160
11.7	114	12	45	163	1170
11.8	114	12	45	163	1180	1/2-28UNEF
11.9	114	12	45	163	1190
Order code
φ ·dc	If	ds	Is	lo		Recommended Tap
						Recommended Tap
m7		h6			Dimension Code	Cutting Tap	Forming Tap
12	114	12	45	163	1200	M14×2
12.1	133	14	45	182	1210
12.2	133	14	45	182	1220	9/16-12UNC
12.3	133	14	45	182	1230
12.4	133	14	45	182	1240
12.5	133	14	45	182	1250	M14×1.5
12.6	133	14	45	182	1260
12.7	133	14	45	182	1270
12.8	133	14	45	182	1280
12.9	133	14	45	182	1290	9/16-18UNF
13	133	14	45	182	1300	M14x1	M14×2
13.1	133	14	45	182	1310
13.2	133	14	45	182	1320	9/16-24UNEF
13.3	133	14	45	182	1330
13.4	133	14	45	182	1340
13.5	133	14	45	182	1350
13.6	133	14	45	182	1360	5/8-11UNC
13.7	133	14	45	182	1370
13.8	133	14	45	182	1380
13.9	133	14	45	182	1390
14	133	14	45	182	1400	M16x2
14.1	152	16	48	204	1410
14.2	152	16	48	204	1420
14.3	152	16	48	204	1430
14.4	152	16	48	204	1440
14.5	152	16	48	204	1450	M16x1.55/8-18UNF
14.6	152	16	48	204	1460
14.7	152	16	48	204	1470
14.8	152	16	48	204	1480	5/8-24UNEF
14.9	152	16	48	204	1490
Order code
φ ·dc	If	ds	ls	lo		Recommended Tap
						Recommended Tap
m7		h6			Dimension Code	Cutting Tap	Forming Tap
15	152	16	48	204	1500	M16x1	M16x2
15.1	152	16	48	204	1510
15.2	152	16	48	204	1520
15.3	152	16	48	204	1530
15.4	152	16	48	204	1540
15.5	152	16	48	204	1550	M18x2.5
15.6	152	16	48	204	1560
15.7	152	16	48	204	1570
15.8	152	16	48	204	1580
15.9	152	16	48	204	1590
16	152	16	48	204	1600	M18x2
16.1	171	18	48	223	1610
16.2	171	18	48	223	1620
16.3	171	18	48	223	1630
16.4	171	18	48	223	1640
16.5	171	18	48	223	1650
16.6	171	18	48	223	1660	3/4-10UNC
16.7	171	18	48	223	1670
16.8	171	18	48	223	1680
16.9	171	18	48	223	1690
17	171	18	48	223	1700	M18x1
17.1	171	18	48	223	1710
17.2	171	18	48	223	1720
17.3	171	18	48	223	1730
17.4	171	18	48	223	1740
17.5	171	18	48	223	1750	M20x2.53/4-16UNF
17.6	171	18	48	223	1760
17.7	171	18	48	223	1770
17.8	171	18	48	223	1780	3/4-20UNEF
17.9	171	18	48	223	1790
Order code
φ ·dc	If	ds	Is	lo		Recommended Tap
						Recommended Tap
m7		h6			Dimension Code	Cutting Tap	Forming Tap
18	171	18	48	223	1800	M20x2
18.1	190	20	50	244	1810
18.2	190	20	50	244	1820
18.3	190	20	50	244	1830
18.4	190	20	50	244	1840
18.5	190	20	50	244	1850	M20x1.5
18.6	190	20	50	244	1860
18.7	190	20	50	244	1870
18.8	190	20	50	244	1880
18.9	190	20	50	244	1890
19	190	20	50	244	1900	M20x1
19.1	190	20	50	244	1910
19.2	190	20	50	244	1920
19.3	190	20	50	244	1930
19.4	190	20	50	244	1940
19.5	190	20	50	244	1950
19.6	190	20	50	244	1960	7/8-9UNC
19.7	190	20	50	244	1970
19.8	190	20	50	244	1980
19.9	190	20	50	244	1990
20	190	20	50	244	2000	M22x2

Typical Applications

Aerospace stainless steel components with deep precision holes.
Automotive engine blocks, cylinder heads, and chassis stainless steel parts.
Food processing and medical device stainless steel components.
Industrial machinery and equipment requiring deep stainless steel holes.
