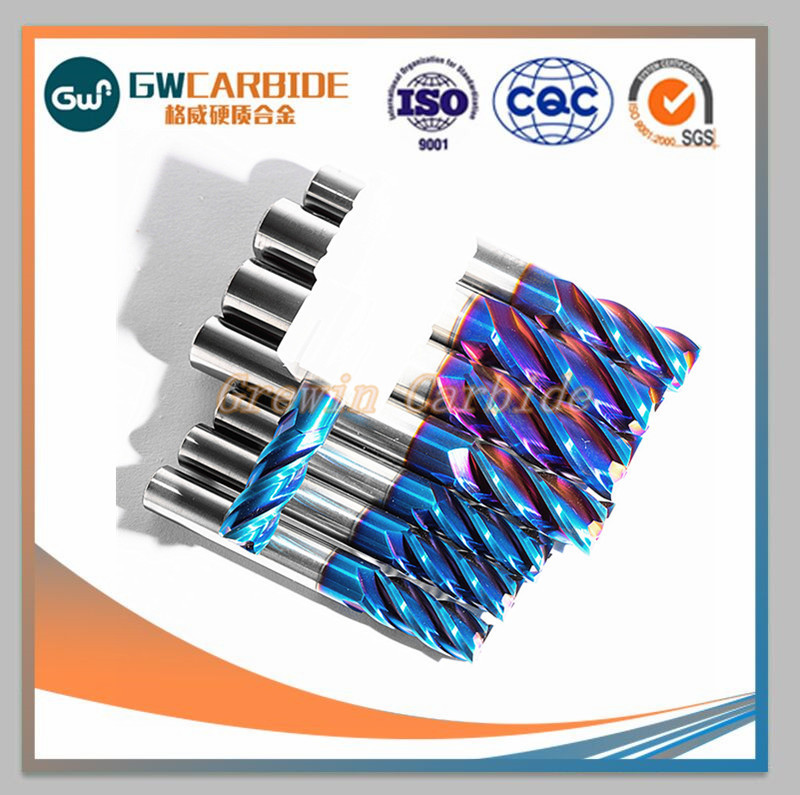

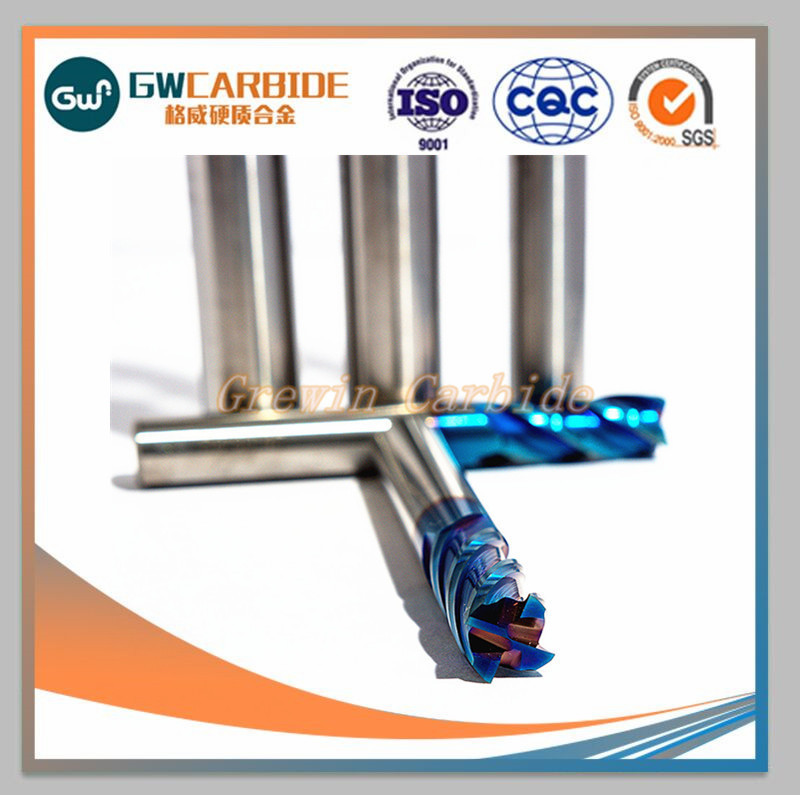

4 Flutes Solid Carbide End Mills With Standard Long Length / Cutting Length
10pcs
MOQ
negotiable
Price
4 Flutes Solid Carbide End Mills With Standard Long Length /  Cutting Length
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: Zhuzhou--Carbide City
Brand Name: Whitout Brand
Certification: ISO9001, SGS
Model Number: As your requirements
High Light:

square cutting end mill

,

square end drill bit

Payment & Shipping Terms
Packaging Details: 1PCS in a plastic tube, 10 PCS per group
Delivery Time: 15-25 work days
Payment Terms: T/T, PAYPAL, WESTERN UNION
Supply Ability: 50000pcs/Month
Specifications
Specification: SGS
Suitable For: Steel, Mould Steel, Stainless Steel, Aluminium
Processing Precision: 0.02mm
Chemical Composition: 6%-12% Co-Wc
Flute: 3 Flutes For Aluminum
Helix Angel: 35 Degree
Product Description

4 Flutes Solid Carbide End Mills With Standard Long Length, Cutting Length





Introduction of the carbide materials of the End mill



Carbide Grade Technical Details of tungsten carbide rod
10U Co:10% WC 89% rare element: 1% HRA: 90.5°Grain Size: 0.75um
12U Co:12% WC 85% rare element: 3% HRA: 92.5°Grain Size: 0.4um
K40 Co:12% WC 84% rare element: 4% HRA: 93°Grain Size: 0.4um
K44 Co:12% WC 84% rare element: 4% HRA: 93.5°Grain Size: 0.4um


The materials to be cut



Carbide Grade HRC of End mill Materials to be cut
10U HRC45-50 For cutting the materials under HRC35
12U HRC55-58 For cutting the materials under HRC50
K40 HRC60-62 For cutting the materials under HRC55
K44 HRC65-70 For cutting the materials under HRC63


Introduction of carbide materials of the End mill




  AlTiN TiAlN TiSlN Nano
Hardness(HV) 3200 2800 3600 42(GPA)
Thickness(UM) 2.5-3 2.5-3 3 3
Oxidation Temp(°) 900 800 1000 1200
Friction Coefficient 0.3 0.3 0.45 0.4
Color Black Violet Copper Blue



Product features

Type: Roughing End Mills

Shank Diameter:1/4" / Cutting Diameter: 1/4"

Flutes length:3/4" / Overall Length: 2"

Work Material Hardness: HRC45 / Helix: 35 / Number of Flute: 4F

Coating: TiAIN / Material: Tungsten carbide / Packaging: Plastic box





Size sheet for other end mills:



Code No.



Diamter

d

Cutting length

l

Total length

L

Shank

D

Flutes

Z


4GW1-01003050 1 3 50 4 4
4GW1-01504050 1.5 4 50 4 4
4GW1-02050500 2 5 50 4 4
4GW1-02507050 2.5 7 50 4 4
4GW1-03008050 3 8 50 4 4
4GW1-04010050 4 10 50 4 4
4GW1-04015075 4 15 75 4 4
4GW1-04020100 4 20 100 4 4
4GW1-05013050 5 13 50 6 4
4GW1-06015050 6 15 50 6 4
4GW1-06020075 6 20 75 6 4
4GW1-06030100 6 30 100 6 4
4GW1-06020060 8 20 60 8 4
4GW1-08025075 8 25 75 8 4
4GW1-08035100 8 35 100 8 4
4GW1-010025075 10 25 75 10 4
4GW1-010040100 10 40 100 10 4
4GW1-012030075 12 30 75 12 4
4GW1-012040100 12 40 100 12 4
4GW1-014030080 14 30 80 14 4
4GW1-014100100 14 40 100 14 4
4GW1-016040100 16 40 100 16 4
4GW1-018040100 18 40 100 18 4
4GW1-020040100 20 40 100 20 4
4GW1-06040150 6 40 150 6 4
4GW1-08050150 8 50 150 8 4
4GW1-010050150 10 50 150 10 4
4GW1-012050150 12 50 150 12 4
4GW1-014060150 14 60 150 14 4
4GW1-016060150 16 60 150 16 4
4GW1-018060150 18 60 150 18 4
4GW1-020060150 20 60 150 20 4

Our Services
More than 2000 products are available. Assembly line production, high standard and strict requirements.
OEM Services Offered
Customized Tools Offered
Free laser marking on tools and boxes Offered
Fast delivery time and Convenient Transportations. We have discount on shipping cost from our courier companies, such as FedEx, DHL, TNT, UPS etc.
