2-12Mm Carbide Square End Mill 4 Flute Milling Cutter CNC Tools Set
10pcs
MOQ
negotiable
Price
2-12Mm Carbide Square End Mill 4 Flute Milling Cutter CNC Tools Set
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: Zhuzhou--Carbide City
Brand Name: Whitout Brand
Certification: ISO9001, SGS
Model Number: As your requirements
High Light:

12Mm Carbide Square End Mill

,

metal Carbide Square End Mill

,

CNC 4 Flute Milling Cutter

Payment & Shipping Terms
Packaging Details: 1PCS in a plastic tube, 10 PCS per group
Delivery Time: 15-25 work days
Payment Terms: T/T, PAYPAL, WESTERN UNION
Supply Ability: 50000pcs/Month
Specifications
Diameter: 6-20mm, Customized
Length: 50-150mm, Customized
Controlling Mode: CNC Tooling System
Suitable For: Wood/aluminium/metal
Place Of Origin: China (Mainland)
Helix Angle: 30° /35°/ 45°
Cutting: Rough
Product Description

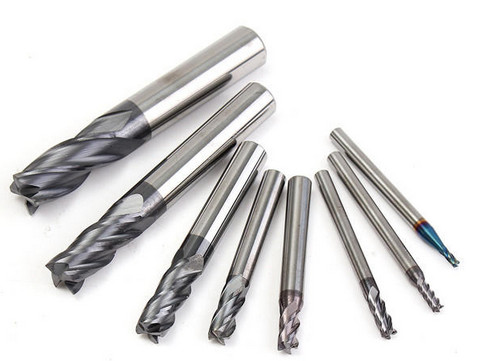

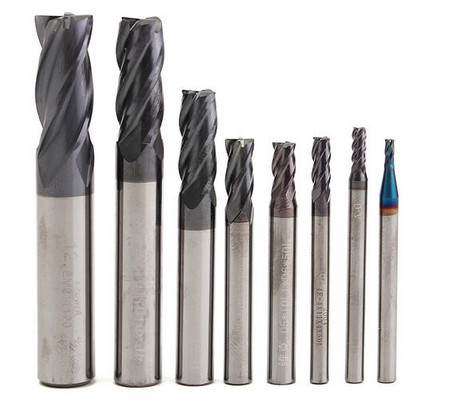

2-12mm Carbide Square End Mill 4 Flutes Tungsten Steel Milling Cutter CNC Tools Set



4 flutes Flat End Mill



2-12Mm Carbide Square End Mill 4 Flute Milling Cutter CNC Tools Set 0



HRC choice: HRC38-45, HRC45-50, HRC55-58, HRC60-62, HRC65-70
Coating choice: AITiN, AICrSiN, AITiCrSIN, TiSiN, NACO-BLUE
Materials to be cut: original steel, cast iron, Aluminum, copper, graphite, plastics,
Titanium , alloy, harden steel, stainless steel, HSS etc.



Code No.

Diamter
d
Cutting length
l
Total length
L
Shank
D
Flutes
Z
4GW1-01003050 1 3 50 4 4
4GW1-01504050 1.5 4 50 4 4
4GW1-02050500 2 5 50 4 4
4GW1-02507050 2.5 7 50 4 4
4GW1-03008050 3 8 50 4 4
4GW1-04010050 4 10 50 4 4
4GW1-04015075 4 15 75 4 4
4GW1-04020100 4 20 100 4 4
4GW1-05013050 5 13 50 6 4
4GW1-06015050 6 15 50 6 4
4GW1-06020075 6 20 75 6 4
4GW1-06030100 6 30 100 6 4
4GW1-06020060 8 20 60 8 4
4GW1-08025075 8 25 75 8 4
4GW1-08035100 8 35 100 8 4
4GW1-010025075 10 25 75 10 4
4GW1-010040100 10 40 100 10 4
4GW1-012030075 12 30 75 12 4
4GW1-012040100 12 40 100 12 4
4GW1-014030080 14 30 80 14 4
4GW1-014100100 14 40 100 14 4
4GW1-016040100 16 40 100 16 4
4GW1-018040100 18 40 100 18 4
4GW1-020040100 20 40 100 20 4
4GW1-06040150 6 40 150 6 4
4GW1-08050150 8 50 150 8 4
4GW1-010050150 10 50 150 10 4
4GW1-012050150 12 50 150 12 4
4GW1-014060150 14 60 150 14 4
4GW1-016060150 16 60 150 16 4
4GW1-018060150 18 60 150 18 4
4GW1-020060150 20 60 150 20 4





Features:
- Quality materials, durable, precision processing, efficient work, humanized design.

- Spiral design, large capacity smooth chip removal, prevent sticking and reduce heat.
- Cemented carbide has good pressure resistance, good toughness, high hardness and good wear resistance.
- Round smooth handles with precise chamfering are easier.


Package Included:
1pc x Milling Cutter





Advanced automatic CNC grinding machine and testing equipment, such as
We established the fabrication facilities by " " CNC Grinding Machines which supports us serve for more precision product to customers.
Imported 16 sets 5-AXIS CNC machine :
2 sets " HP" from Germany, specializing in manufacture large diameter tools;
1 set " Micro"from Germany,specializing in manufacture Micro diameter tools;
2 sets Schutte Wu 305 Linear from German;
2 sest Star PTG6 from USA;
2 set "Rollomatic GrindSmart628XS" high precision grinding machine from Switzerland;
1 set Rollomatic NP5 from Switzerland.

1 set URMA digiset 3 tool measuring equipment from Switzerland;
2 sets PG 1000 tool measuring equipment testing the point of drill bit from USA;
1 set Mitutoyo Laser Scan Micrometer Equipment.



Company Information

Zhuzhou Grewin Tungsten Carbide Tools Co., Ltd is located in hometown of Chinese carbide industry - Zhuzhou city. The company has more than 20 years' experience in manufacture, design and sale of various kinds of carbide products, main products include: Carbide end mills, carbide rods, indexable inserts, brazed inserts, wire drawing dies, forging dies, wood working tools, saw tips, mining buttons, etc
The company has passed ISO 9001: 2008 quality system, possesses advanced production equipments, complete testing instruments, strong R&D center and QC teams.
With excellent quality, strong technical support, and good after sales service, Grewin Carbide brand products are sold to more than 50 countries in the world, such as Europe, USA, south east Asia, Middle East, south America, etc.

The company is dedicated to " WE GROW, WE WIN". Grewin Carbide is growing up with the World's carbide technology, to meet the demand of our customers from all over the world.
