Durable Solid Carbide Rods Blanks Round With Hole YL10.2 H6 YG6 YG8
10pcs
MOQ
negotiable
Price
Durable Solid Carbide Rods Blanks Round With Hole YL10.2 H6 YG6 YG8
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: Zhuzhou--Carbide City
Brand Name: Whitout Brand
Certification: ISO9001, SGS
Model Number: As your requirements
High Light:

Durable Solid Carbide Rods

,

YG6 Solid Carbide Rods

,

H6 carbide blanks round

Payment & Shipping Terms
Packaging Details: 1PCS in a plastic tube, 10 PCS per group
Delivery Time: 15-25 work days
Payment Terms: T/T, PAYPAL, WESTERN UNION
Supply Ability: 50000pcs/Month
Specifications
SIZE: 3X330mm,25X330mm, 3x10x310mm, 25x100x310mm As Drawing
SURFACE: GRIDING OR BLANK
MATERIAL: TUNGSTEN CARBIDE
GRADE: YL10.2, H10F, YG6, YG8
ORIGINAL: ZHUZHOU, HUNAN
Product Description

Durable Solid Carbide Rods With Hole YL10.2 H6 Griding Surface Strip Blank YG6 YG8

Zhuzhou Grewin Carbide is engaged in manufacture and export wide range of tungsten carbide tools, wear parts and components in different industries. we can provide carbide rod with HIP sintering, with H6 grinding and 330mm with single hole or double holes. our good prices, quality and services are waiting for you.


2.Advantages on tungsten carbide rod:

1. HIP sintering to ensure good performance.
2. various grades and types available according to different working environment request.
3. very good price, discount for large quantity.
4. fast delivery time.
5. high precision ground, such as h6


3.Description

Size Standard or customized
Brand G&W
Delivery Time 7-15 days
Package Plastic box
Payment Type T/T, Western Union, Paypal
Main markets Turkey, Israel, USA, Pakistan, Egypt, Germany, Iran, Thailand, India, etc



4.Grade


Grade ISO range Cobalt % Density
g/cm3
Hardness
HRA
TRS
N/mm2
YG8 K30 8 14.80 89.5 2200
YG6 K20 6 14.95 90.5 1900
YG6X K10 6 14.95 91.5 1800
YL10.2 K30 10 14.50 91.8 2400
YG13X K30-K40 13 14.30 89.5 2600
YG15 K40 15 14.00 87.5 280



5. Size


Solid Rods (Metric) 330mm



Unground
h6

L

Tol.
Unground
h6

L

Tol.
D Tol. D Tol.
Ø2.2 +0.3/+0 2.0 330 +5/+0 Ø17.2 +0.3/+0 17 330 +5/+0
Ø3.2 +0.3/+0 3.0 330 +5/+0 Ø18.2 +0.3/+0 18 330 +5/+0
Ø4.2 +0.3/+0 4.0 330 +5/+0 Ø19.2 +0.3/+0 19 330 +5/+0
Ø5.2 +0.3/+0 5.0 330 +5/+0 Ø20.2 +0.3/+0 20 330 +5/+0
Ø6.2 +0.3/+0 6.0 330 +5/+0 Ø21.2 +0.3/+0 21 330 +5/+0
Ø7.2 +0.3/+0 7.0 330 +5/+0 Ø22.2 +0.3/+0 22 330 +5/+0
Ø8.2 +0.3/+0 8.0 330 +5/+0 Ø23.2 +0.3/+0 23 330 +5/+0
Ø9.2 +0.3/+0 9.0 330 +5/+0 Ø24.2 +0.3/+0 24 330 +5/+0
Ø10.2 +0.3/+0 10.0 330 +5/+0 Ø25.2 +0.3/+0 25 330 +5/+0
Ø11.2 +0.3/+0 11.0 330 +5/+0 Ø26.2 +0.3/+0 26 330 +5/+0
Ø12.2 +0.3/+0 12.0 330 +5/+0 Ø27.2 +0.3/+0 27 330 +5/+0
Ø13.2 +0.3/+0 13.0 330 +5/+0 Ø28.2 +0.3/+0 28 330 +5/+0
Ø14.2 +0.3/+0 14.0 330 +5/+0 Ø29.2 +0.3/+0 29 330 +5/+0
Ø15.2 +0.3/+0 15.0 330 +5/+0 Ø30.2 +0.3/+0 30 330 +5/+0
Ø16.2 +0.3/+0 16.0 330 +5/+0



Two straight coolant ducts rods, Reduced TK



Unground
Ground h6

TK

Tol.

D

Tol.

L

a

D

Tol.
6.3

+0.3/0
6.0 1.5 0/-0.20 0.80




±0.15







330
0.15
7.3 7.0 1.5 0.80 0.15
8.3 8.0 2.6




0/-0.30
1.00 0.15
9.3 9.0 2.6 1.00 0.20
10.3 10.0 2.6 1.00 0.20
11.3

+0.4/0
11.0 3.5 1.20 0.28
12.3 12.0 3.5 1.20 0.30
13.3 13.0 3.5 1.20 0.34
14.3 14.0 5.0 1.50 0.37
15.3 15.0 5.0 1.50 0.40
16.3 16.0 5.0 1.50

±0.20
0.40
17.3
+0.5/0
17.0 6.2 2.00 0.47
18.3 18.0 6.2 2.00 0.50
19.3 19.0 6.2 2.00 0.50
20.3 20.0 6.2 0/-0.40 2.00 ±0.30 0.50



30° Two Helical Coolant Ducts(Type HE-30°)



Unground
Ground h6
L
Tol. +5.0

TK

Tol.

D

Tol.

Pitch
D Tol.
6.3

+0.4/+1.0
6.0 330 2.7
±0.2
0.80


±0.15
32.65
7.3 7.0 330 3.5 1.00 38.09
8.3 8.0 330 3.4 1.00 43.53
9.3 9.0 330 4.5 ±0.3 1.40 48.97
10.3 10.0 330 4.8 1.30 54.41
11.3

+0.4/+1.2
11.0 330 4.9



±0.4
1.40 59.86
12.3 12.0 330 6.3 1.70 65.30
13.3 13.0 330 6.1 1.75
±0.20
70.74
14.3 14.0 330 6.7 1.80 76.18
15.3 15.0 330 7.3 1.75 81.82
16.3

+0.4/+1.4
16.0 330 8.0 2.00 87.06
17.3 17.0 330 8.5 1.75
±0.25
92.50
18.3 18.0 330 9.0 2.30 97.95
19.3 19.0 330 9.7 2.00 103.39
20.3 20.0 330 10.0 ±0.5 2.50 108.83

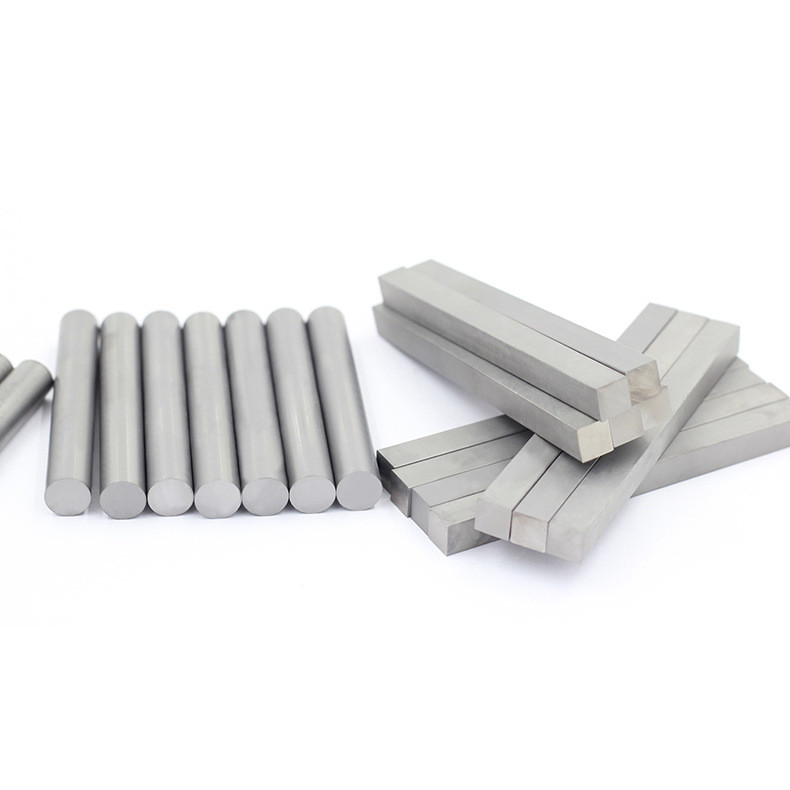

Durable Solid Carbide Rods Blanks Round With Hole YL10.2 H6 YG6 YG8 0

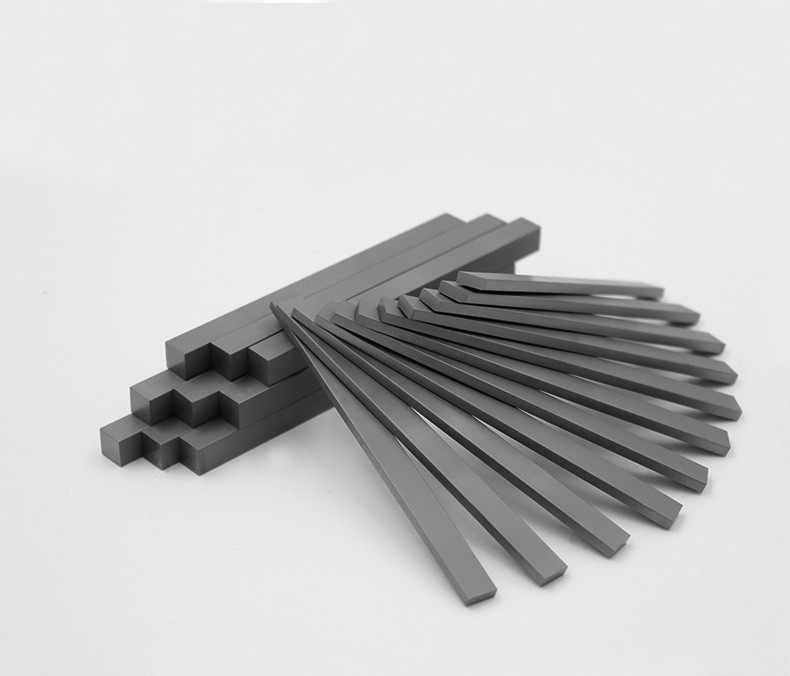

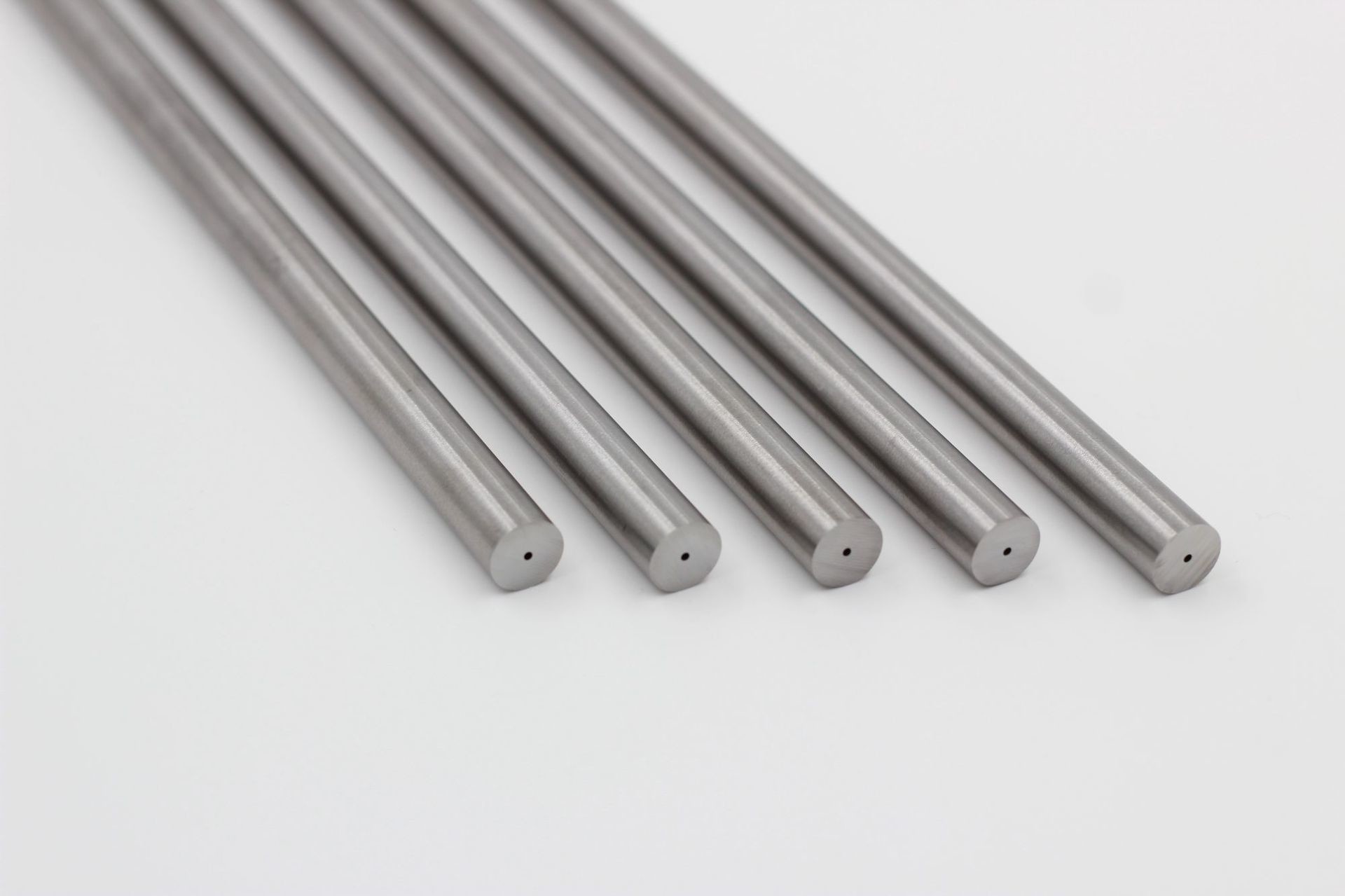

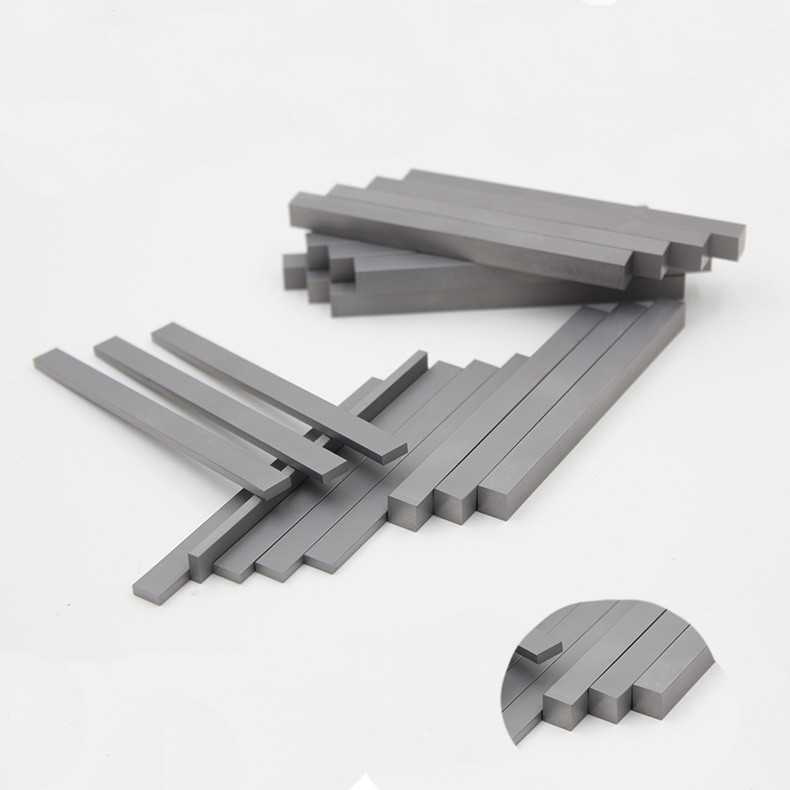

Durable Solid Carbide Rods Blanks Round With Hole YL10.2 H6 YG6 YG8 1Durable Solid Carbide Rods Blanks Round With Hole YL10.2 H6 YG6 YG8 2Durable Solid Carbide Rods Blanks Round With Hole YL10.2 H6 YG6 YG8 3

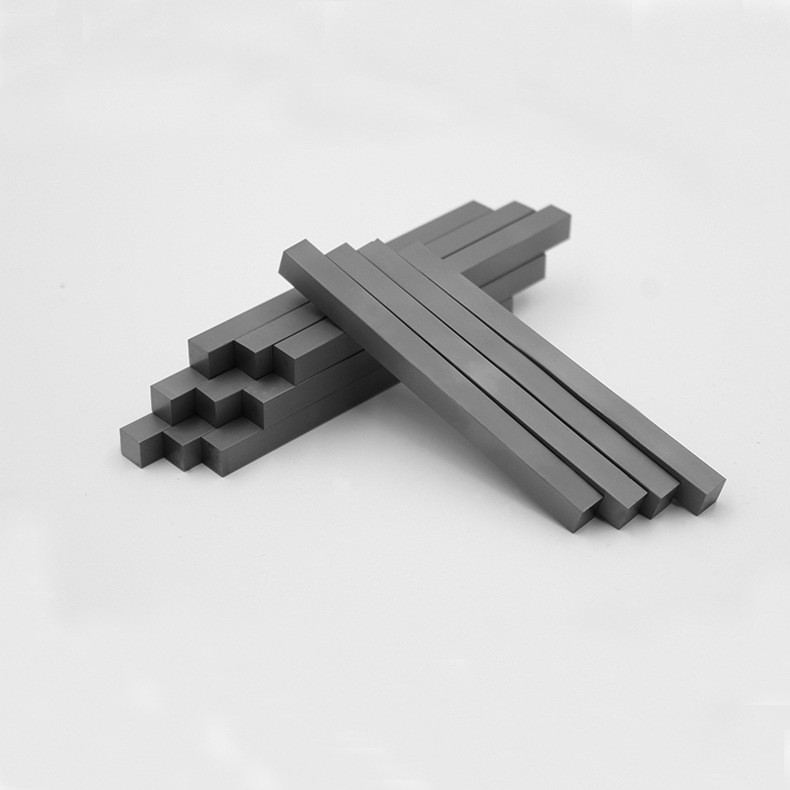

Durable Solid Carbide Rods Blanks Round With Hole YL10.2 H6 YG6 YG8 4

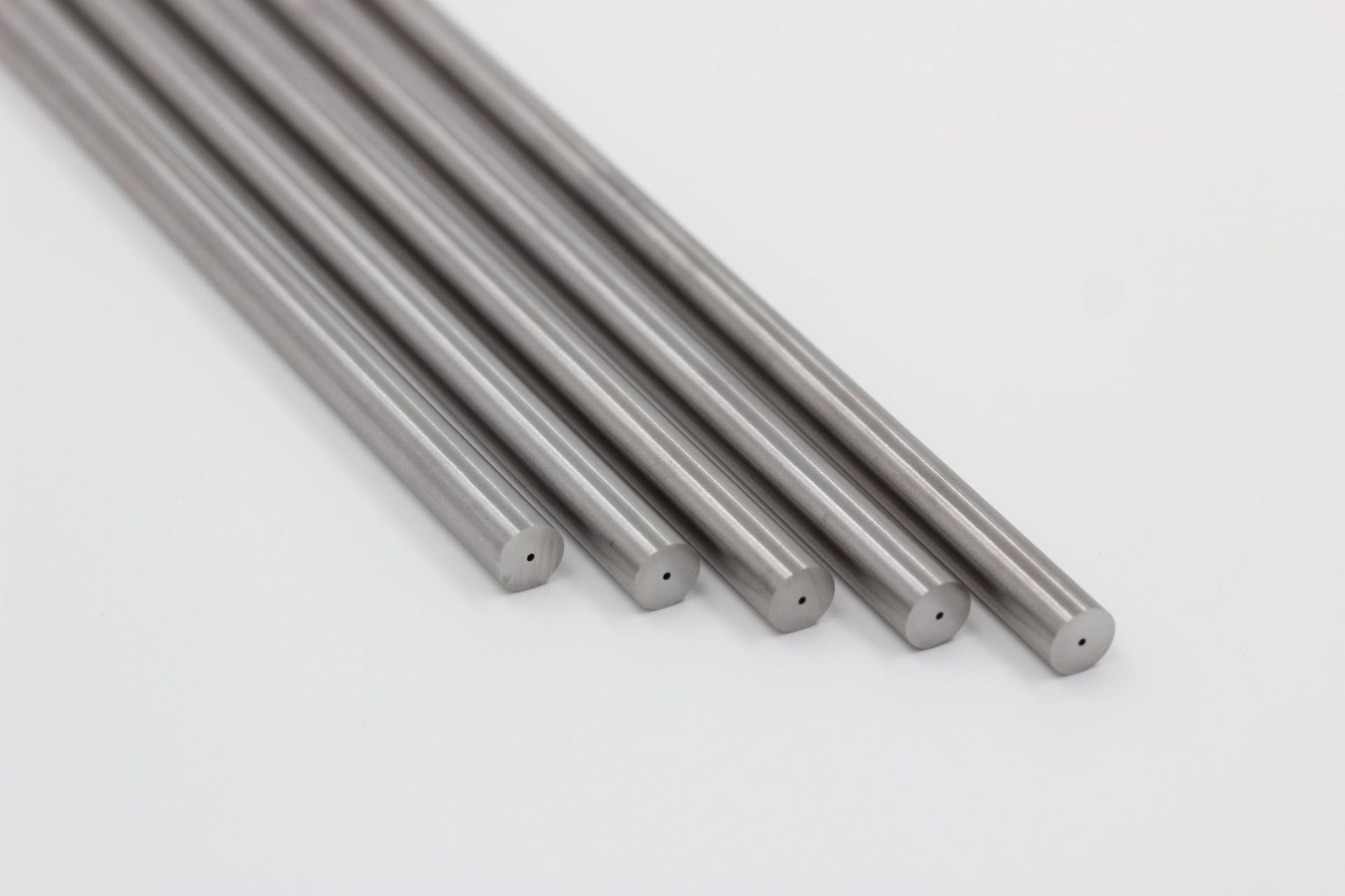

Durable Solid Carbide Rods Blanks Round With Hole YL10.2 H6 YG6 YG8 5
