HRC 65 Solid Carbide Ball Nose End Mill
1.Products Description
Micro grain raw material
Grain size: 0.4-0.6μm
Co 10%, 12%
TRS >3600 N/mm2
Hardness HRA 91.8-92.5
Work piece HRC45-50 HRC55-60 HRC65 HRC68
Helix angle 30°-45 °
Diameter of cutting edge 0.2-0.9 mm; 1-20 mm
Diameter of rods 4-20 mm
Length 50-100 mm
Cutting Form Flat, Square, Ball nose, Corner Radius, Taper Flute, etc
Flutes No. 1-12
| HRC45 | HRC55 | HRC60 | HRC65 |
| Grain Size: 0.6um Co: 10 % Flexural strength: 3350N/mm2 |
Grain Size: 0.6um Co: 10 % Flexural strength: 4000N/mm2 |
Grain Size: 0.5um Co: 12 % Flexural strength: 4300N/mm2 |
Grain Size: 0.4um Co: 12.5 % Flexural strength: 4300N/mm2 |
2. Application
Used for cutting Carbon steel, Tool steel, Mould steel, Stainless steel, Titanium alloy, Copper, Cast Iron and Aluminium, etc.
Grinding equipment: , ANCA, ROLLOMATIC
Testing equipment: ZOLLER
3. Coating
| Coating | Color | Coating Temperature | Thickness (um) | HV | Application Temperature | Friction coefficient |
| TiAlN | Purple-Gray | <600°C | 3-5 | 3300 | 800 °C | 0.3 |
| AiTiN | Black | <600°C | 3-5 | 3500 | 900 °C | 0.3 |
| TiXco | Copper | <600°C | 3-5 | 3500 | 1500 °C | 0.4 |
| NaNo | Blue | <600°C | 3-5 | 3800 | 1200 °C | 0.4 |
| AiCrN | Silver Gray | <480 °C | 2-2.5 | 2500 | 700 °C | 0.3 |
Product size:
| Order No. | Flute dia (d) |
Cutting length ( L) |
Shank dia (D) | Overall length(L) |
| 1.0×2.5×4D×50L | 1 | 2.5 | 4 | 50 |
| 1.5×4×4D×50L | 1.5 | 4 | 4 | 50 |
| 2.0×5×4D×50L | 2 | 5 | 4 | 50 |
| 2.5×7×4D×50L | 2.5 | 7 | 4 | 50 |
| 3.0×8×4D×50L | 3 | 8 | 4 | 50 |
| 3.5×10×4D×50L | 3.5 | 10 | 4 | 50 |
| 4.0×10×4D×50L | 4 | 10 | 4 | 50 |
| 4.5×11×6D×50L | 4.5 | 11 | 6 | 50 |
| 5.0×13×6D×50L | 5 | 13 | 6 | 50 |
| 5.5×13×6D×50L | 5.5 | 13 | 6 | 50 |
| 6.0×15×6D×50L | 6 | 15 | 6 | 50 |
| 6.5×15×8D×60L | 6.5 | 15 | 8 | 60 |
| 7.0×17×8D×60L | 7 | 17 | 8 | 60 |
| 7.5×17×8D×60L | 7.5 | 17 | 8 | 60 |
| 8.0×20×8D×60L | 8 | 20 | 8 | 60 |
| 8.5×25×10D×75L | 8.5 | 25 | 10 | 75 |
| 9.0×25×10D×75L | 9 | 25 | 10 | 75 |
| 9.5×25×10D×75L | 9.5 | 25 | 10 | 75 |
| 10.0×25×12D×75L | 10 | 25 | 12 | 75 |
| 10.5×25×12D×75L | 10.5 | 25 | 12 | 75 |
| 11.0×28×12D×75L | 11 | 28 | 12 | 75 |
| 11.5×28×12D×75L | 11.5 | 28 | 12 | 75 |
| 12.0×30×12D×75L | 12 | 30 | 12 | 75 |
| 13.0×33×16D×100L | 13 | 33 | 16 | 100 |
| 14.0×40×16D×100L | 14 | 40 | 16 | 100 |
| 15.0×40×16D×100L | 15 | 40 | 16 | 100 |
| 16.0×40×16D×100L | 16 | 40 | 16 | 100 |
| 17.0×40×20D×100L | 17 | 40 | 20 | 100 |
| 18.0×40×20D×100L | 18 | 40 | 20 | 100 |
| 19.0×40×20D×100L | 19 | 40 | 20 | 100 |
| 20.0×40×20D×100L | 20 | 40 | 20 | 100 |
| 25.0×40×25D×100L | 25 | 40 | 25 | 100 |
Payment
T/T, Western Union, Paypal?(Choose your convenient way)
Shipment
FedEx, TNT, DHL, UPS, EMS, etc.
The port is Beijing, Shanghai, Guangzhou, Shenzhen, any port in China.(choose your convenient way)
Packing

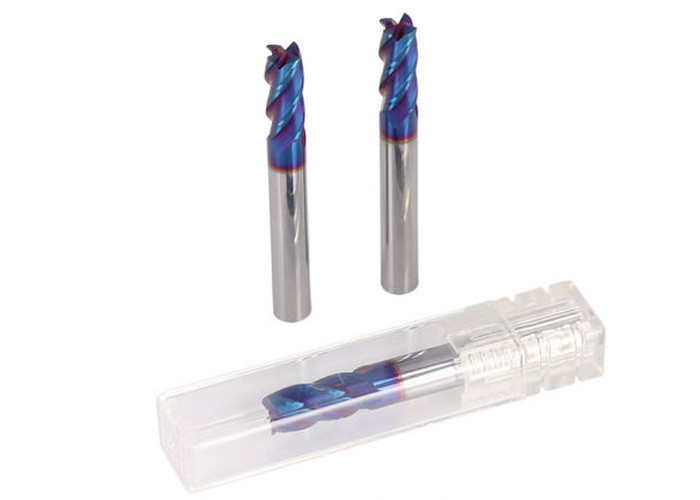

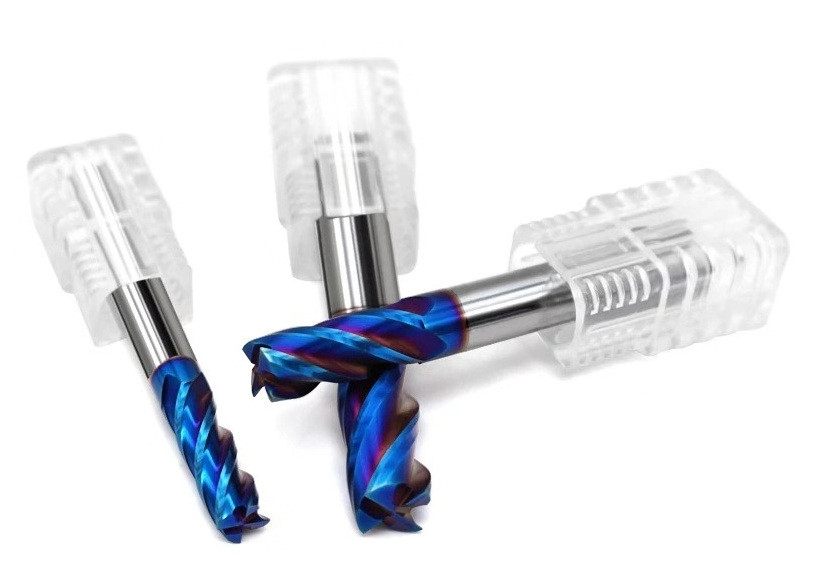

Laser print brand name on cutter shank, 1PCS in a plastic tube, 10 PCS per group
Delivery time
Keep stock for regular types
Samples: 3- 5 days
Regular orders: 7- 10 days
Grewin carbide waiting for your kindly reply
