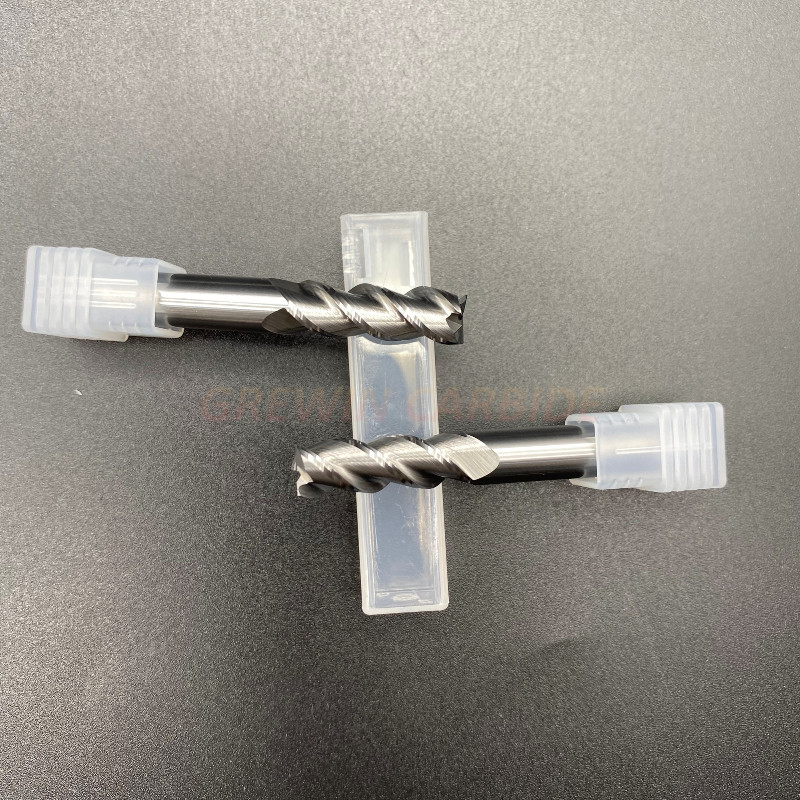

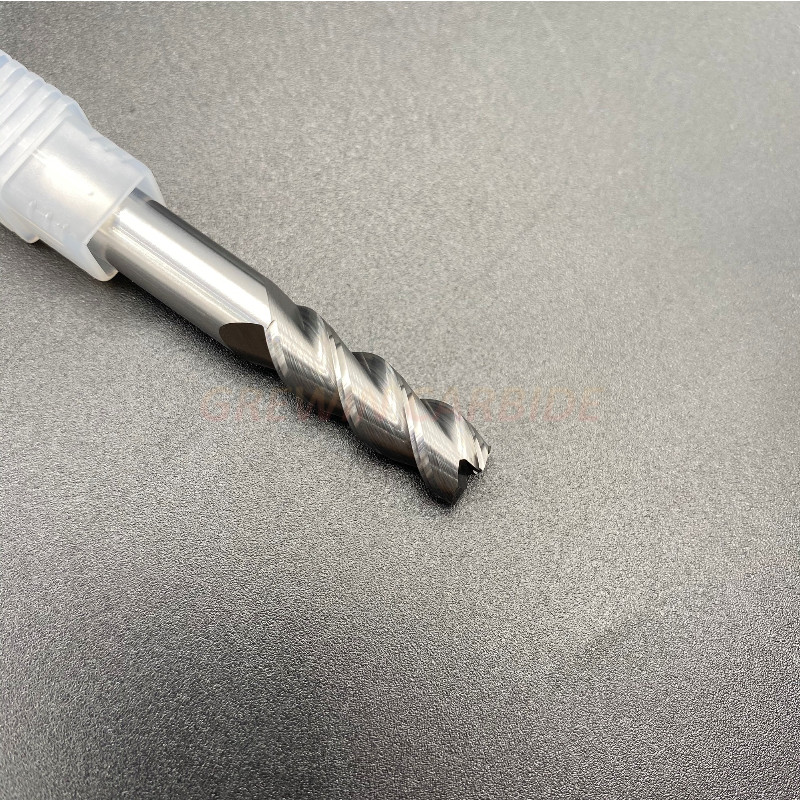

45HRC Solid Ceramic End Mills Single Flute Aluminum End Mill
10pcs
MOQ
negotiable
Price
45HRC Solid Ceramic End Mills Single Flute Aluminum End Mill
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: Zhuzhou--Carbide City
Brand Name: GREWIN
Certification: ISO9001, SGS
Model Number: As your requirements
High Light:

45HRC Solid Ceramic End Mills

,

ISO9001 Solid Ceramic End Mills

,

Single Flute Aluminum End Mill

Payment & Shipping Terms
Packaging Details: 1PCS in a plastic tube, 10 PCS per group
Delivery Time: 15-25 work days
Payment Terms: T/T, PAYPAL, WESTERN UNION
Supply Ability: 50000pcs/Month
Specifications
Coating: Without/Diamond
HRC: 45-65
Flute: One
Express: DHL, TNT, FedEX, EMS And So On
Delivery: 7-10 Days
Usage: Acrylic, Wood, Aluminum
Product Description

Tungsten Carbide Single Flute End Mill for Aluminum
1. Innovative new geometries designed in conjunction. The benefit is a range of state-of-the-art carbide cutting tools with superior performance.
2. Sub-micron carbide grade of origin.
3. Optimal flute geometry delivers maximum metal removal rates and better chip evacuation.
4. Effective in a full range of machine speeds.
5. Only one tool is needed for use in roughing and finishing operations.
6. Can take deeper and wider cuts - axial and radial.
7. Shank tolerances to h6.
8. Reinforced corner by extra positive dubbing for long tool life.
9. Centre cutting with drilling possibility.
10. Designed to works standard over the 1mm to 20mm diameter range.
11. Multiple corner radii and extended neck configurations are available to maximise metal removal rates.


Process introduction:
1. Surface TiSiN Coated
2. Strength2500-4000N/mm2 Controling Mode CNC
3. UsageMetal Chemical Composition Co 6%-12% -WC
4. Density14.45-14.90g/cm3
5. Chemical Composition: 10%Co-Wc
6. Raw Material: Super Micro grain with Diameter less than 0.2UM
7. International Industrial Standard: K10, K05-K15, K20-K30, K20-K40
8. Application areas: Machining of cast iron, nonferrous alloy,chill cast iron,hard steel,stainless steel,plastic materials,fiberglass,carbon fiber and other non-metallic.

Products Detail:

Carbide Lathe Tool Spiral Single One Flute End Mill Milling Cutter Cutting Tools for Plastic Wood Aluminium



Shank diameter*blade diameter*angle*total length Shank diameter Angle° Total length
Blade diameter
3.175*0.1*30° 3.175 30 30
3.175*0.2*30° 3.175 30 30
3.175*0.3*30° 3.175 30 30
3.175*0.4*30° 3.175 30 30
3.175*0.5*30° 3.175 30 30
3.175*0.1*30°*38 3.175 30 30
3.175*0.2*30°*38 3.175 30 38
3.175*0.3*30°*38 3.175 30 38
4*0.1*30°*40 4 30 42
4*0.2*30°*40 4 30 42
4*0.3*30°*40 4 30 42
4*0.4*30°*40 4 30 42
4*0.2*30°*45 4 30 45
4*0.4*30°*45 4 30 45
6*0.4*30°*45 6 30 45
6*0.4*30°*50 6 30 50
6*0.4*30°*55 6 30 55
6*0.4*30°*60 6 30 60
6*0.4*30°*70 6 30 70
6*0.4*30°*80 6 30 80
6*0.4*30°*100 6 30 100
8*0.4*30°*50 8 30 50
8*0.4*30°*60 8 30 60
8*0.4*30°*70 8 30 70
8*0.4*30°*80 8 30 80
45HRC Solid Ceramic End Mills Single Flute Aluminum End Mill 145HRC Solid Ceramic End Mills Single Flute Aluminum End Mill 2
