Application
Suitable for Copper, Cast Iron, Carbon steel, Tool steel, Mould steel, Die steel, Stainless steel, Plastic, Arcylic,etc.
Coating
TiSiN TiAlN AlTiN TiCN or Blue Nano
| Item | AlTiN | TiAiN | TiSiN | nAcO |
| Hardness(HV) | 3200 | 2800 | 3600 | 42(GPA) |
| Thickness(UM) | 2.5-3 | 2.5-3 | 3 | 3 |
| Oxidation Temp( ° ) | 900 | 800 | 1000 | 1200 |
| Friction | 0.3 | 0.3 | 0.45 | 0.4 |
| Color | Black | Violet | Copper | Blue |
Advantages
1. Solid carbide reamers, we can make different types of machine reamers, usually 2-8 flutes, the delivery time for non-standard customized reamers is just 15 days.
2. Carbide reamers are made from different grade of material:
HRC45 machine reamer, YG25material, high precision, with 2-8 flutes. Suit for cast iron, carbon steel
HRC55 machine reamer, YL10.2, high precision, with 2-8 flutes, suit for carbon steel, alloy steel.
HRC60 machine reamers, Kennametal2210, high precision, with 2-8 flutes, suit for copper alloy, stainless steel.
HRC65 machine reamer, Germany AF, high precision, with 2-8 flutes, suit for hard metal.
3. We can supply different types of machine reamers, also we can make the boring reamers according your drawing and samples.
4. Depth of cut: This is how deep the tool is under the surface of the material being cut (not shown on the diagram). This will be the height of the chip produced. Typically, the depth of cut will be less than or equal to the diameter of the cutting tool.
Grade
| Grade | Hardness HRA(hv) | Giain size | T.R.S(M Pa) |
Performances &applications recommended |
| YG25 | 90-91 | 0.7um | 2500-2800 | Good Wear resistance,shuit for processing hard wood ,cost iron ,copper ,A3 steel |
| YL10.2 | 91-91.5 | 0.6um | >3800 | Suit for processing Die Steel,aluminum alloy,stainless steel,cat iron ,copper |
| Kennametal 2210 | 91.5 | 0.5um | >4300 | Suit for processing Hardneed steel ,hardneed stainless steel ,heat treated material |
| Germany AF K34 | 94 | 0.4um | 5000-6000 | good grain size ,Fine carbide,high wear resistance,high bending strength,suit for fishing processing |

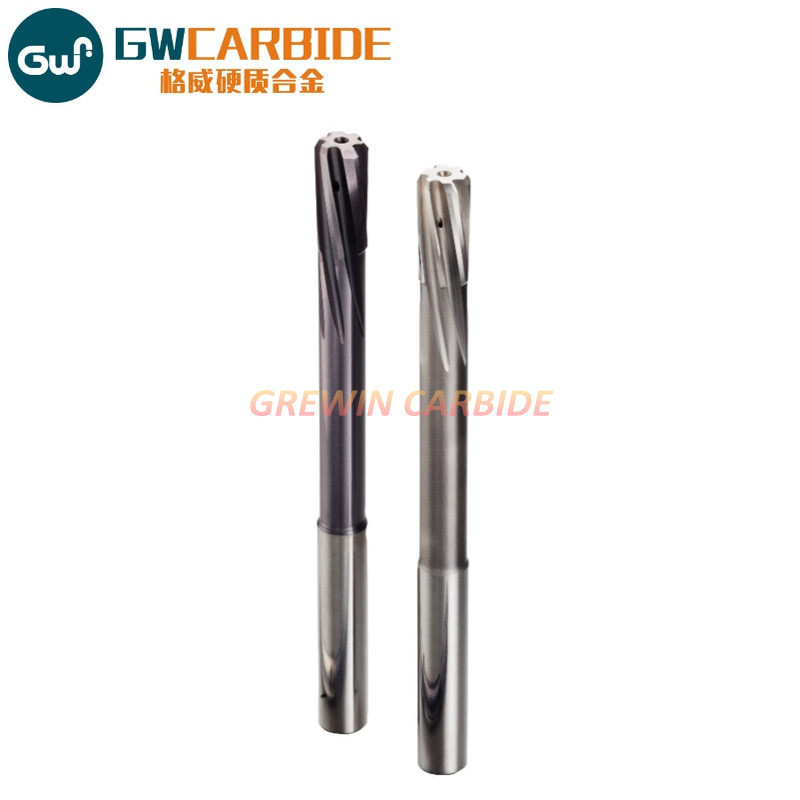

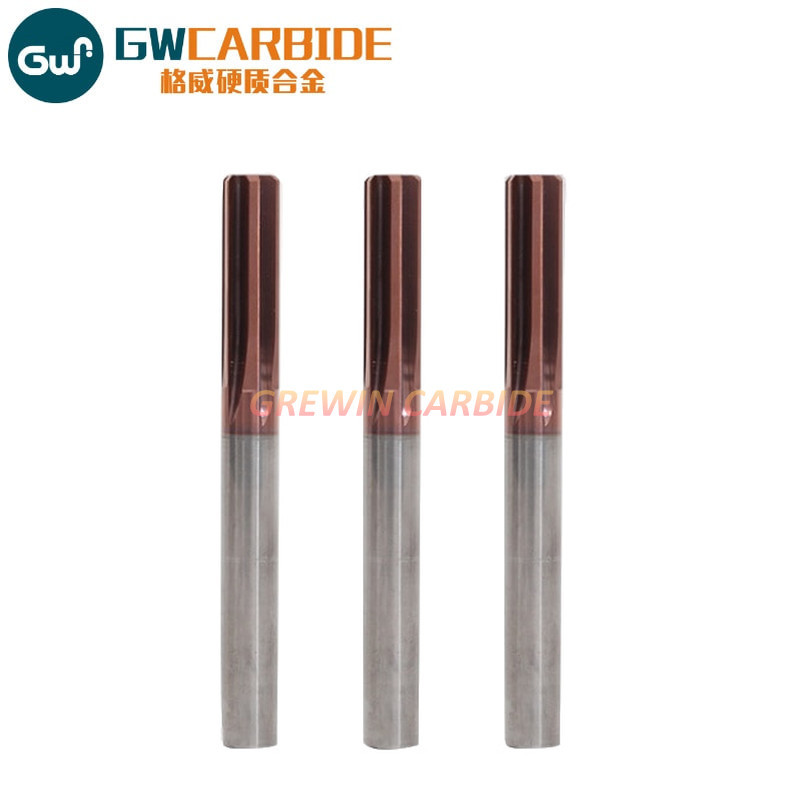

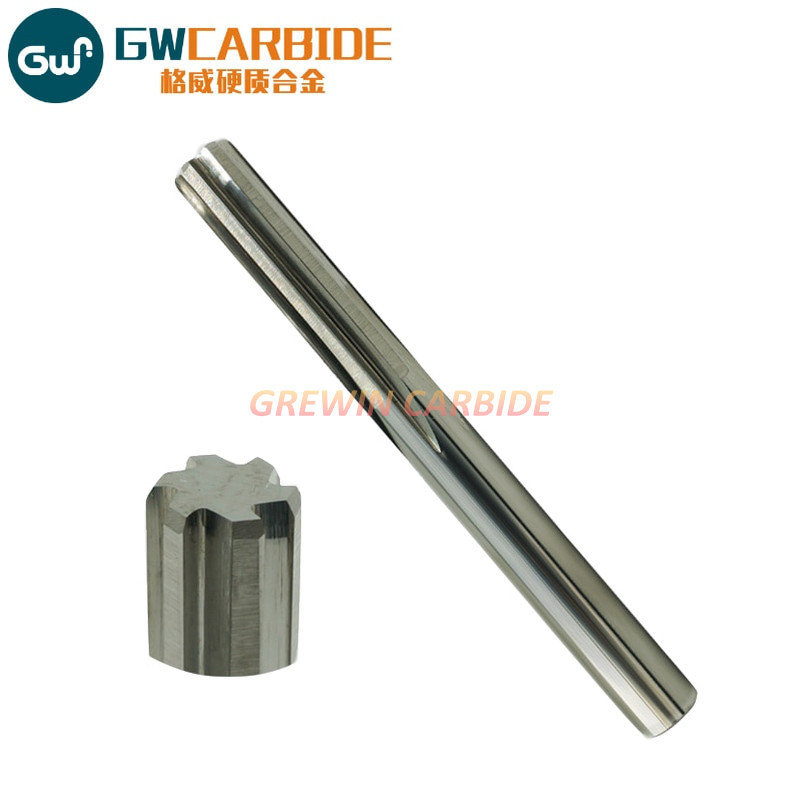

Product Show:
Grewin carbide waiting for your kindly inquiry.
