Tungsten Solid Carbide Flat End Mill 4 Flutes HRC66 Black Nano Coated Square End Mill
10pcs
MOQ
negotiable
Price
Tungsten Solid Carbide Flat End Mill 4 Flutes HRC66 Black Nano Coated Square End Mill
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China
Brand Name: OEM
Certification: ISO9001, SGS
Model Number: square end mill
Payment & Shipping Terms
Packaging Details: 1PCS in a plastic tube, 10 PCS per group
Delivery Time: 7-10 work days
Payment Terms: T/T, PAYPAL, WESTERN UNION
Supply Ability: 50000pcs/Month
Specifications
Product Name: HRC66 4F Flat End Mill
Machine Type: WALTER/ROLLOMATIC/ANCA
Testing Equipment: ZOLLER
Workpiece Material: Steel , Cast Iron , Aluminum , Copper , Plastic , SS , HSS , Etc.
Cutting Form: Flat
Controlling Mode: CNC Tooling System
Precision: 0.005-0.01mm
Coating: Nano
Flutes: 4
Type: End Mill, 2 Flutes Flatten End Mill
Overall Length: 50-150mm
Diameter: 1-20mm
Hrc: 66
Product Description

Tungsten Solid Carbide Flat End Mill 4 Flutes HRC66 Black Nano Coated



HRC65 4Flutes Flat Solid carbide end mils

Materials Solid Carbide
Brand GREWIN
Coating Copper coating
Flute 4 flutes
Hardness HRC66
Spiral Angle 35°

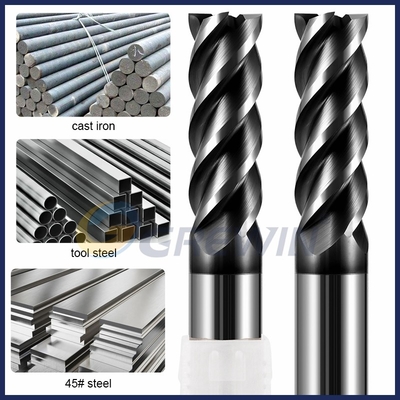

Materials to be cut 45# steel, cast lron, tool steel and mould steel within HRC66
Machine to be used CNC machining centers, engraving machines and other high-speed CNC millina machines






Features



1. GOOD WEA R RESISTANCE, LONG WORKING LIFE, NANO COATING

Made with Anka machine tools and German technology, it can perform finishing and semi-finishing on heat-treated materials below 55 degrees, enhance tool life, reduce the number of roundabouts, and provide machine tool operation.



2. BIG DIAMETER DESIGN , SHARP CHIP REMOVAL

The unique helix angle is ground by first-class precision machine tools. The large core diameter design enhances rigidity and shock resistance .The large chip removal space is not easy to accumulate chips, and is not easy to break. It is sharp and wear-resistant, cutting smoothly, and improving milling efficiency.



3. WITH PASSIVATION TREATMENT, DURABLE AND ANTI-CORROSION

Imported passivation equipment, finely densified sand, increases the corrosion resistance and wear resistance of the end mill. Good grinding makes the cutting edge without chips. It can Extended the working life.



Sharp Cutting Edge

Improve the effective

Hard and long working life

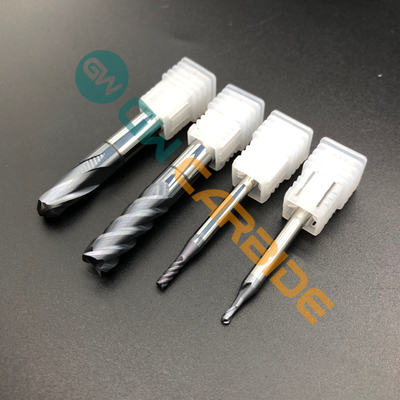

Tungsten Solid Carbide Flat End Mill 4 Flutes HRC66 Black Nano Coated Square End Mill 0

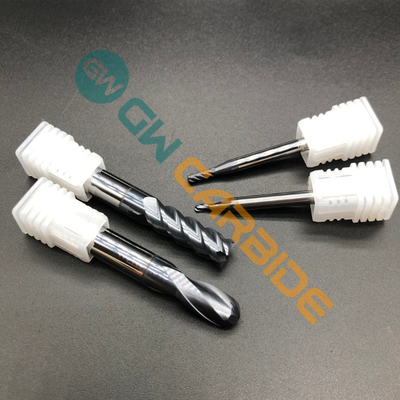

Tungsten Solid Carbide Flat End Mill 4 Flutes HRC66 Black Nano Coated Square End Mill 1Tungsten Solid Carbide Flat End Mill 4 Flutes HRC66 Black Nano Coated Square End Mill 2



1. Chemical Composition: 10%-12%Co-WC,100% raw material.
2. Physical and Machinal properties: Density: 14.40-14.65g/cm3 Hardness: HRA91.8-92.5 TRS> 3600N/mm2, Helix angle 30°-45 °.
3, Diameter of cutting edge 0.2-0.9 mm; 1-20 mm
4, Organizational Structure: WC mean grain size: 0.4-0.6um
5. Corresponds to International Standards: K20-K30, K20-K40
6, Suitable for: Machining of cast iron, nonferrous alloy, nonferrous metals, fireproof alloy, Titanium alloy, alloy steel, carbon steel and other non-metallic. It has suitable for finishing processing the grooves and side. Meanwhile, it can be processing in high speed and high efficiency which the material HRC>60

Introduction of the carbide materials of the End mill

Carbide Grade Technical Details of tungsten carbide rod
10U Co:10% WC 89% rare element: 1% HRA: 90.5°Grain Size: 0.75um
12U Co:12% WC 85% rare element: 3% HRA: 92.5°Grain Size: 0.4um
K40 Co:12% WC 84% rare element: 4% HRA: 93°Grain Size: 0.4um
K44 Co:12% WC 84% rare element: 4% HRA: 93.5°Grain Size: 0.4um


The materials to be cut

Carbide Grade HRC of End mill Materials to be cut
10U HRC45-50 For cutting the materials under HRC35
12U HRC55-58 For cutting the materials under HRC50
K40 HRC60-62 For cutting the materials under HRC55
K44 HRC65-70 For cutting the materials under HRC63


Corresponding Coating

Carbide Grade HRC of End mill Corresponding Coating
10U HRC45-50 AlTiN
12U HRC55-58 TiAlN
K40 HRC60-62 TiSlN
K44 HRC65-70 Nano


Introduction of carbide materials of the End mill

  AlTiN TiAlN TiSlN Nano
Hardness(HV) 3200 2800 3600 42(GPA)
Thickness(UM) 2.5-3 2.5-3 3 3
Oxidation Temp(°) 900 800 1000 1200
Friction Coefficient 0.3 0.3 0.45 0.4
Color Black Violet Copper Blue

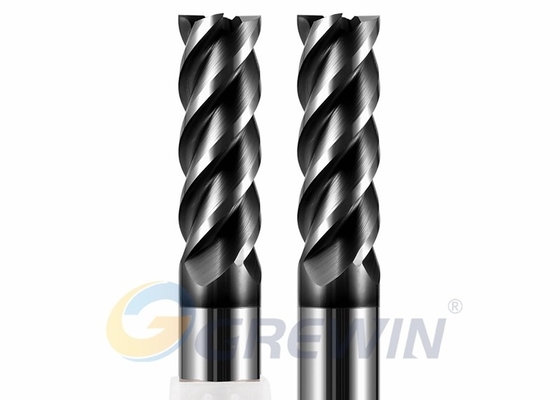

Tungsten Solid Carbide Flat End Mill 4 Flutes HRC66 Black Nano Coated Square End Mill 3

INSTRUCTIONS FOR USE

01. Before using the tool, please measure the tool deflection. If the tool deflection accuracy exceeds 0.01mm, please correct it before cutting.

02. The shorter the length of the end mill sticking out of the chuck, the better.If the end mill sticks out for a long time, it is necessary to reduce the rotational speed, feed rate or cutting amount.

03. During cutting, if abnormal vibration or sound occurs, please reduce the cutting speed and the cutting feed rate until the situation improves.

04. The steel cooling is preferably spray and air jet, which can effectively improve the use effect of the milling cutter.





WARMLY TIPS


01 Properly reducing the cutting speed and feed rate can prolong the trial life of the milling cutter.

02 When working, it is necessary to add cutting fluid to protect the cutting edge, which makes the cutting smoother.

03 When there is an oxide film or other hardened layer remaining on the surface of the work-piece, it can be removed by reversible milling.
