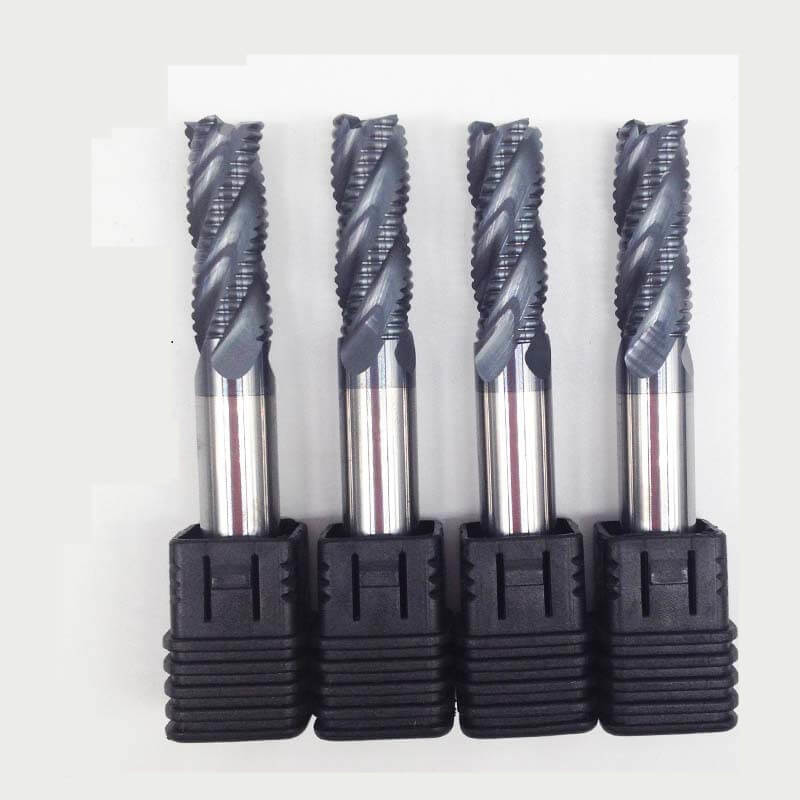

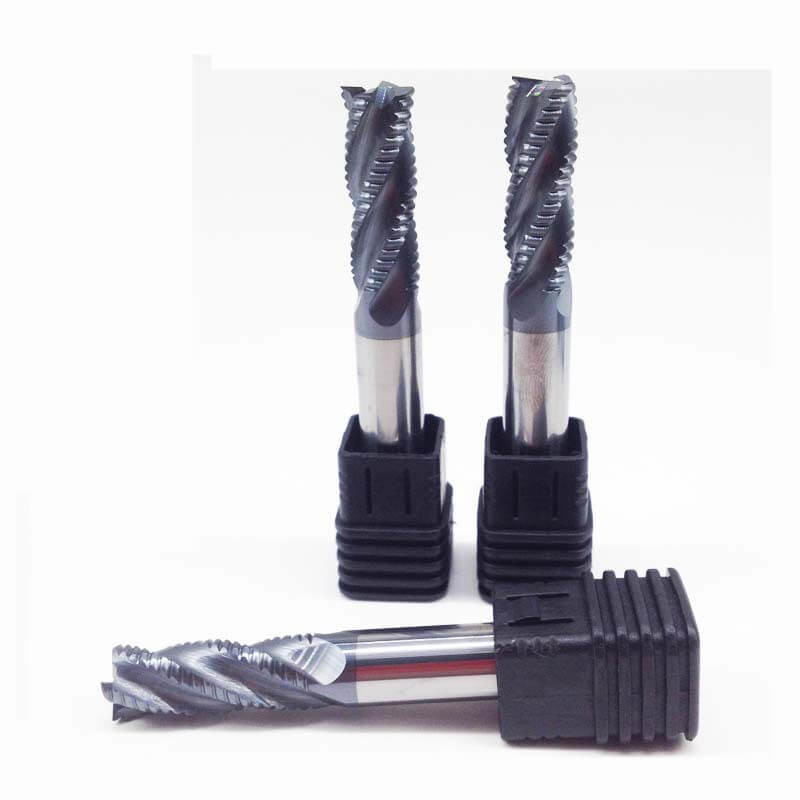

Carbide Roughing End Mills with 3/4 Flutes, Coating For Metal Milling
4 flutes Flat End Mill
Code No.
|
Diamter d |
Cutting length l |
Total length L |
Shank D |
Flutes Z |
4GW1-01003050 | 1 | 3 | 50 | 4 | 4 |
4GW1-01504050 | 1.5 | 4 | 50 | 4 | 4 |
4GW1-02050500 | 2 | 5 | 50 | 4 | 4 |
4GW1-02507050 | 2.5 | 7 | 50 | 4 | 4 |
4GW1-03008050 | 3 | 8 | 50 | 4 | 4 |
4GW1-04010050 | 4 | 10 | 50 | 4 | 4 |
4GW1-04015075 | 4 | 15 | 75 | 4 | 4 |
4GW1-04020100 | 4 | 20 | 100 | 4 | 4 |
4GW1-05013050 | 5 | 13 | 50 | 6 | 4 |
4GW1-06015050 | 6 | 15 | 50 | 6 | 4 |
4GW1-06020075 | 6 | 20 | 75 | 6 | 4 |
4GW1-06030100 | 6 | 30 | 100 | 6 | 4 |
4GW1-06020060 | 8 | 20 | 60 | 8 | 4 |
4GW1-08025075 | 8 | 25 | 75 | 8 | 4 |
4GW1-08035100 | 8 | 35 | 100 | 8 | 4 |
4GW1-010025075 | 10 | 25 | 75 | 10 | 4 |
4GW1-010040100 | 10 | 40 | 100 | 10 | 4 |
4GW1-012030075 | 12 | 30 | 75 | 12 | 4 |
4GW1-012040100 | 12 | 40 | 100 | 12 | 4 |
4GW1-014030080 | 14 | 30 | 80 | 14 | 4 |
4GW1-014100100 | 14 | 40 | 100 | 14 | 4 |
4GW1-016040100 | 16 | 40 | 100 | 16 | 4 |
4GW1-018040100 | 18 | 40 | 100 | 18 | 4 |
4GW1-020040100 | 20 | 40 | 100 | 20 | 4 |
4GW1-06040150 | 6 | 40 | 150 | 6 | 4 |
4GW1-08050150 | 8 | 50 | 150 | 8 | 4 |
4GW1-010050150 | 10 | 50 | 150 | 10 | 4 |
4GW1-012050150 | 12 | 50 | 150 | 12 | 4 |
4GW1-014060150 | 14 | 60 | 150 | 14 | 4 |
4GW1-016060150 | 16 | 60 | 150 | 16 | 4 |
4GW1-018060150 | 18 | 60 | 150 | 18 | 4 |
4GW1-020060150 | 20 | 60 | 150 | 20 | 4 |
HRC choice: HRC38-45, HRC45-50, HRC55-58, HRC60-62, HRC65-70
Coating choice: AITiN, AICrSiN, AITiCrSIN, TiSiN, NACO-BLUE
Materials to be cut: original steel, cast iron, Aluminum, copper, graphite, plastics,
Titanium , alloy, harden steel, stainless steel, HSS etc
Introduction of carbide materials of the End mill
AlTiN | TiAlN | TiSlN | Nano | |
Hardness(HV) | 3200 | 2800 | 3600 | 42(GPA) |
Thickness(UM) | 2.5-3 | 2.5-3 | 3 | 3 |
Oxidation Temp(°) | 900 | 800 | 1000 | 1200 |
Friction Coefficient | 0.3 | 0.3 | 0.45 | 0.4 |
Color | Black | Violet | Copper |
Blue |
Advanced automatic CNC grinding machine and testing equipment, such as
We established the fabrication facilities by " " CNC Grinding Machines which supports us serve for more precision product to customers.
Imported 16 sets 5-AXIS CNC machine :
2 sets " HP" from Germany, specializing in manufacture large diameter tools;
1 set " Micro"from Germany,specializing in manufacture Micro diameter tools;
2 sets Schutte Wu 305 Linear from German;
2 sest Star PTG6 from USA;
2 set "Rollomatic GrindSmart628XS" high precision grinding machine from Switzerland;
1 set Rollomatic NP5 from Switzerland.
1 set URMA digiset 3 tool measuring equipment from Switzerland;
2 sets PG 1000 tool measuring equipment testing the point of drill bit from USA;
1 set Mitutoyo Laser Scan Micrometer Equipment.
